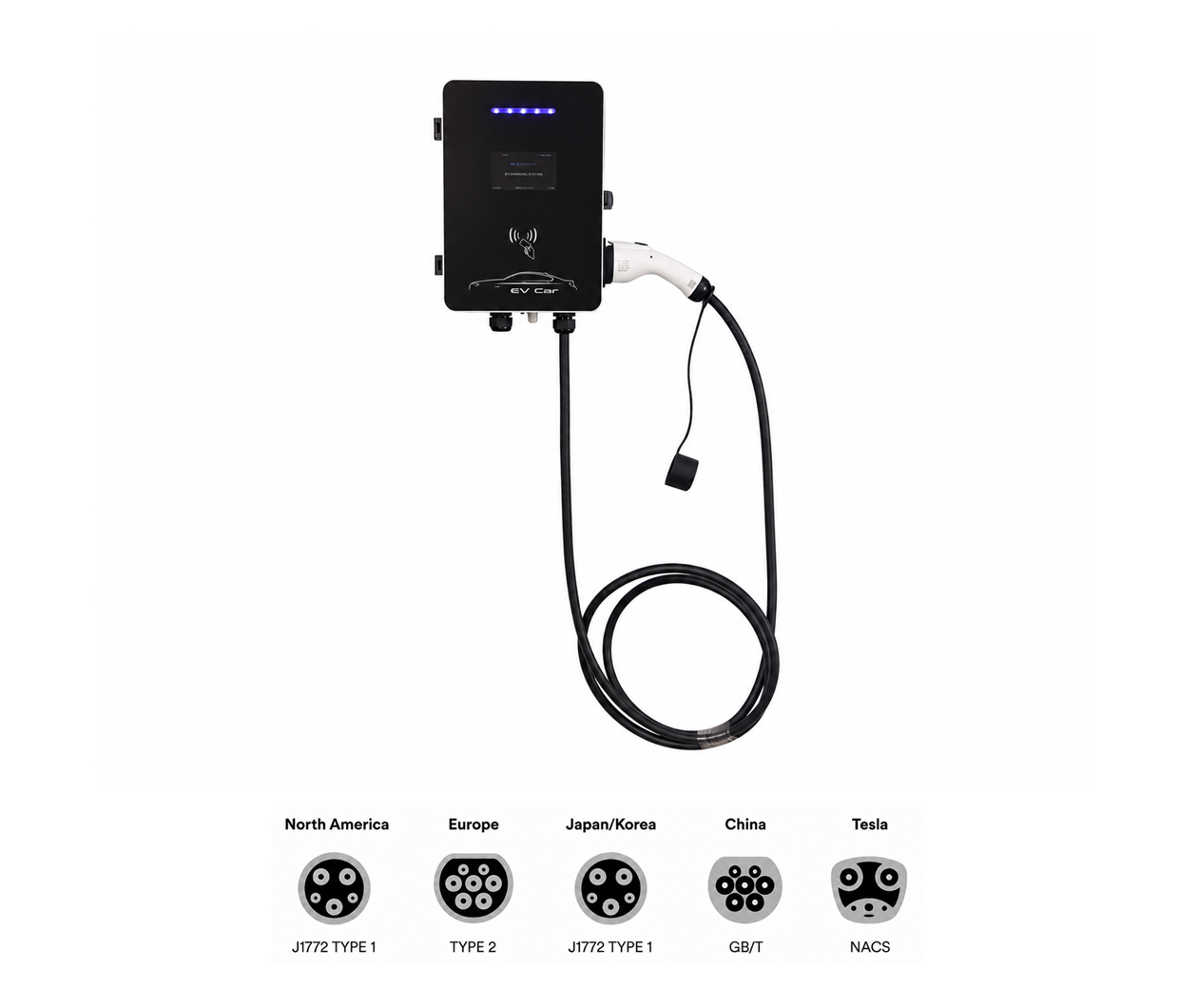

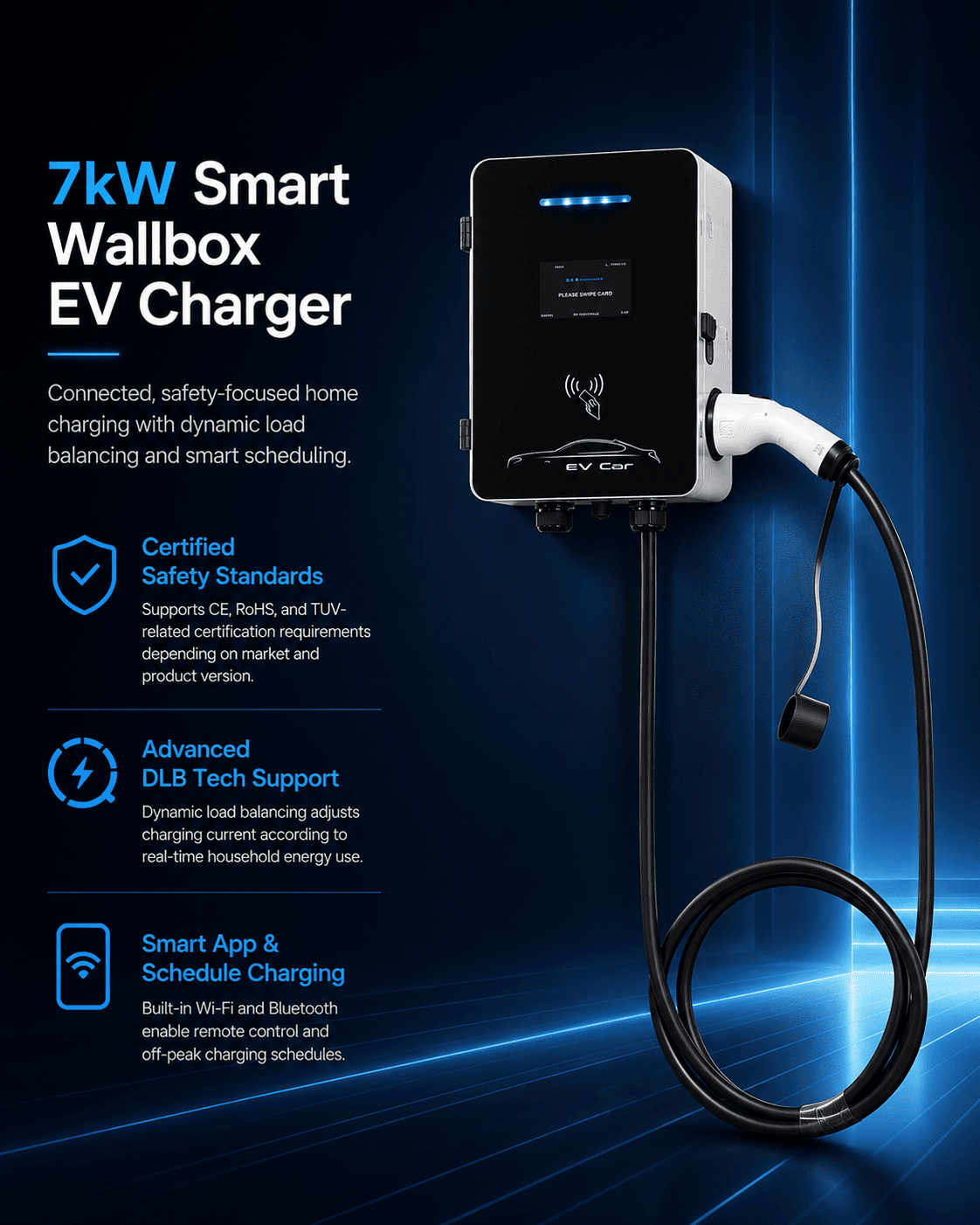

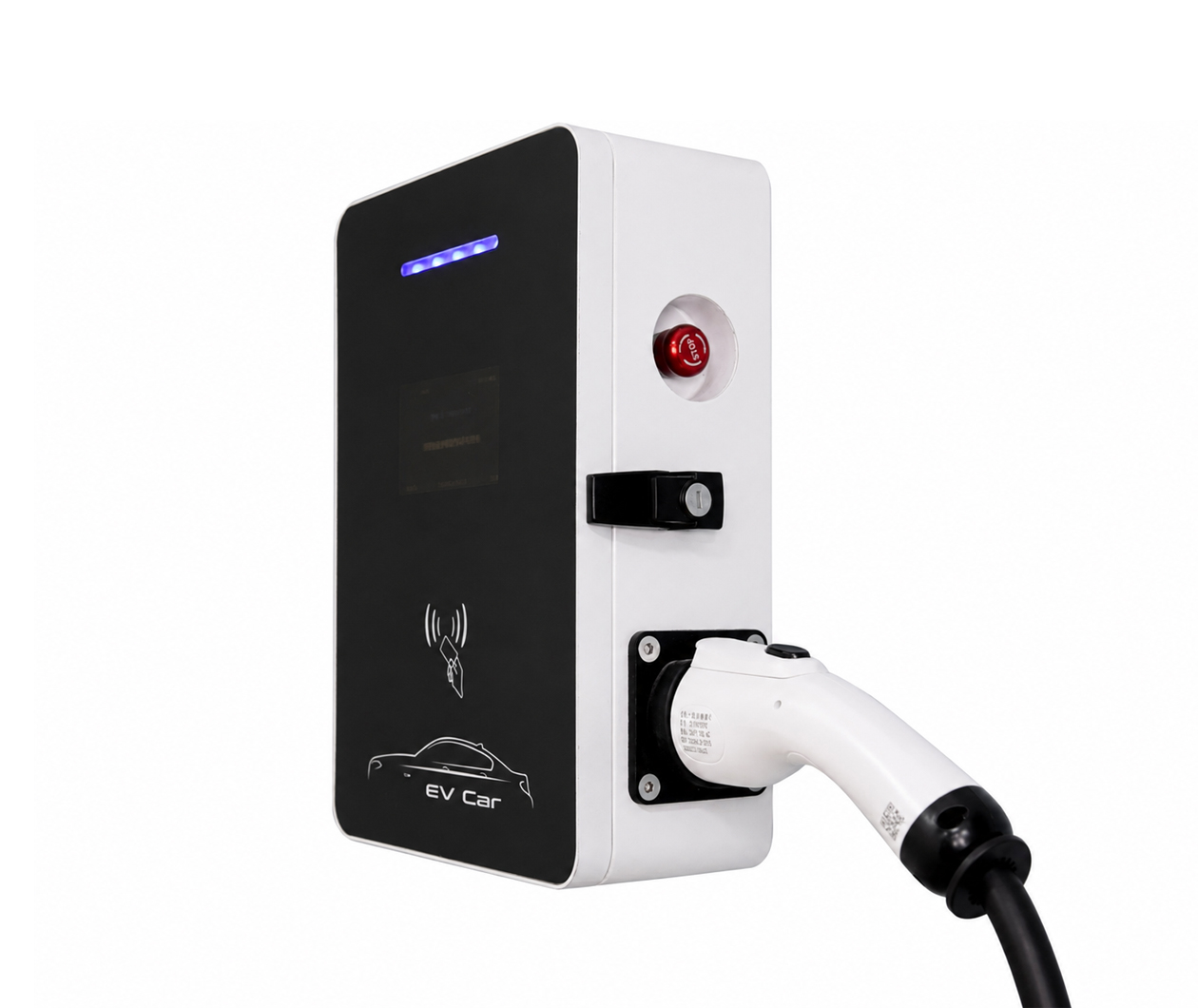

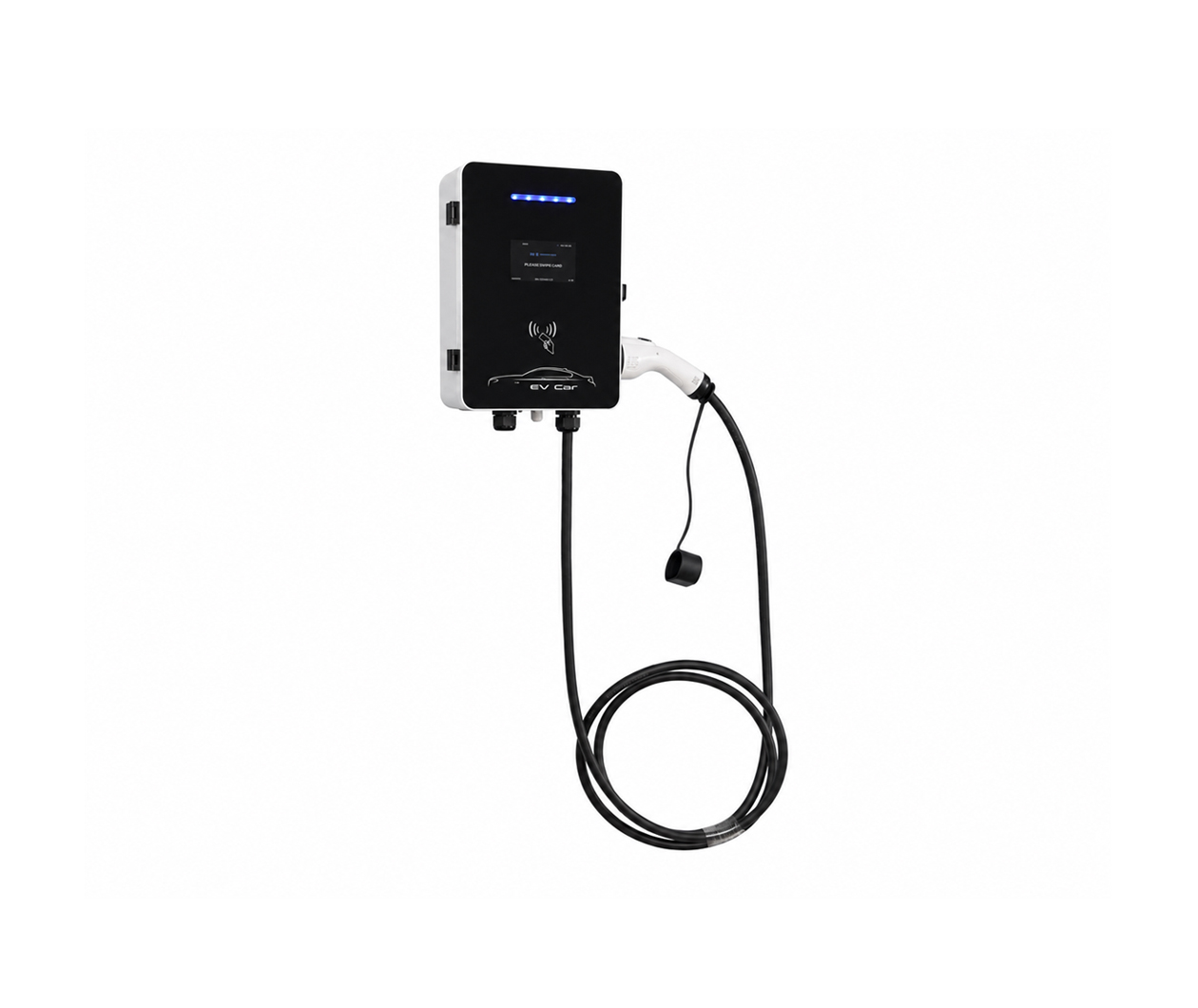

7kW Wallbox EV Charger | 32A Wall-Mounted Smart EVSE Charging Station
Description
This 7kW wallbox EV charger provides up to 32A AC charging for private garages, apartment parking spaces and residential properties. Its compact wall-mounted design supports convenient daily charging while keeping the parking area organized.
Depending on the selected configuration, the charger can support mobile app control, RFID card access, scheduled charging and dynamic load balancing. These smart functions help users monitor charging and coordinate charging demand with the available household electrical capacity.
Why Choose This 7kW Wallbox?
This EV charger is designed for customers who need faster daily charging, intelligent energy management, and safer operation in indoor or outdoor home environments.
Faster Home Charging
Up to 7kW / 32A charging, significantly faster than standard portable chargers.
Smart App Control
Monitor charging, adjust settings, and schedule charging through a mobile app.
Dynamic Load Balancing
Automatically adapts charging current based on household electricity usage.
Multi-Mode Activation
Supports app control, RFID card activation, and plug-and-play operation.
Outdoor-Ready Protection
Designed for demanding indoor and outdoor installation conditions.
Smart & Clean Installation
Wall-mounted design with organized cable management for a tidy charging area.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Power | 7kW |
| Input Voltage | AC 220V±20%; L+N+PE |
| Output Voltage | AC 220V±20% |
| Output Current | 32A |
| Input Frequency | 50 ±10Hz |
| Current Limit Protection Value | ≥110% |
| Electrical Indicators | ≥11 |
| Metering Accuracy | 1.0 Level |
| HMI | 4.3 Inch touch screen, LED indicator strip |
| Charging Mode | Automatic charging full / Fixed power / Fixed Amount / Fixed time |
| Charging Method | Swipe Card / Scan code/Plug and charge |
| Mode Of Payment | Credit card / Scan code |
| Operation Mode | Offline no billing, offline billing, online billing |
| Networking Method | Ethernet, 4G |
| Communication Protocol | OCPP 1.6J |
| Dynamic Load Balancing | Supported |
| Operative Norm | IEC 62196-2:2016；IEC61851-1:2017 |
| Working Temperature | -20℃~+50℃ |
| Working Humidity | 5%~95% non-condensing frost |
| Ingress Protection | IP54 |
| Cooling Method | Natural air cooling |
| Noisy Control | ≤40dB |
| MTBF | 30,000hours |
| Installation Method | Wall mounted |
| Feeding Method | Bottom in and bottom out |
| Equipment Dimension | 340*240*110 mm |
| Equipment Weight | 16 KGS |
| Cable Length | 5m ( Optional ) |

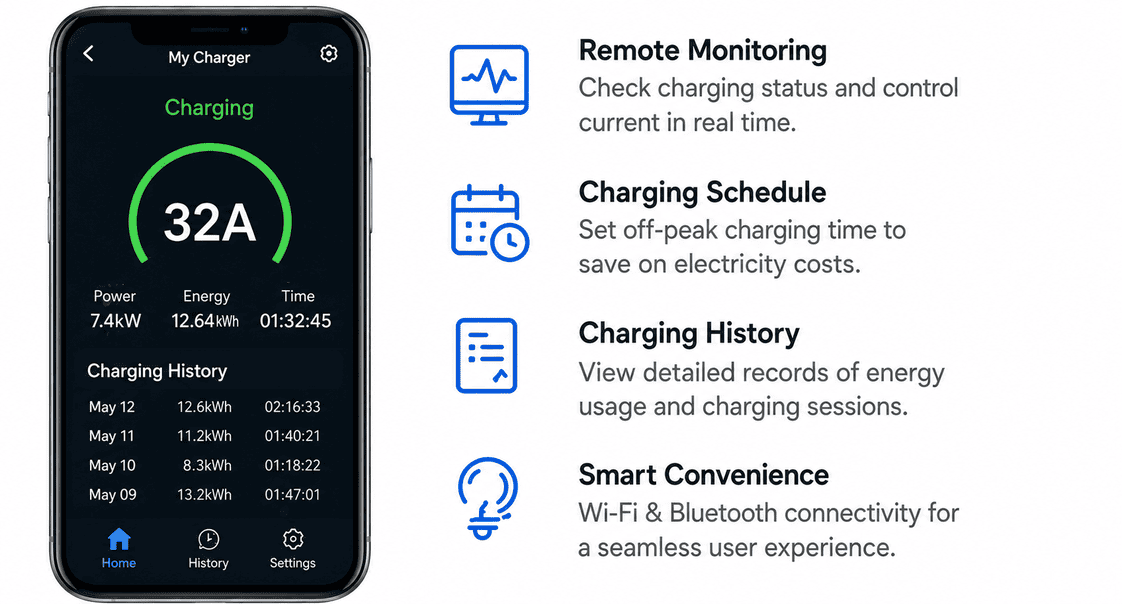

Smart App Control and Cost-Saving Scheduled Charging
The built-in app function helps users charge more intelligently, monitor charging remotely, and take advantage of lower electricity tariffs during off-peak hours.
Flexible Activation Modes for Different Use Scenarios
The charger supports multiple charging start modes, making it suitable for both private home use and semi-public parking environments.
RFID Card Activation
Ideal for outdoor shared parking spaces or semi-open residential environments. Only authorized users can activate charging, helping prevent unauthorized use.
App Control
Convenient for smart home users who prefer starting and managing charging sessions through their phone.
Plug & Play
Perfect for private family garages where the vehicle can begin charging immediately after plugging in.
Certified Safety and Built-In Electrical Protection
The 7kW wallbox EV charger must combine certified product quality with strong electrical protection features for safer daily charging.
Complete Package for Hassle-Free Installation
A complete accessory package helps installers finish the job more efficiently and improves the end user’s experience after delivery.
- Wall mounted type AC charging station (1 set)
- Installation instructions (1 set)
- 1 piece of certificate of quality
- Mounting brackets (2 pieces)
- Mounting screws (1 pack)
- Key (2 pieces)
Contact HB Charger for 7kW wallbox EV charger specifications, customization options and project pricing.
FAQs
Are you a direct manufacturer or a trading company?
We are a certified, direct industrial manufacturer based in Wuxi, China. We own and operate our state-of-the-art production lines, allowing us to supply high-quality equipment directly to international buyers with factory-direct pricing, strict quality control, and full OEM/ODM customization capabilities.
Can we customize the logos, colors, and technical specifications for our brand?
Absolutely. We provide comprehensive OEM and ODM services for global distributors and EPC contractors. You can customize the exterior enclosure branding (logo, colors, paint finishes), connector configurations, voltage profiles, and firmware communication protocols to strictly match your local market compliance.
What is the typical lead time and shipping method for bulk industrial orders?
The standard production lead time ranges from 15 to 35 days, depending on the order volume and technical customization depth. Due to the heavy-duty industrial nature and weight, we primary ship via sea freight (FOB/CIF) to global destination ports.
