7kW EV Charger Wallbox with Pedestal Mount Option | 32A Smart EVSE
Description

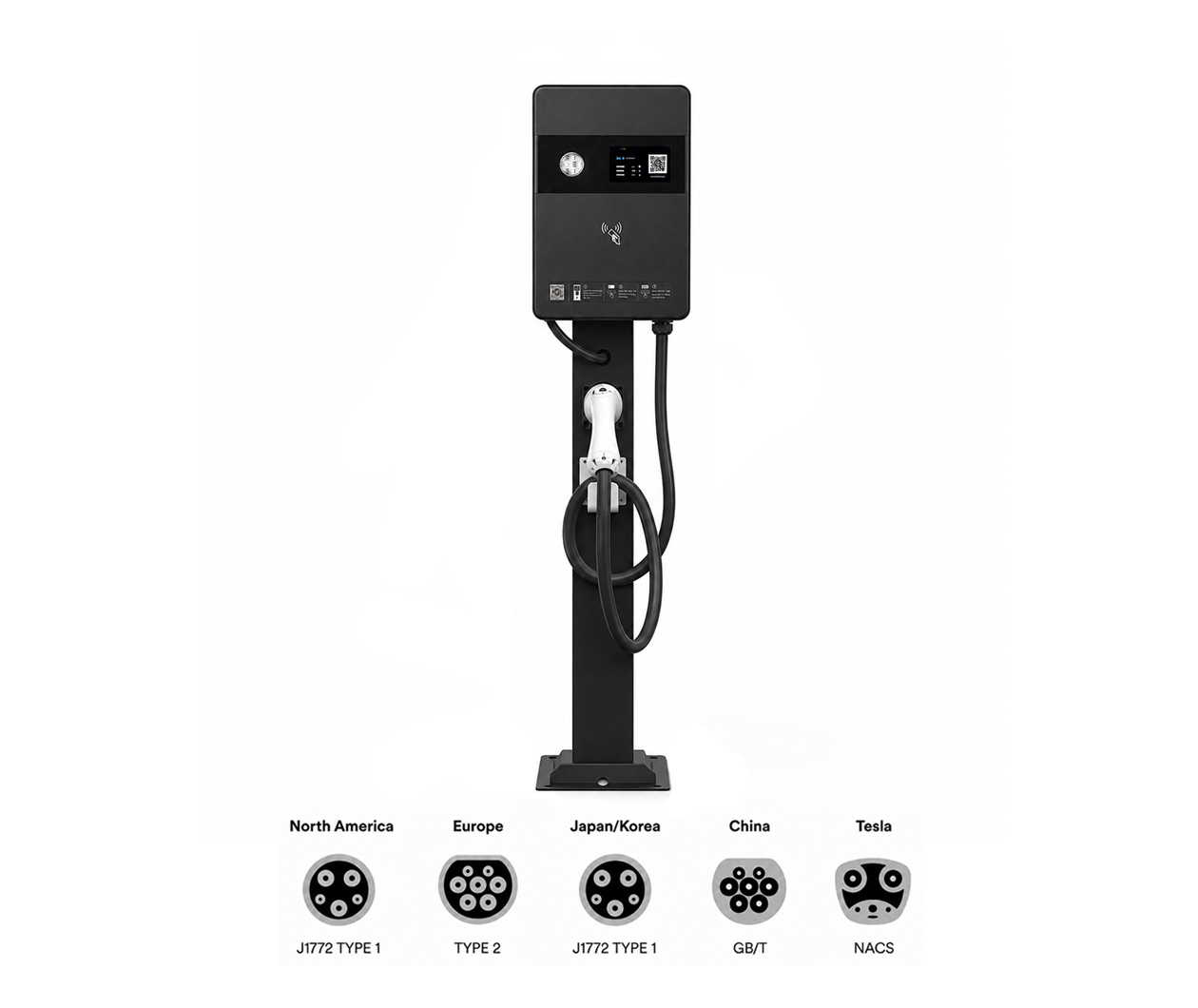

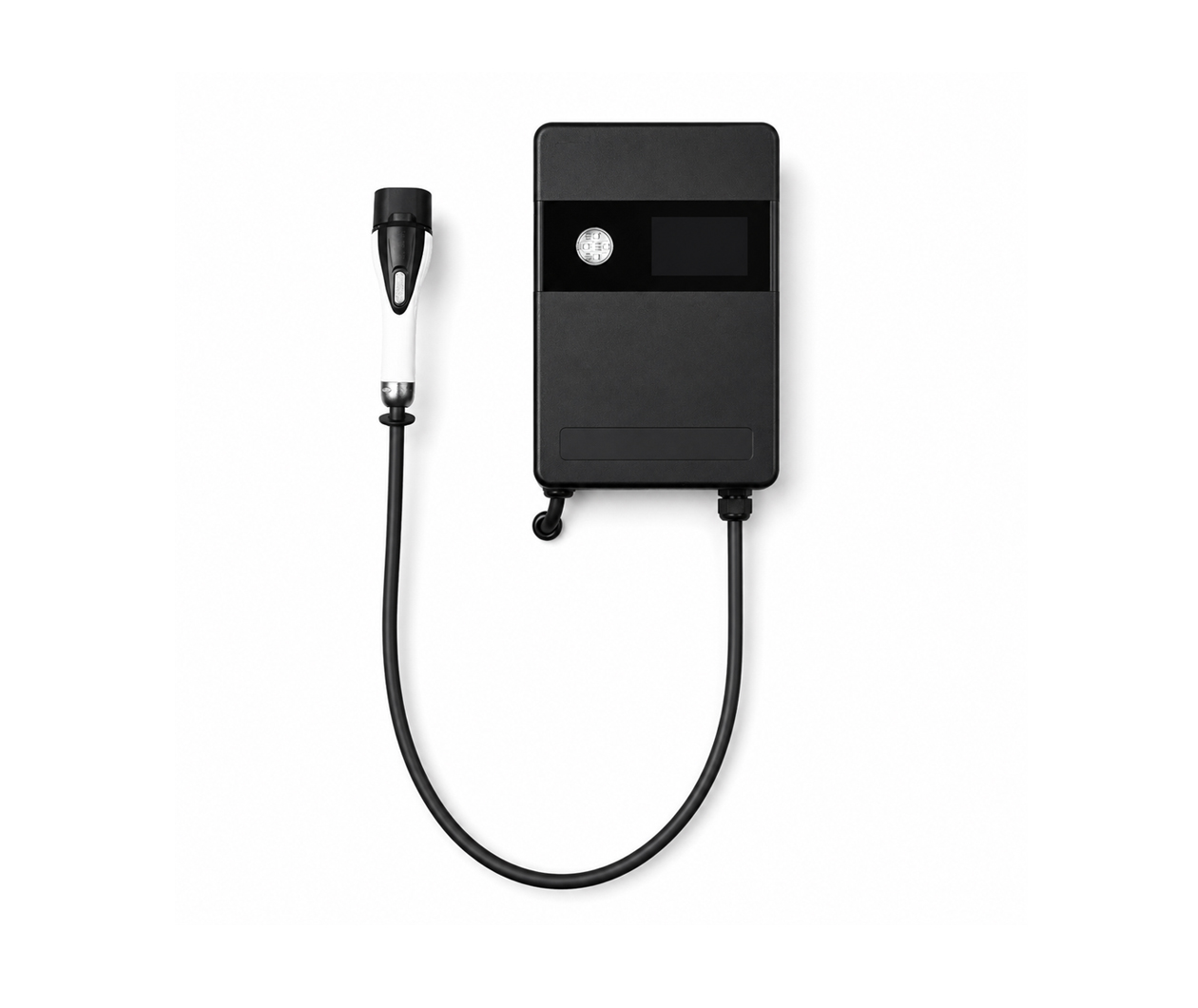

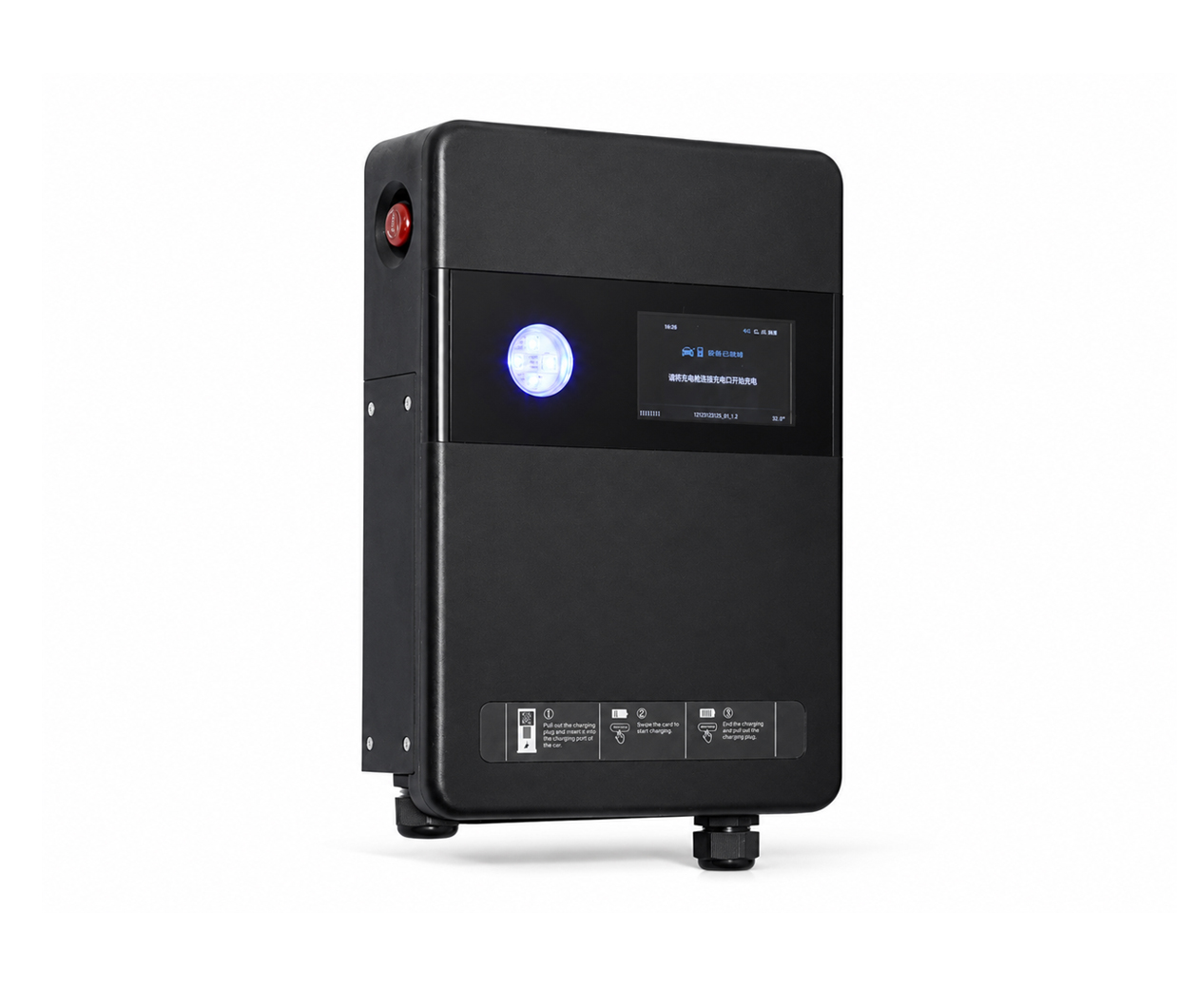

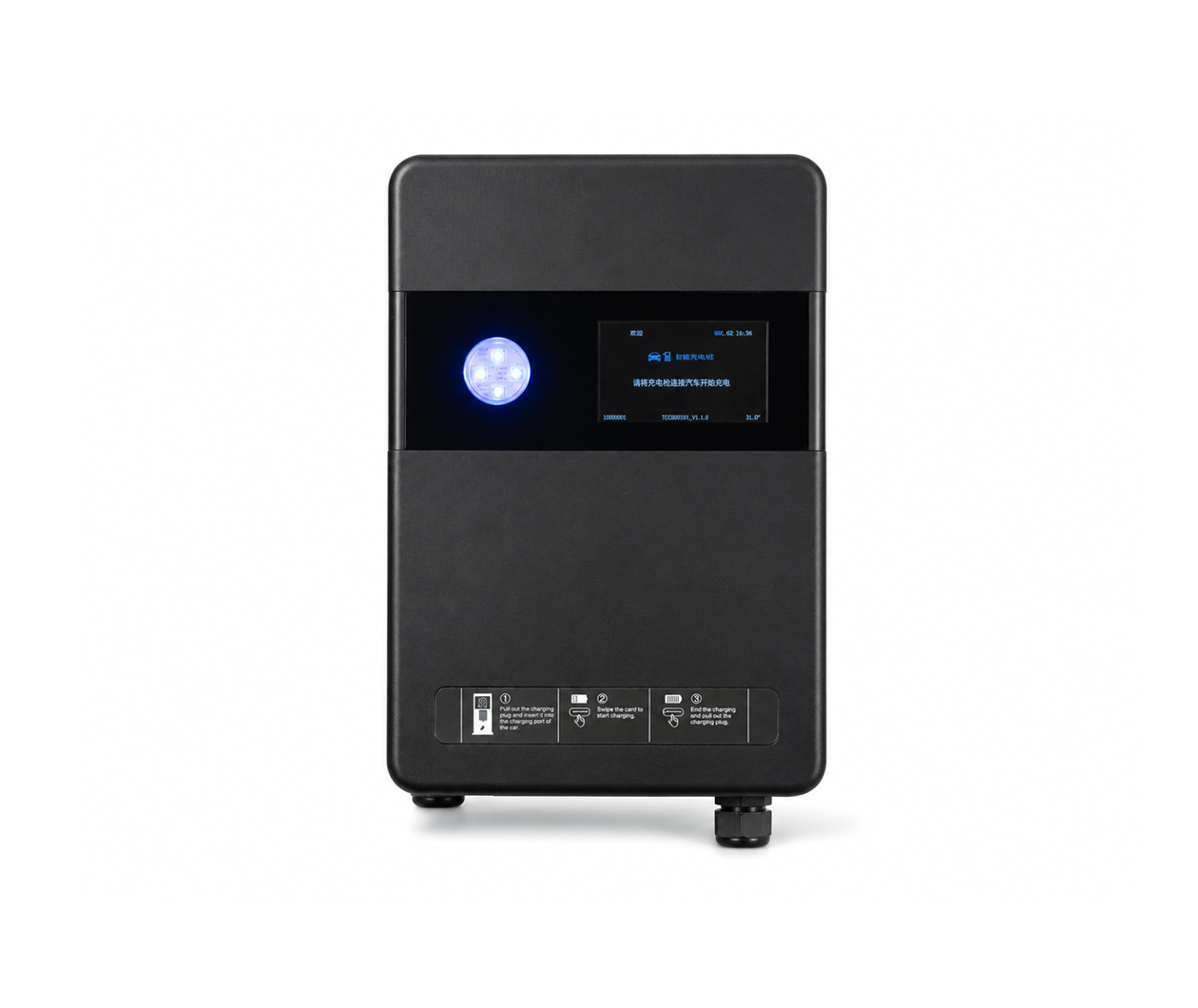

This 7kW EV charger wallbox is designed for private garages, apartment parking, workplaces, hotels and semi-public charging locations. It delivers up to 32A AC charging and can be installed directly on a wall or mounted on an optional floor-standing pedestal.
The charger supports RFID card and QR code access, OCPP 1.6J communication, scheduled charging and dynamic load balancing. Ethernet and 4G connectivity allow operators to monitor charging sessions and manage users through a compatible backend platform.
Versatile Applications
With both wall-mounted and pedestal-mounted installation options, this 7kW EV wallbox can be used across a wide range of residential, commercial, and semi-public charging environments.

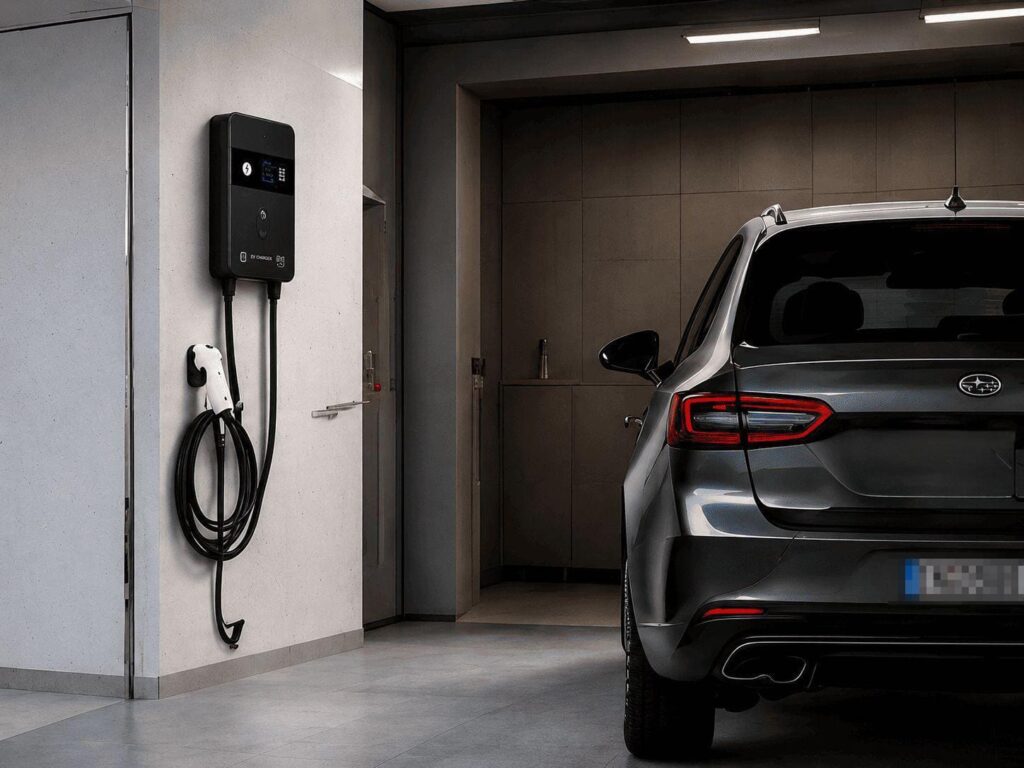

Private Garage
Configure charging fees by energy, time, or session rules.

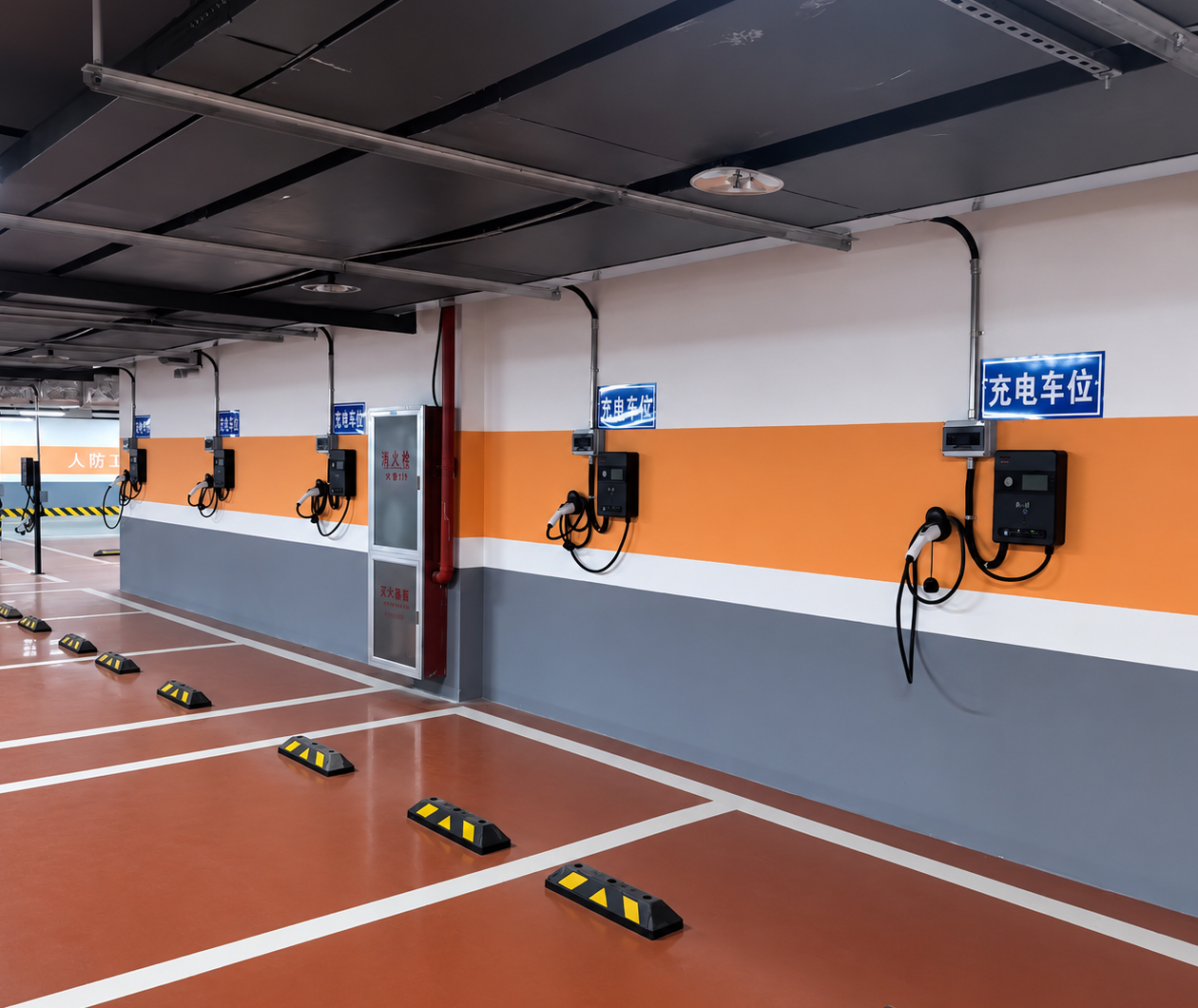

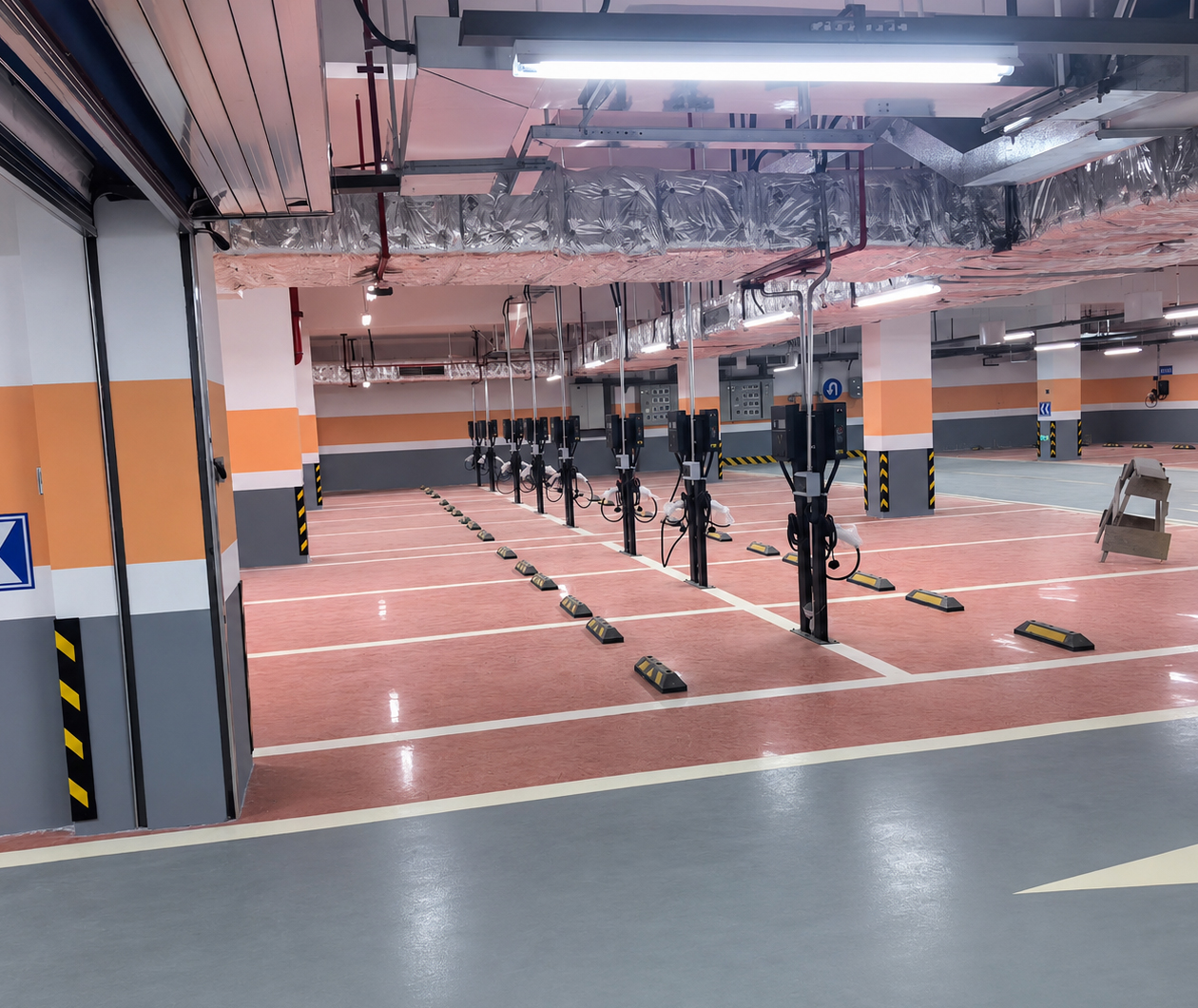

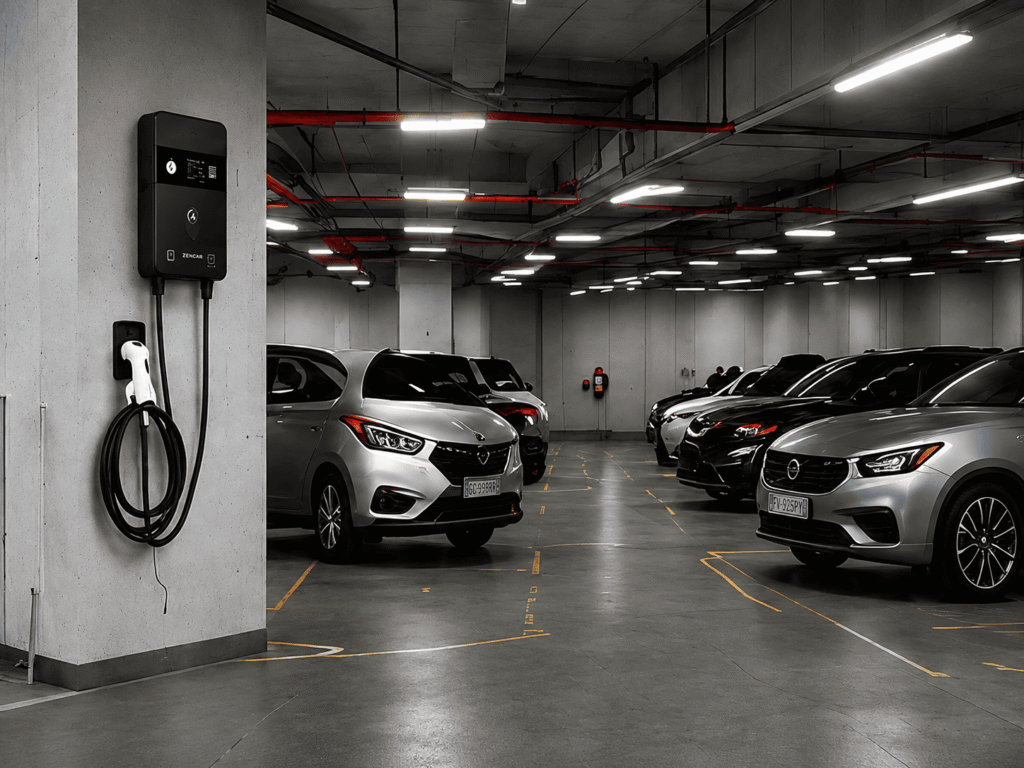

Underground Parking
Ideal for indoor parking lots, apartment garages, and private parking spaces.

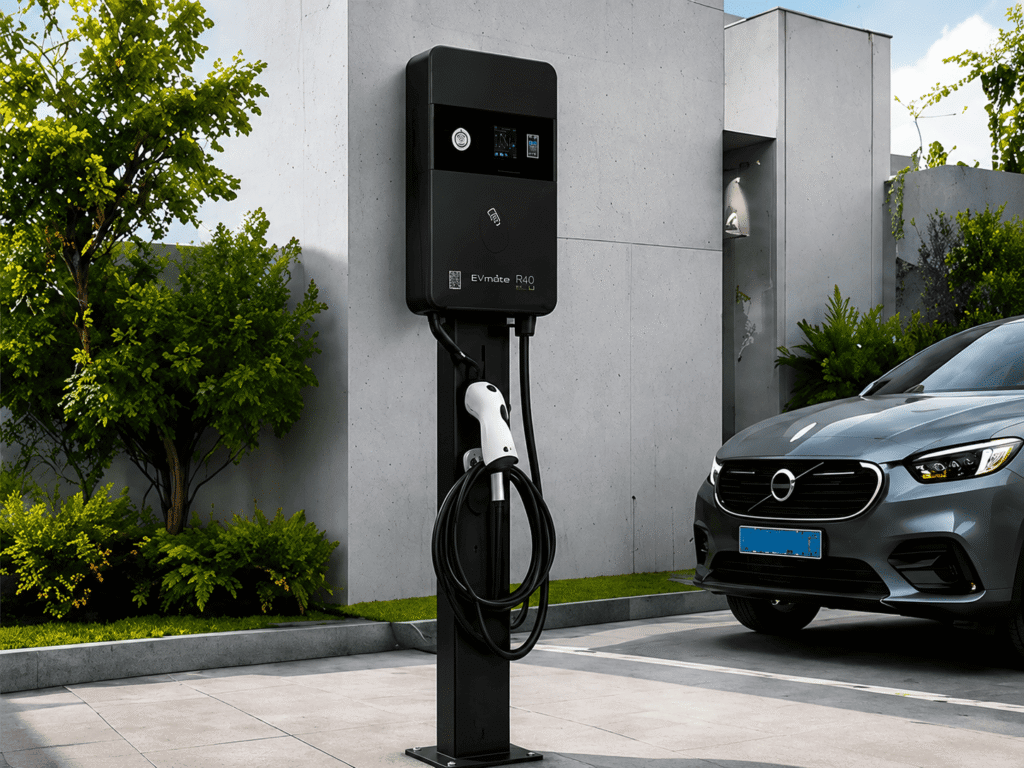

Open-Air Driveway

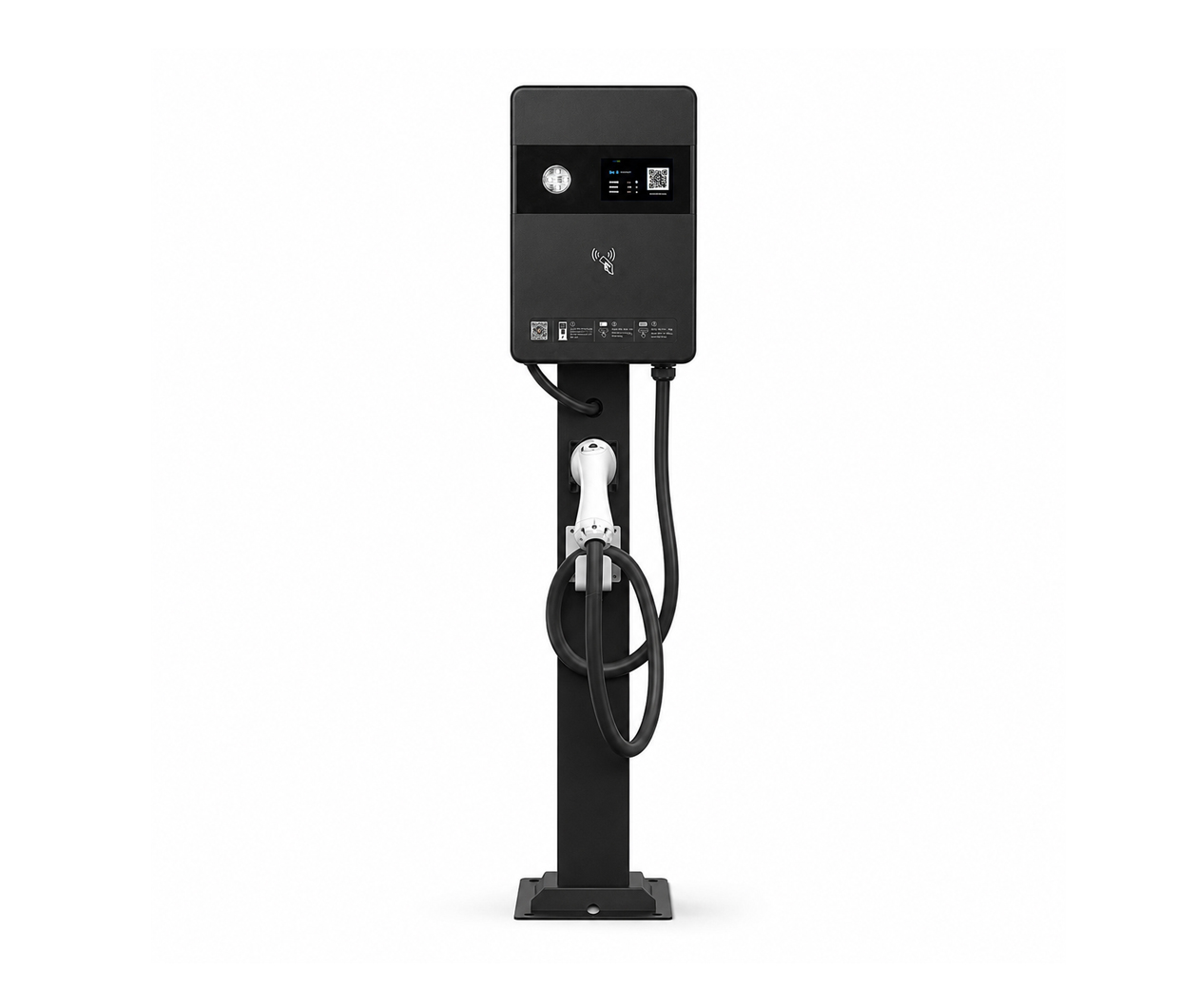

Pedestal mounting provides high visibility and convenient access for outdoor charging.

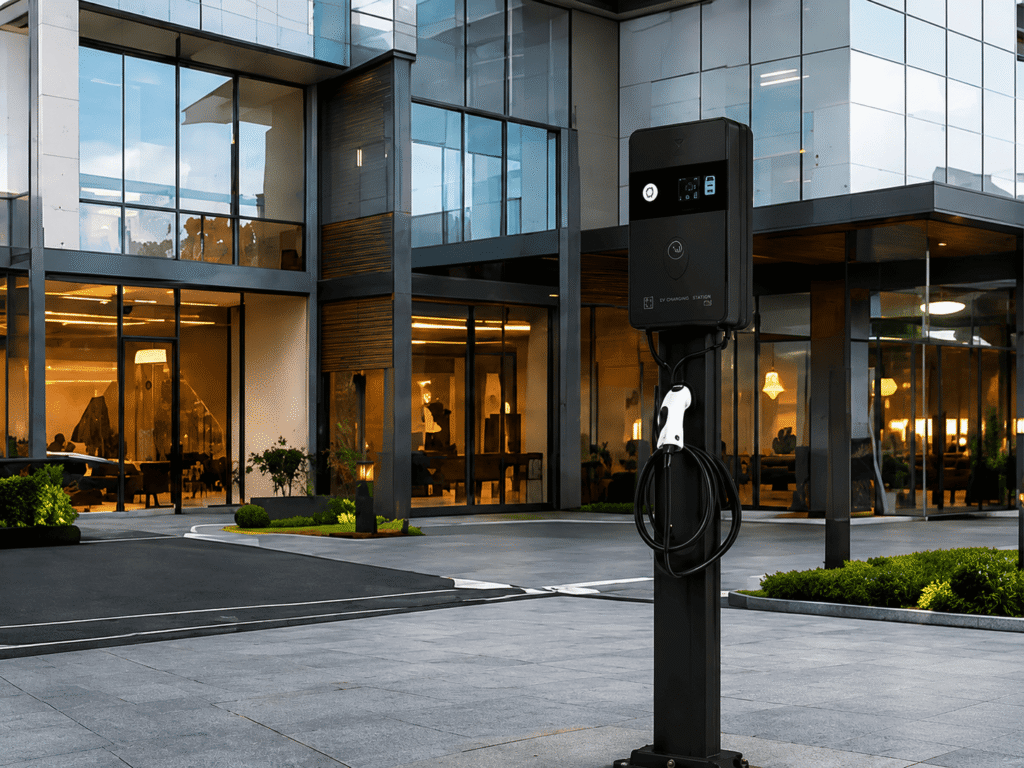

Commercial Plaza or Hotel
Suitable for commercial EV charging installations where multiple users may need access.
Smart Charging Control
This 7kW EV charger wallbox supports intelligent charging functions that make daily EV charging easier, safer, and more cost-efficient. Users can control charging through app, RFID card, or plug-and-play mode depending on configuration.
The charger supports the Open Charge Point Protocol for communication with compatible charging management systems.
App Control
Start or stop charging, monitor charging status, and view real-time charging data through the mobile app.
Real-Time Charging Data
Check charging current, voltage, charging power, energy consumption, and charging status.
Scheduled Charging
Set charging to start automatically during off-peak electricity hours to help reduce energy costs.
RFID Card Access
Use RFID cards to authorize charging and prevent unauthorized use in semi-public or shared parking areas.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Power | 7kW |
| Input Voltage | AC 220V±20%; L+N+PE |
| Output Voltage | AC 220V±20% |
| Output Current | 32A |
| Input Frequency | 50 ±10Hz |
| Current Limit Protection Value | ≥110% |
| Electrical Indicators | ≥11 |
| Metering Accuracy | 1.0 Level |
| HMI | 4.3 Inch touch screen, LED indicator strip |
| Charging Mode | Automatic charging full / Fixed power / Fixed Amount / Fixed time |
| Charging Method | Swipe Card / Scan code |
| Mode Of Payment | Credit card / Scan code |
| Operation Mode | Offline no billing, offline billing, online billing |
| Networking Method | Ethernet, 4G |
| Communication Protocol | OCPP 1.6J |
| Dynamic Load Balancing | Supported |
| Operative Norm | IEC 62196-2:2016；IEC61851-1:2017 |
| Working Temperature | -20℃~+50℃ |
| Working Humidity | 5%~95% non-condensing frost |
| Ingress Protection | IP54 |
| Cooling Method | Natural air cooling |
| Noisy Level | ≤40dB |
| MTBF | 30,000 hours |
| Installation Method | Wall-mounted or pedestal-mounted |
| Feeding Method | Bottom in and bottom out |
| Equipment Dimension | 370*255*85 mm |
| Equipment Weight | 16 KGS |
| Cable Length | 5m ( Optional ) |
*RFID and QR code access are available. Credit card or POS payment is optional depending on project configuration.
Certified Safety and Built-In Electrical Protection
The 7kW EV charger wallbox must combine certified product quality with strong electrical protection features for safer daily charging.

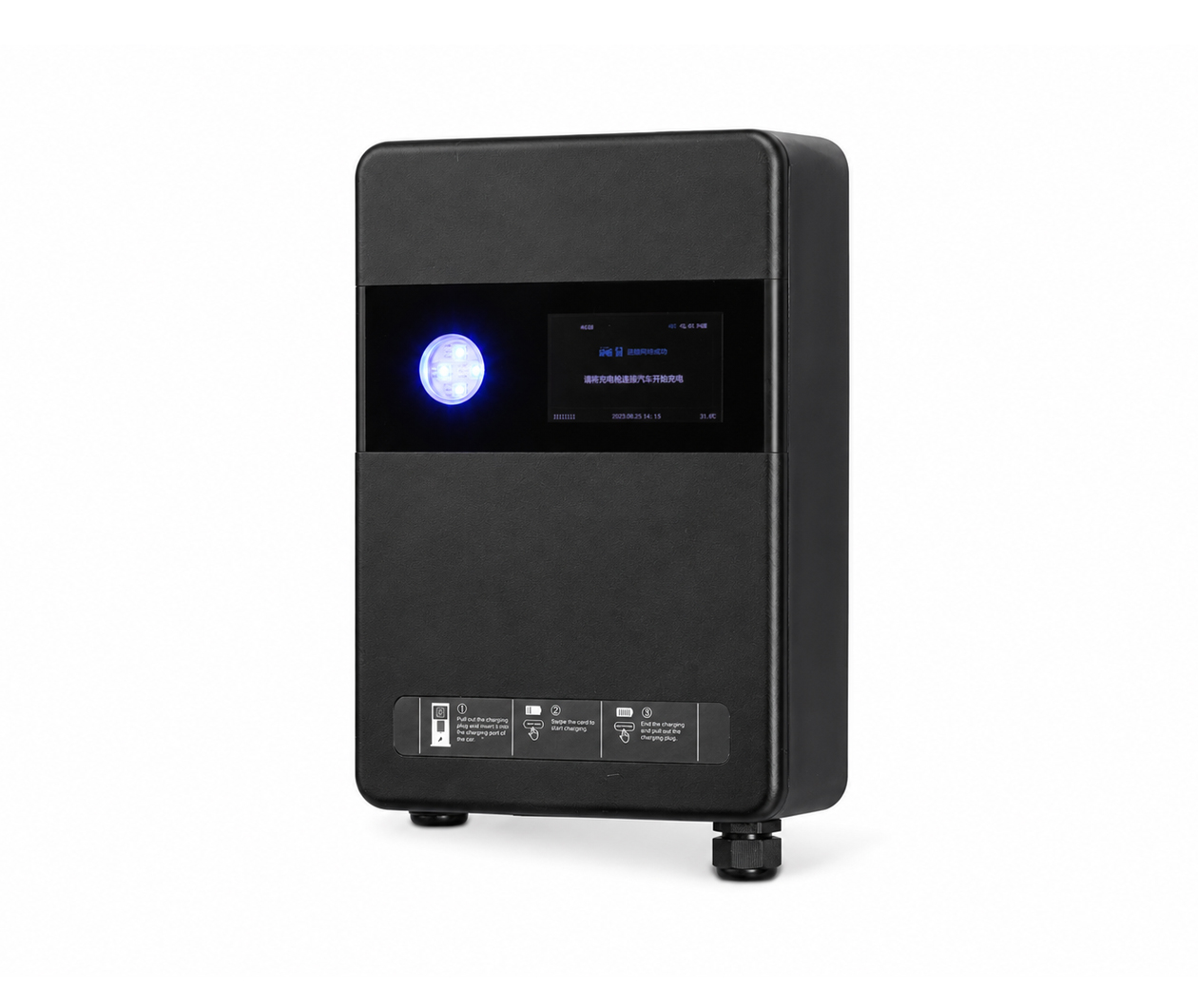

OEM / ODM Customization Services
For distributors, operators, and commercial project buyers, branding and system customization are key to long-term market differentiation.
Logo Printing
Custom silk-screen logo on the charger housing.
Housing Color Customization
Custom housing color options to match brand identity or project design.
RFID Card Design
Dedicated RFID card artwork and branding.
Custom Packaging
Branded carton, internal packaging, and presentation materials.
App Branding
Custom startup page or branded app interface for business operation projects.
Commercial Feature Customization
Project-specific software or access-control configuration depending on technical scope.
FAQs
Are you a direct manufacturer or a trading company?
We are a certified, direct industrial manufacturer based in Wuxi, China. We own and operate our state-of-the-art production lines, allowing us to supply high-quality equipment directly to international buyers with factory-direct pricing, strict quality control, and full OEM/ODM customization capabilities.
Can we customize the logos, colors, and technical specifications for our brand?
Absolutely. We provide comprehensive OEM and ODM services for global distributors and EPC contractors. You can customize the exterior enclosure branding (logo, colors, paint finishes), connector configurations, voltage profiles, and firmware communication protocols to strictly match your local market compliance.
What is the typical lead time and shipping method for bulk industrial orders?
The standard production lead time ranges from 15 to 35 days, depending on the order volume and technical customization depth. Due to the heavy-duty industrial nature and weight, we primary ship via sea freight (FOB/CIF) to global destination ports.
