22/44kW Dual-Port EV Charging Station | Commercial Pedestal EVSE
Description

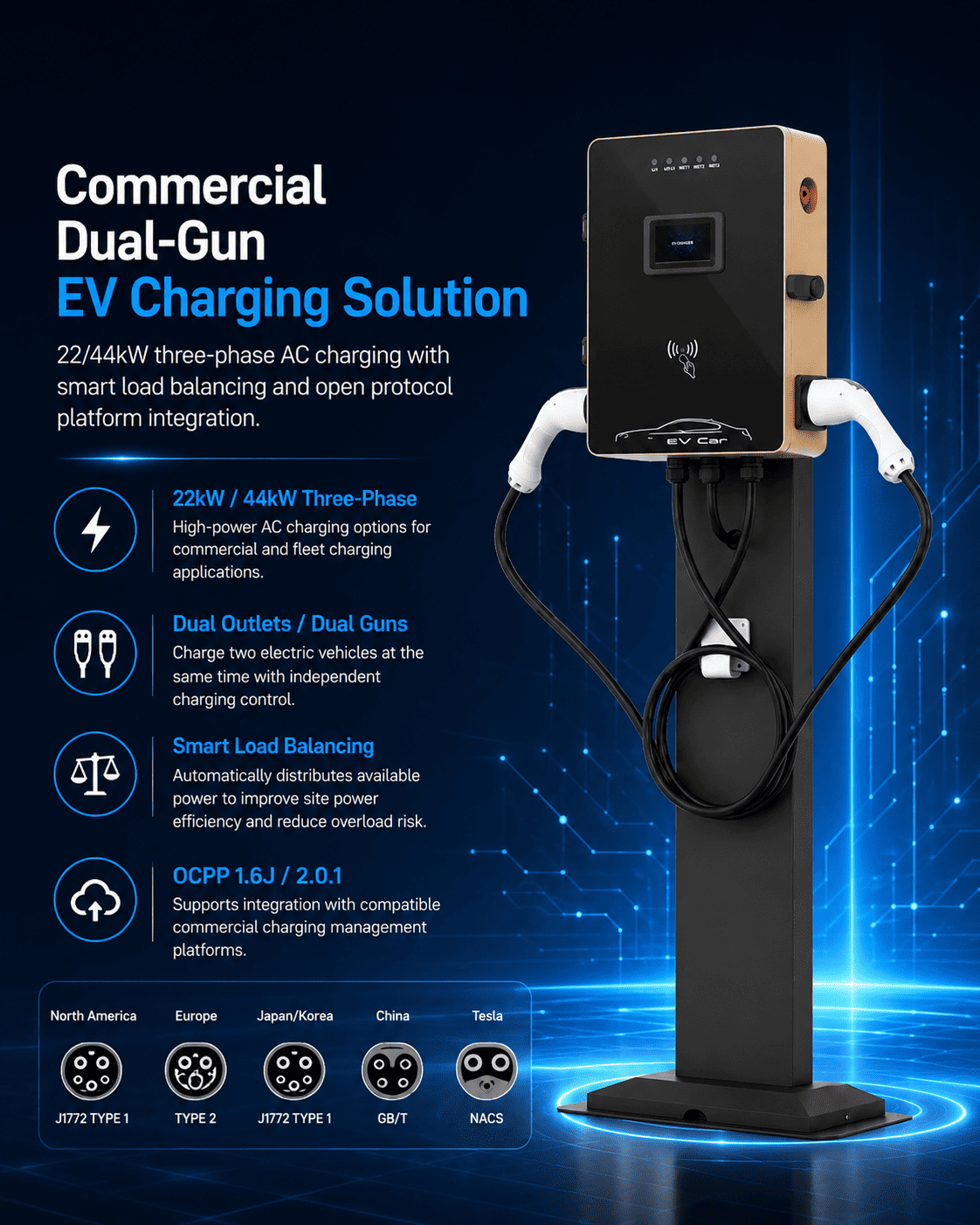

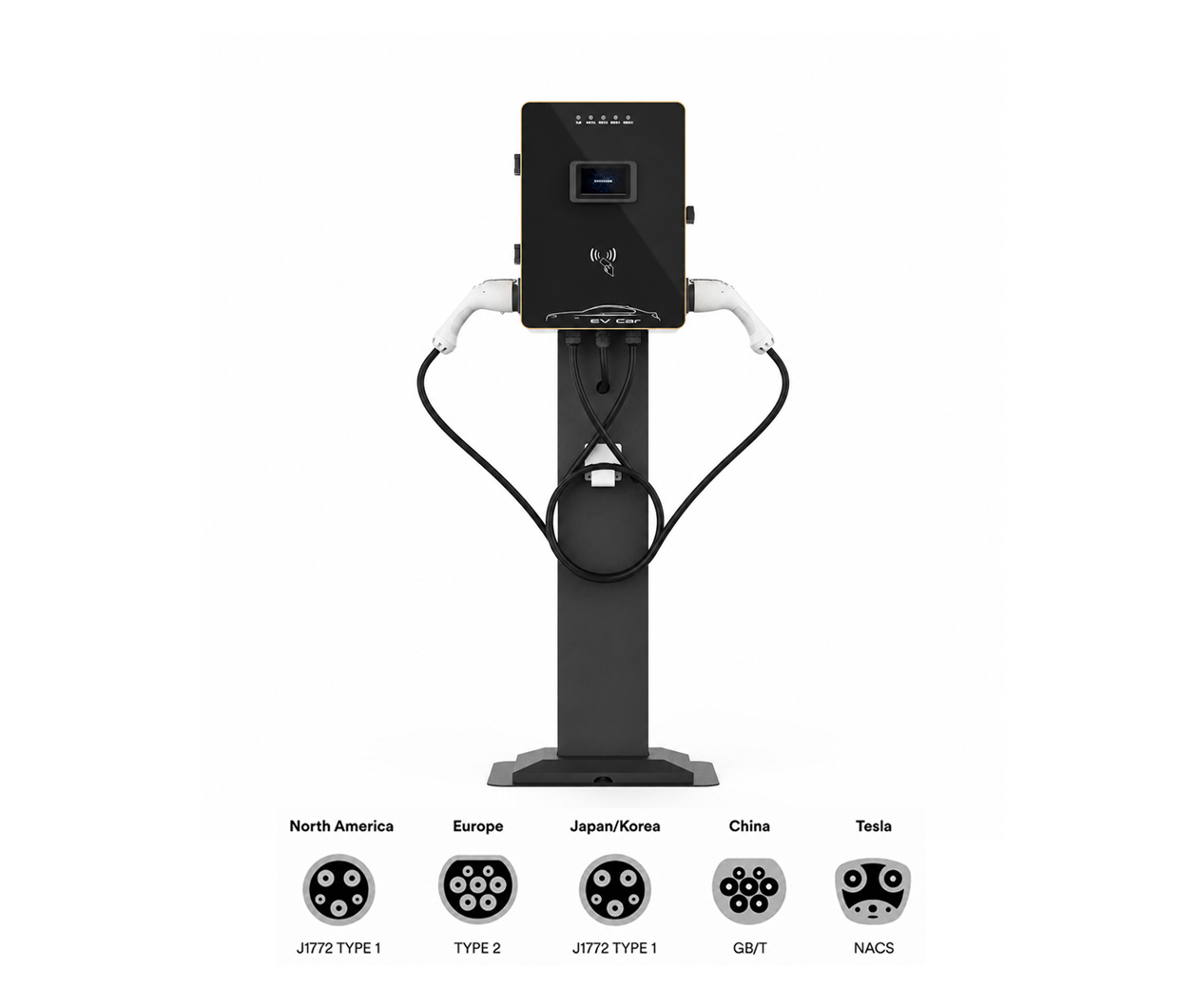

This 22/44kW dual-port EV charging station is designed for commercial parking facilities, workplaces, hotels, residential communities and semi-public charging locations. Two independent charging outputs allow the station to serve two vehicles simultaneously from one compact pedestal.
Available in 22kW and 44kW configurations, the charger supports dynamic load balancing, OCPP connectivity, RFID and QR code access, IP54 protection and remote charging management. Operators can manage users, tariffs, charging records and operational data through a compatible backend platform.
4 Core Advantages for Commercial Operation
This 22/44kW dual-port EV charging station is suitable for commercial parking and workplace charging projects.
Increase Revenue
Configure Dual-gun charging improves utilization and revenue potential.
Smart & Connected
OCPP platform integration for remote management.
Safe & Reliable
Industrial-grade protection for public and outdoor use.
Compliant & Certified
MID meter and multi-certifications for commercial billing.

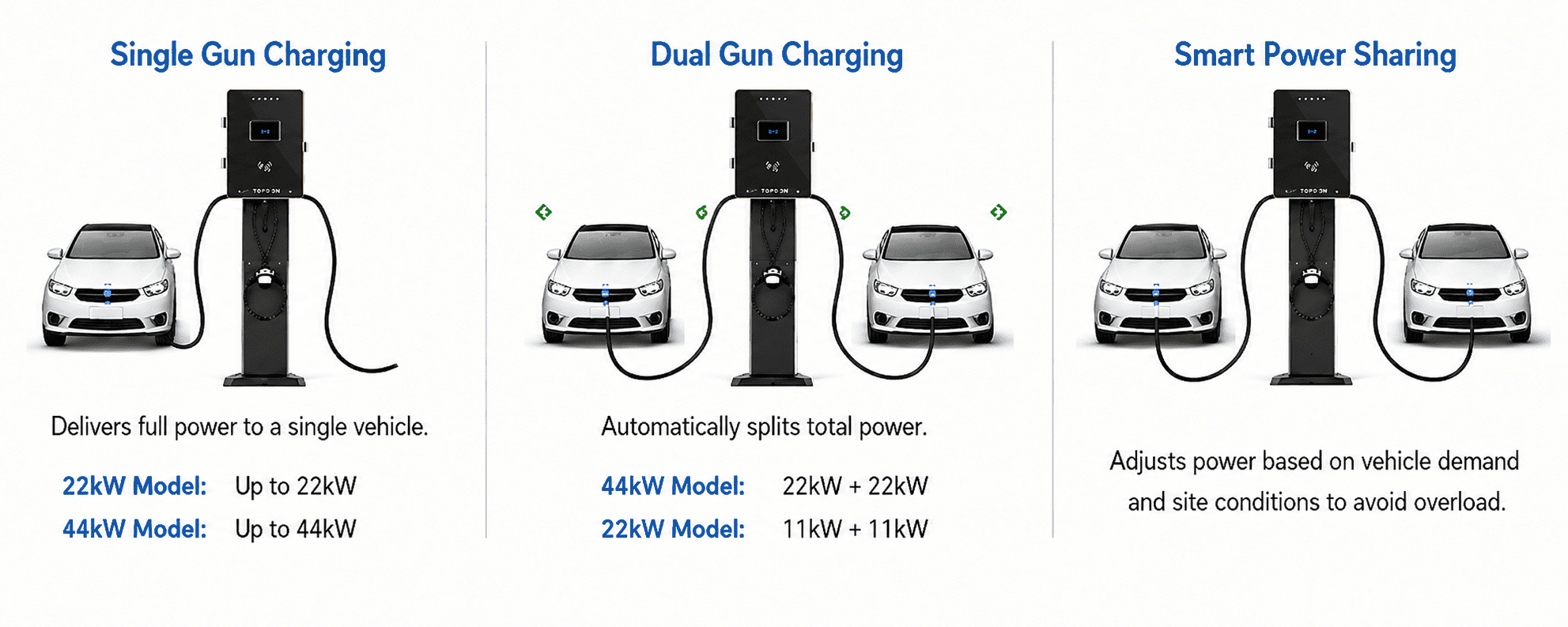

Dynamic Load Balancing & Power Sharing
The 22/44kW dual-port EV charging station intelligently manages output power between two charging guns to maximize available capacity while helping protect the site power system.
Technical Specifications
| Parameter | 22kw | 44kw |
|---|---|---|
| Input Voltage | AC 380V±20%; L1 + L2 + L3 + N + PE | AC 380V±20%; L1 + L2 + L3 + N + PE |
| Output Voltage | AC 380V±20% | AC 380V±20% |
| Input Frequency | 50 Hz ±10% | 50 Hz ±10% |
| Output Current | 16A+16A | 32 A+32 A |
| Current Limit Protection Value | ≥110% | ≥110% |
| Electrical Indicators | ≥11 | ≥11 |
| Metering Accuracy | 1.0 Level | 1.0 Level |
| HMI | 4.3 Inch touch screen, LED indicator strip | 4.3 Inch touch screen, LED indicator strip |
| Communication Protocol | OCPP 1.6J | OCPP 1.6J |
| Networking Method | Ethernet, 4G | Ethernet, 4G |
| Charging Mode | Automatic charging full / Fixed power / Fixed Amount / Fixed time | Automatic charging full / Fixed power / Fixed Amount / Fixed time |
| Charging method | Swipe Card / Scan code | Swipe Card / Scan code |
| Operation Mode | Offline no billing, offline billing, online billing | Offline no billing, offline billing, online billing |
| Mode of payment | Credit card / Scan code | Credit card / Scan code |
| Working Temperature | -20℃~+50℃ | -20℃~+50℃ |
| Working Humidity | 5%~95% non-condensing frost | 5%~95% non-condensing frost |
| Working Altitude | ≤2000m | ≤2000m |
| Ingress Protection | IP54 | IP54 |
| Cooling Method | Natural air cooling | Natural air cooling |
| Noisy Level | ≤40dB | ≤40dB |
| MTBF | 30,000 hours | 30,000 hours |
| Equipment Dimension | 550*430*130 mm | 550*430*160 mm |
| Installation Method | Floor-standing installation | Floor-standing installation |
| Feeding Method | Bottom in and bottom out | Bottom in and bottom out |
| Cable Length | 5m ( Optional ) | 5m ( Optional ) |
OCPP & Payment Integration
Open, flexible and reliable platform connectivity with multiple payment options for commercial operation.
OCPP & CMS Integration
Multiple Payment Options
RFID Card
Easy access for members and fleets.
QR Code Payment
Scan to charge & pay via mobile app.
Mobile App
Start / Stop charging, check status & payment.
POS / Credit Card
Optional POS terminal for card payment.
Reliable Network Connection
4G LTE
Stable connection for remote sites.
Ethernet RJ45
Wired connection for high stability.
WIFI
Wireless connection for easy setup.
RS485
Industrial communication interface.
Comprehensive Safety Protection
OEM / ODM Customization Services
For distributors, operators, and commercial project buyers, branding and system customization are key to long-term market differentiation.
Logo Printing
Custom silk-screen logo on the charger housing.
Housing Color Customization
Custom housing color options to match brand identity or project design.
RFID Card Design
Dedicated RFID card artwork and branding.
Custom Packaging
Branded carton, internal packaging, and presentation materials.
App Branding
Custom startup page or branded app interface for business operation projects.
Commercial Feature Customization
Project-specific software or access-control configuration depending on technical scope.
Contact HB Charger for 22/44kW dual-port EV charging station specifications, customization options and project pricing.
FAQs
Are you a direct manufacturer or a trading company?
We are a certified, direct industrial manufacturer based in Wuxi, China. We own and operate our state-of-the-art production lines, allowing us to supply high-quality equipment directly to international buyers with factory-direct pricing, strict quality control, and full OEM/ODM customization capabilities.
Can we customize the logos, colors, and technical specifications for our brand?
Absolutely. We provide comprehensive OEM and ODM services for global distributors and EPC contractors. You can customize the exterior enclosure branding (logo, colors, paint finishes), connector configurations, voltage profiles, and firmware communication protocols to strictly match your local market compliance.
What is the typical lead time and shipping method for bulk industrial orders?
The standard production lead time ranges from 15 to 35 days, depending on the order volume and technical customization depth. Due to the heavy-duty industrial nature and weight, we primary ship via sea freight (FOB/CIF) to global destination ports.
