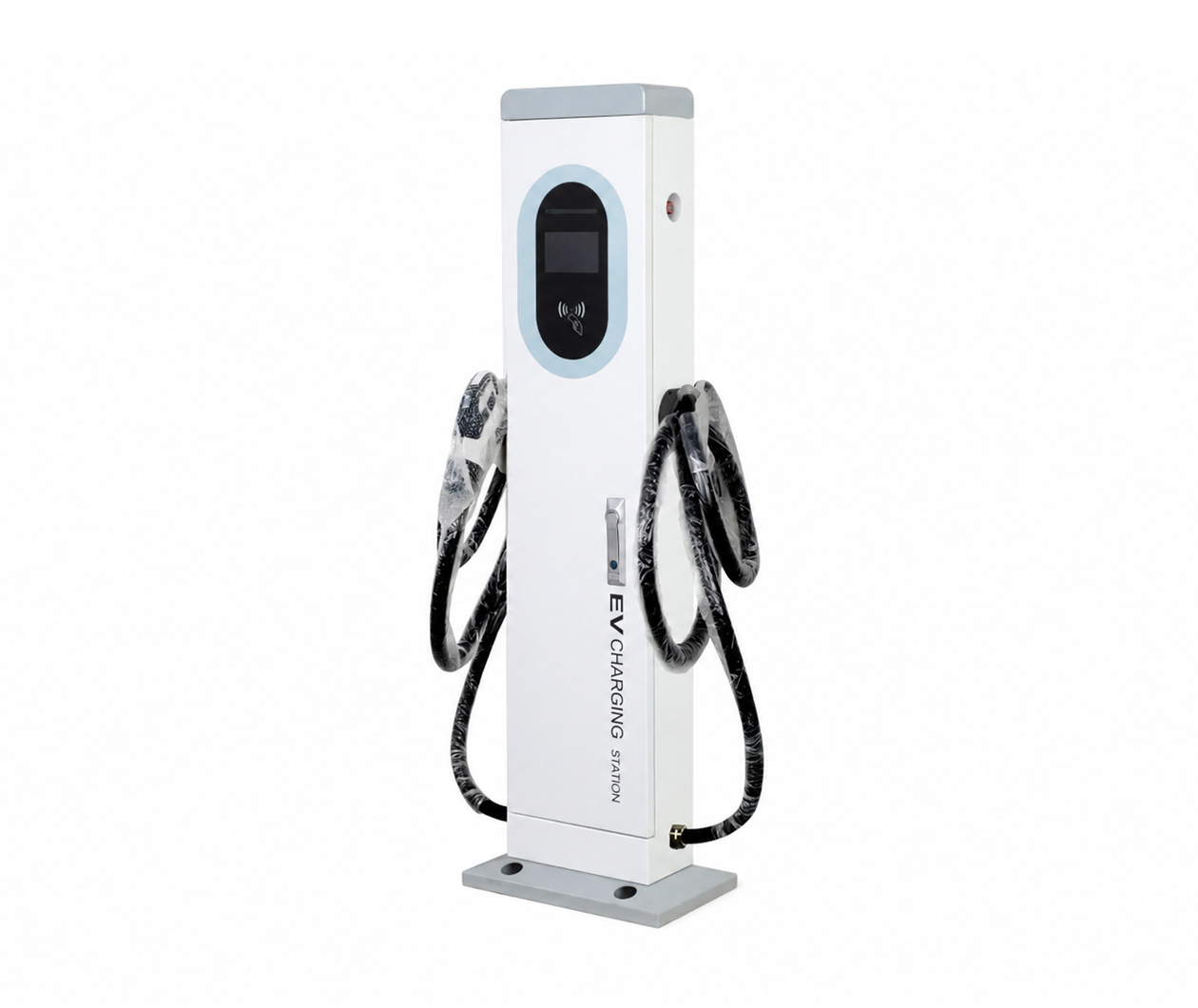

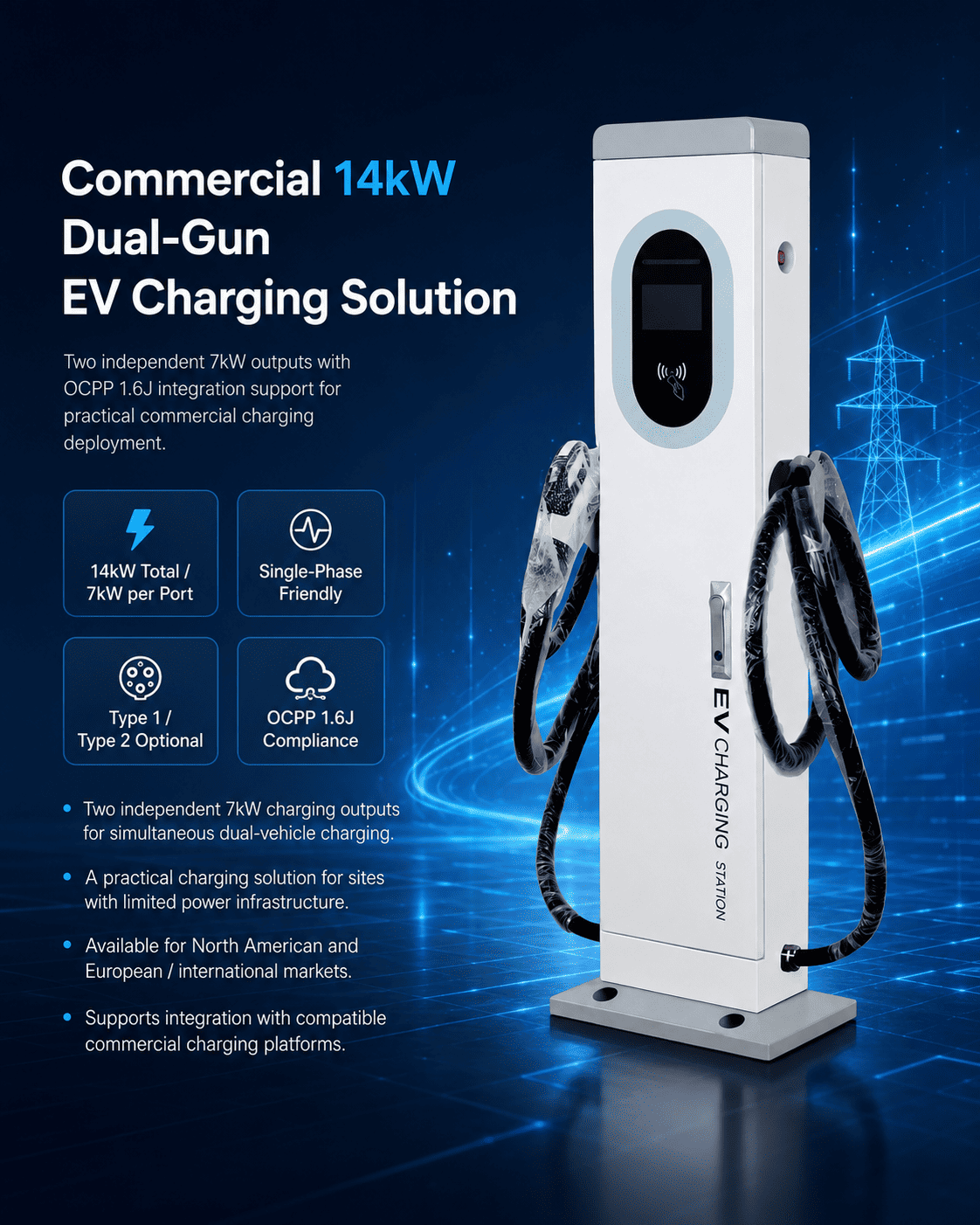

14kW Dual-Gun Commercial Floor-Mount AC EV Charging Pillar
Description

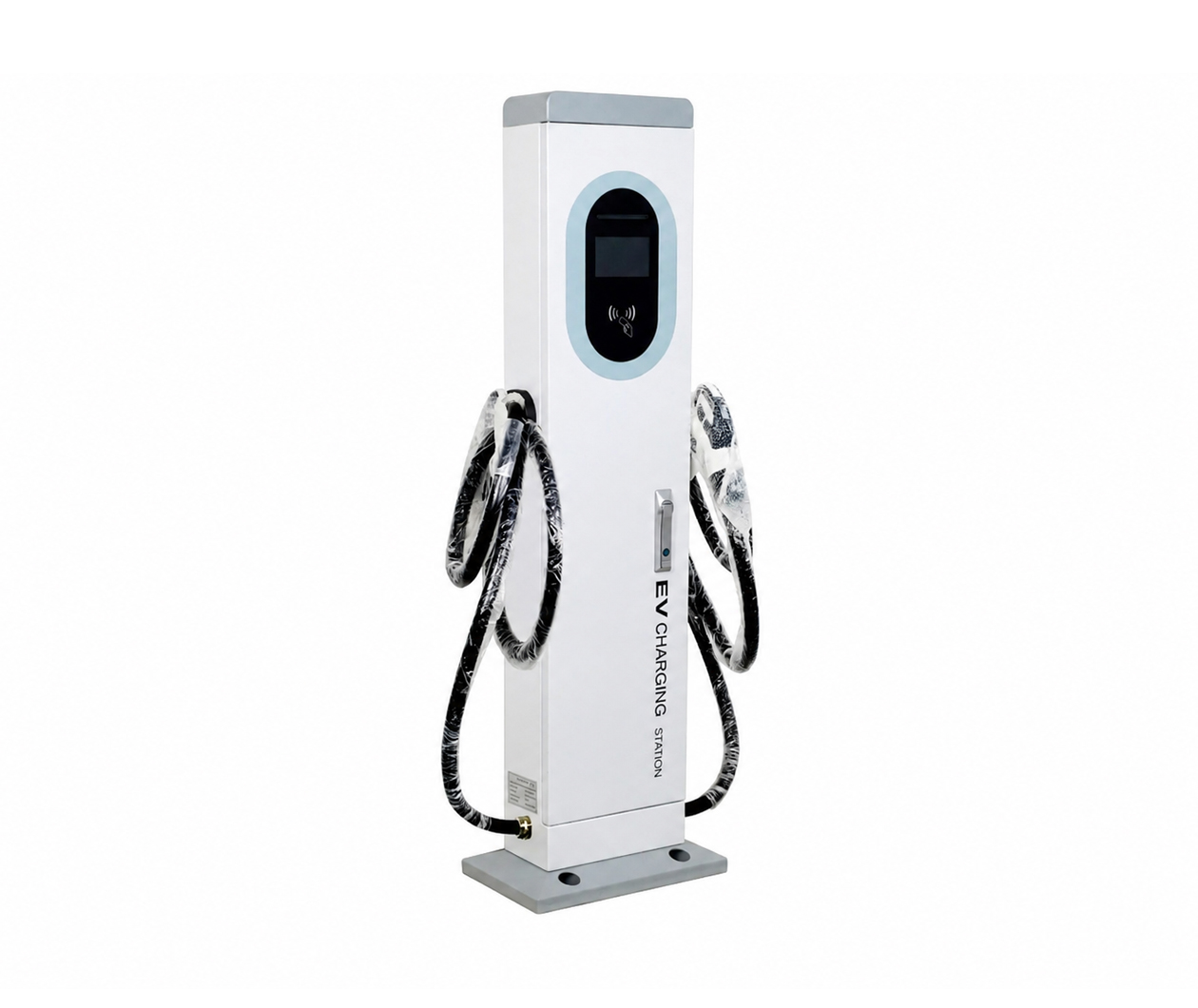

This 14kW dual-gun AC EV charger combines two independent 7kW charging outputs in one compact floor-standing pedestal. It is designed for commercial parking facilities, workplaces and semi-public charging locations where two vehicles need to charge simultaneously.
The charger supports RFID and QR code access, OCPP connectivity, dynamic load balancing and remote charging management. Ethernet, 4G and Wi-Fi options enable operators to monitor charging sessions, manage users and configure commercial billing functions.
Why Choose This 14kW Dual-Gun AC EV Charger?
Dual Charging from One Pedestal
Charge two vehicles at the same time from one compact commercial unit.
Grid-Limited Site Friendly
Designed for commercial sites where power capacity is limited but dual charging is still required.
Independent Dual 7kW Outputs
Each charging side works independently for more stable charging performance.
Smart Commercial Connectivity
Supports app control, RFID, OCPP, and remote charging management.
Durable Outdoor Construction
Suitable for public and semi-public outdoor charging environments.
Flexible Market Versions

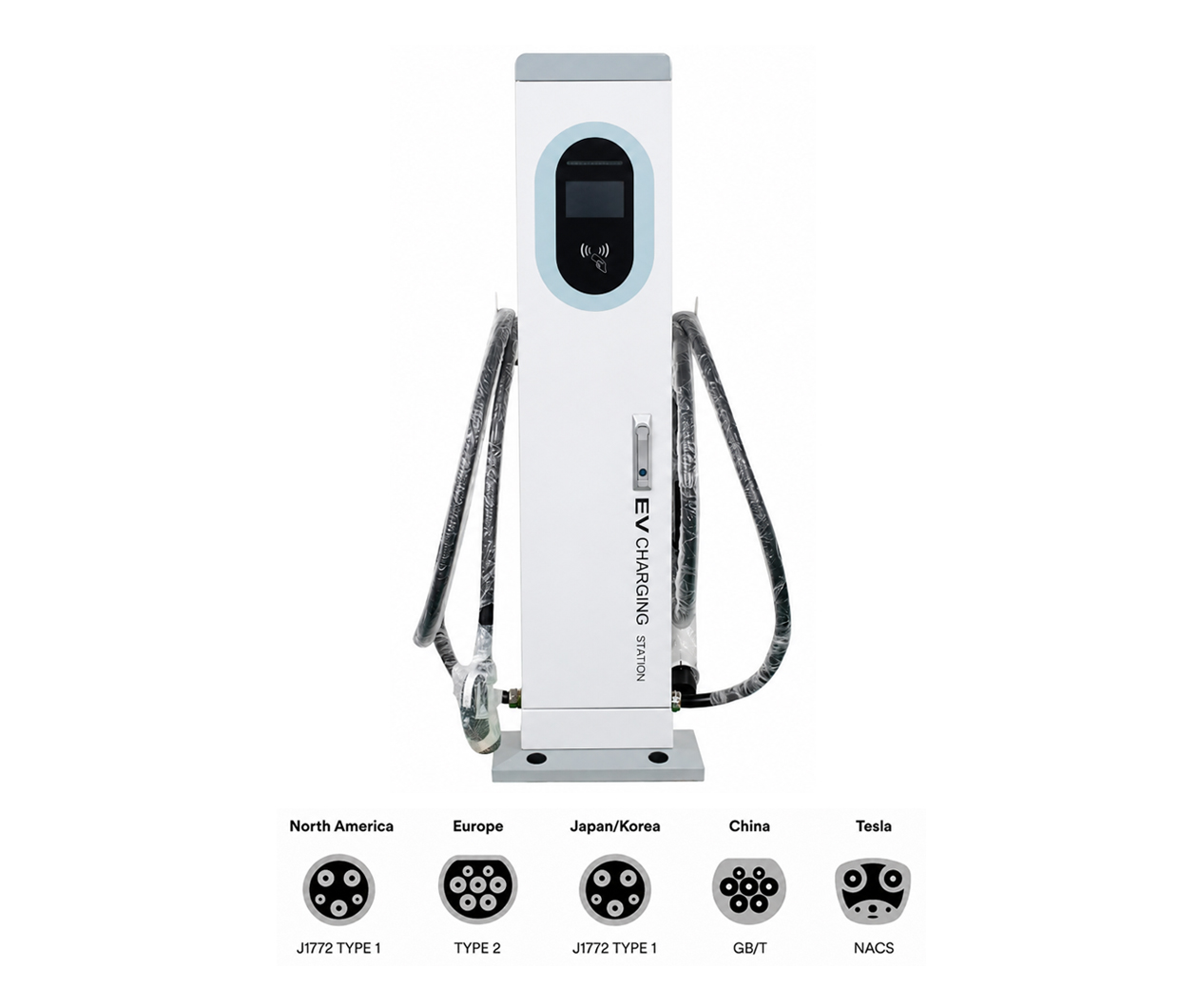

Available in connector and voltage formats for North America and Europe / international markets.

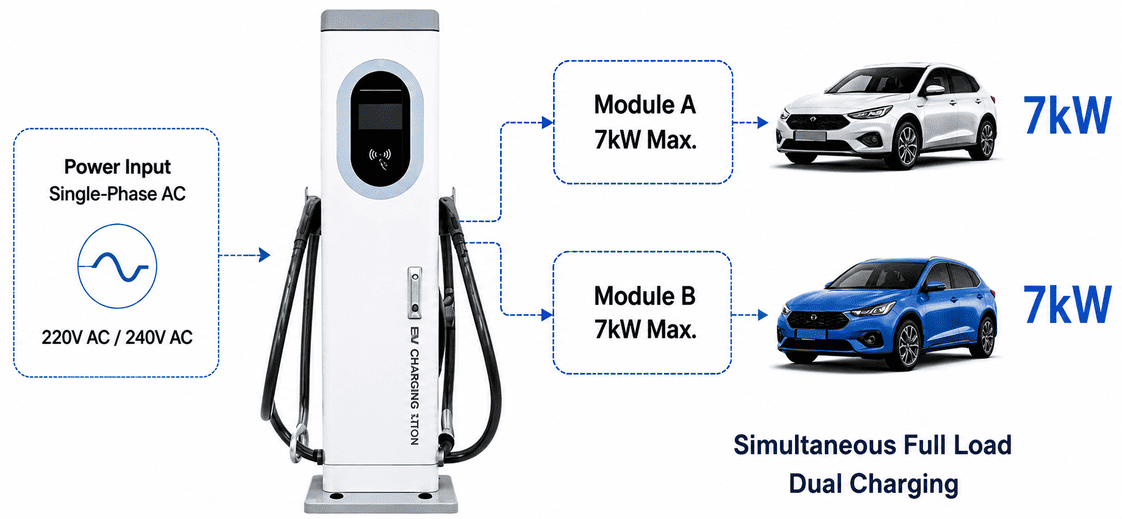

14kW Power Architecture for Reliable Dual Charging
The charger is designed with a dual-channel charging architecture so that each output can serve one vehicle independently while maintaining stable charging performance in grid-limited commercial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Power | 14kW |
| Input Voltage | AC 380V±20%; L1 + L2 + L3 + N + PE |
| Output Voltage | AC 220V±20% |
| Output Current | 32 A+32A |
| Input Frequency | 50 Hz ±10% |
| Current Limit Protection Value | ≥110% |
| Electrical Indicators | ≥11 |
| Metering Accuracy | 1.0 Level |
| HMI | 4.3-inch high-brightness color touch screen, LED indicator strip |
| Charging Mode | Automatic charging full / Fixed power / Fixed Amount / Fixed time |
| Charging Method | Swipe Card / Scan code |
| Mode Of Payment | Credit card / Scan code |
| Operation Mode | Offline no billing, offline billing, online billing |
| Networking Method | Ethernet, 4G, WIFI |
| Communication Protocol | OCPP 1.6J |
| Dynamic Load Balancing | Supported |
| Operative Norm | IEC61851-1-2017；IEC62196-2: 2016 |
| Working Temperature | -20℃~+50℃ |
| Working Humidity | 5%~95% non-condensing frost |
| Ingress Protection | IP54 |
| Cooling Method | Natural air cooling |
| Noisy Level | ≤40dB |
| MTBF | 30,000hours |
| Installation Method | Floor-standing installation |
| Feeding Method | Bottom in and bottom out |
| Equipment Dimension | 410*240*1400 mm |
| Cable Length | 5m ( Optional ) |
OCPP & Payment Integration
Open, flexible and reliable platform connectivity with multiple payment options for commercial operation.
OCPP & CMS Integration
Multiple Payment Options
RFID Card
Easy access for members and fleets.
QR Code Payment
Scan to charge & pay via mobile app.
Mobile App
Start / Stop charging, check status & payment.
POS / Credit Card
Optional POS terminal for card payment.
Reliable Network Connection
4G LTE
Stable connection for remote sites.
Ethernet RJ45
Wired connection for high stability.
WIFI
Wireless connection for easy setup.
RS485
Industrial communication interface.
Comprehensive Safety Protection
OEM / ODM Customization Services
For distributors, operators, and commercial project buyers, branding and system customization are key to long-term market differentiation.
Logo Printing
Custom silk-screen logo on the charger housing.
Housing Color Customization
Custom housing color options to match brand identity or project design.
RFID Card Design
Dedicated RFID card artwork and branding.
Custom Packaging
Branded carton, internal packaging, and presentation materials.
App Branding
Custom startup page or branded app interface for business operation projects.
Commercial Feature Customization
Project-specific software or access-control configuration depending on technical scope.
Shipment Display
Professional Packaging * Safe Protection * Secure Delivery * Global Shipping
Contact HB Charger for 14kW dual-gun AC EV charger specifications, customization options and project pricing.
FAQs
Are you a direct manufacturer or a trading company?
We are a certified, direct industrial manufacturer based in Wuxi, China. We own and operate our state-of-the-art production lines, allowing us to supply high-quality equipment directly to international buyers with factory-direct pricing, strict quality control, and full OEM/ODM customization capabilities.
Can we customize the logos, colors, and technical specifications for our brand?
Absolutely. We provide comprehensive OEM and ODM services for global distributors and EPC contractors. You can customize the exterior enclosure branding (logo, colors, paint finishes), connector configurations, voltage profiles, and firmware communication protocols to strictly match your local market compliance.
What is the typical lead time and shipping method for bulk industrial orders?
The standard production lead time ranges from 15 to 35 days, depending on the order volume and technical customization depth. Due to the heavy-duty industrial nature and weight, we primary ship via sea freight (FOB/CIF) to global destination ports.
