7kW Smart EV Charging Station | Level 2 Wallbox with Type 2 Cable
Description

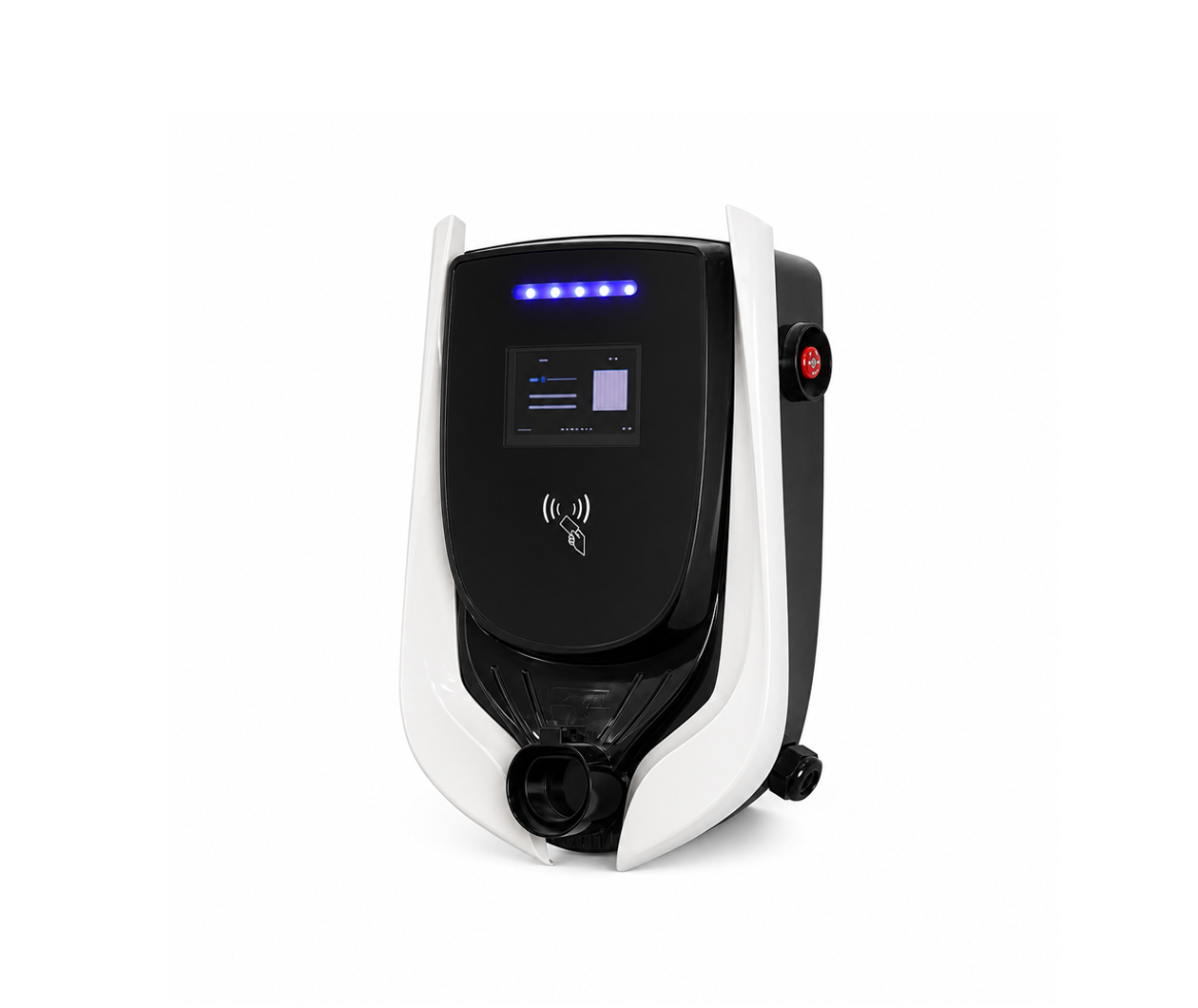

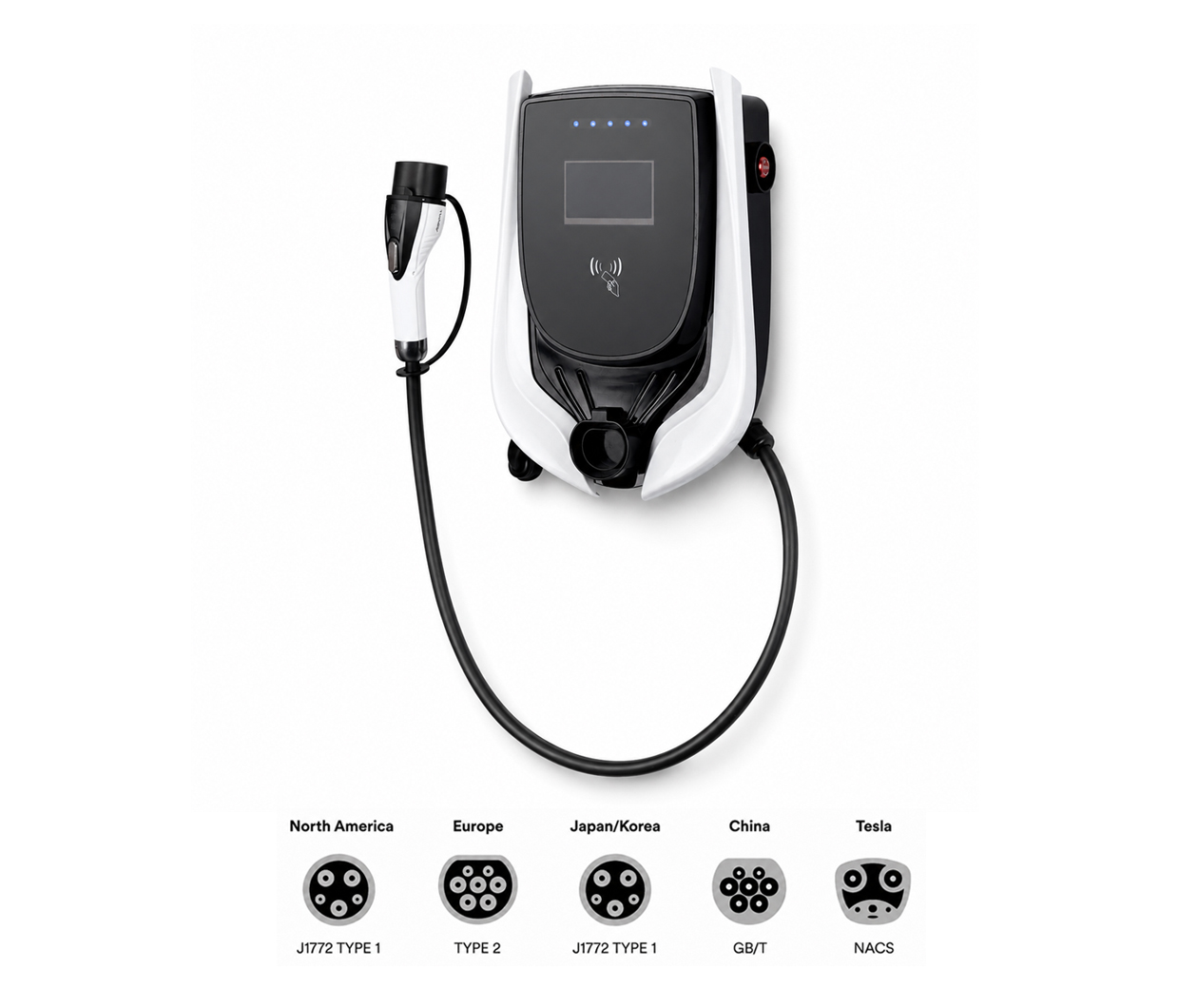

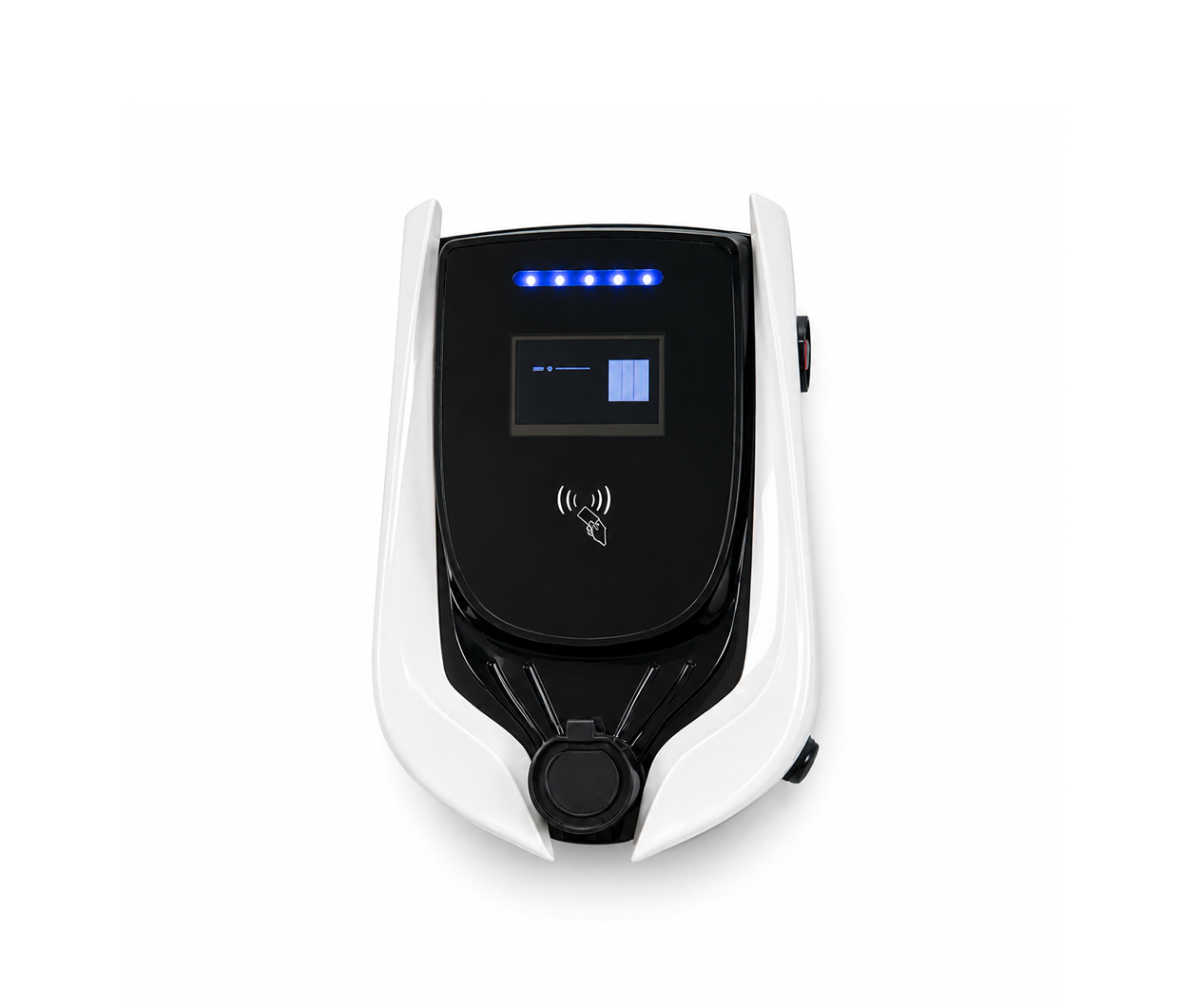

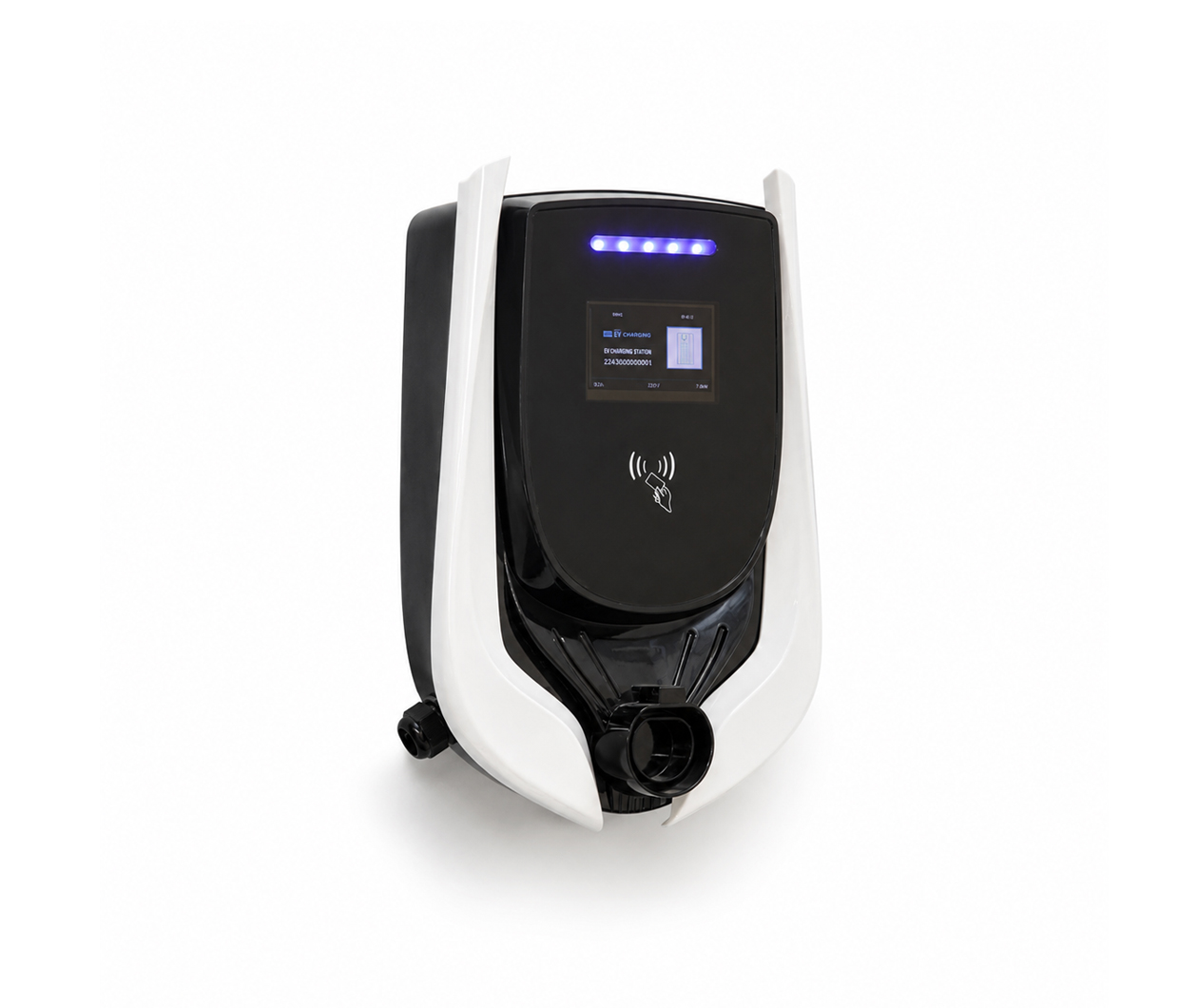

This 7kW commercial EV charging station is designed for commercial parking facilities, workplaces, hotels, apartment buildings and semi-public charging locations. It provides up to 32A AC charging through a Type 2 cable and supports networked charging operations.
The charger can support OCPP connectivity, RFID and QR code access, remote tariff setting, charging records and user management through a compatible backend platform. Dynamic load balancing can also help coordinate charging demand with the available site power capacity.
OCPP & CMS Integration for Commercial Charging Operations
For commercial users, a charger is more than a hardware device. It must work with a reliable backend system for billing, monitoring, access control, and business management. This 7kW commercial EV charging station can be connected to a compatible backend for access and tariff management.
Remote Tariff Setting
Configure charging fees by energy, time, or session rules.
Dynamic Load Balancing
Balance building power usage and charging load to help prevent overload and breaker trips.
Billing & Reports
Generate charging records, usage reports, and operational data for daily management.
Multi-User Access Control
Set different user permissions, such as free charging for staff and paid access for visitors.
Remote Monitoring
Check charger status, online/offline condition, session activity, and alerts remotely.
Fleet & Property Management
Suitable for fleet depots, staff parking, apartment properties, and commercial charging sites.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Power | 7kW |
| Input Voltage | AC 220V±20%; L+N+PE |
| Output Voltage | AC 220V±20% |
| Output Current | 32A |
| Input Frequency | 50 ±10Hz |
| Current Limit Protection Value | ≥110% |
| Electrical Indicators | ≥11 |
| Metering Accuracy | 1.0 Level |
| HMI | 4.3 Inch touch screen, LED indicator strip |
| Charging Mode | Automatic charging full / Fixed power / Fixed Amount / Fixed time |
| Charging Method | Swipe Card / Scan code / APP payment |
| Mode Of Payment | Credit card / Scan code |
| Operation Mode | Offline no billing, offline billing, online billing |
| Networking Method | Ethernet, 4G |
| Communication Protocol | OCPP 1.6J |
| Dynamic Load Balancing | Supported |
| Operative Norm | IEC 62196-2:2016；IEC61851-1:2017 |
| Working Temperature | -20℃~+50℃ |
| Working Humidity | 5%~95% non-condensing frost |
| Ingress Protection | IP54 |
| Cooling Method | Natural air cooling |
| Noisy Control | ≤40dB |
| MTBF | 30,000hours |
| Installation Method | Wall mounted |
| Feeding Method | Bottom in and bottom out |
| Equipment Dimension | 450*305*130 mm |
| Equipment Weight | 16 KGS |
| Cable Length | 5m ( Optional ) |
Certified Safety and Built-In Electrical Protection
The 7kW commercial EV charging station must combine certified product quality with strong electrical protection features for safer daily charging.
OEM / ODM Customization Services
For distributors, operators, and commercial project buyers, branding and system customization are key to long-term market differentiation.
Logo Printing
Custom silk-screen logo on the charger housing.
Housing Color Customization
Custom housing color options to match brand identity or project design.
RFID Card Design
Dedicated RFID card artwork and branding.
Custom Packaging
Branded carton, internal packaging, and presentation materials.
App Branding
Custom startup page or branded app interface for business operation projects.
Commercial Feature Customization
Project-specific software or access-control configuration depending on technical scope.
Complete Package for Hassle-Free Installation
A complete accessory package helps installers finish the job more efficiently and improves the end user’s experience after delivery.
- Wall mounted type AC charging station(1 set )
- Installation instructions (1 set)
- 1 piece of certificate of quality
- Mounting brackets (2 pieces)
- Mounting screws (1 pack)
- Key (2 pieces)
Contact HB Charger for 7kW commercial EV charging station specifications, OCPP options and project pricing.
FAQs
Are you a direct manufacturer or a trading company?
We are a certified, direct industrial manufacturer based in Wuxi, China. We own and operate our state-of-the-art production lines, allowing us to supply high-quality equipment directly to international buyers with factory-direct pricing, strict quality control, and full OEM/ODM customization capabilities.
Can we customize the logos, colors, and technical specifications for our brand?
Absolutely. We provide comprehensive OEM and ODM services for global distributors and EPC contractors. You can customize the exterior enclosure branding (logo, colors, paint finishes), connector configurations, voltage profiles, and firmware communication protocols to strictly match your local market compliance.
What is the typical lead time and shipping method for bulk industrial orders?
The standard production lead time ranges from 15 to 35 days, depending on the order volume and technical customization depth. Due to the heavy-duty industrial nature and weight, we primary ship via sea freight (FOB/CIF) to global destination ports.
