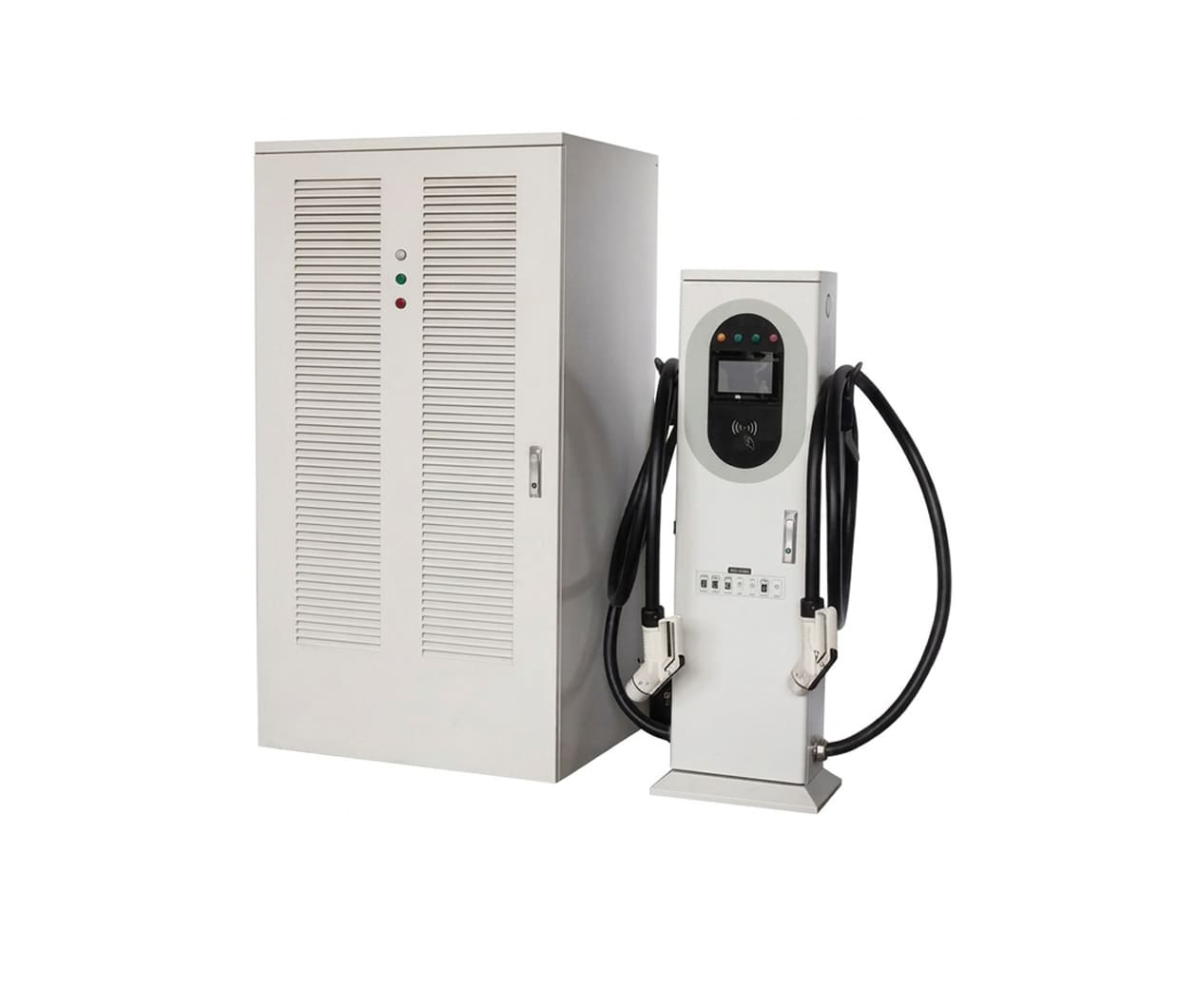

240kW-720kW Split-Type DC Fast Charging System
Description
240kW-720kW split-type DC fast charging system with centralized power distribution, slim dispensers and flexible output for commercial charging hubs.
The system supports flexible power distribution across multiple charging outputs, allowing available power to be allocated according to connected vehicle demand. Its modular architecture also enables operators to expand charging capacity as site utilization grows.
The Split-Type Revolution

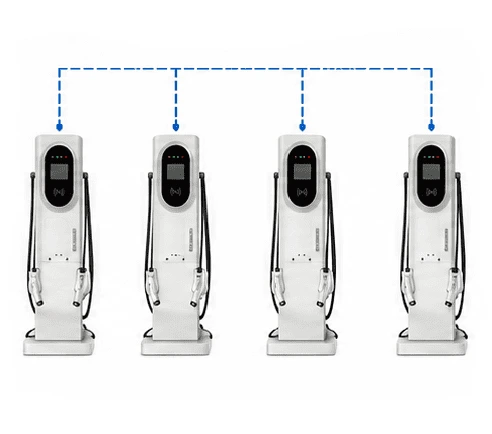

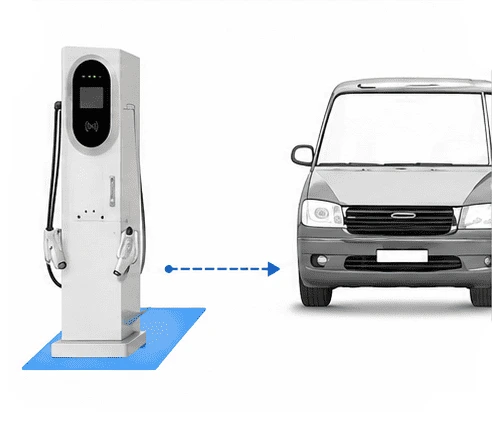

Slim Vehicle-Side Footprint
Ultra-slim dispensers free up valuable parking space for easier maneuvering and safer operations.

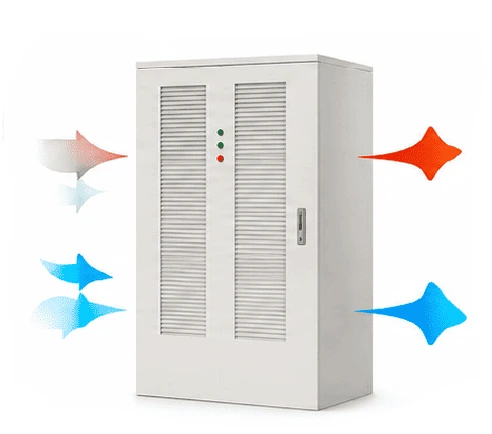

Separate Heat and Noise
Centralised cabinet keeps heat and noise away from drivers and vehicles for a better charging experience.
Flexible Parking Layout
Dispensers can be installed where vehicles park, improving cable reach and site utilization.
Centralized Service Access
All key components are in one cabinet for fast maintenance and lower total cost of ownership.

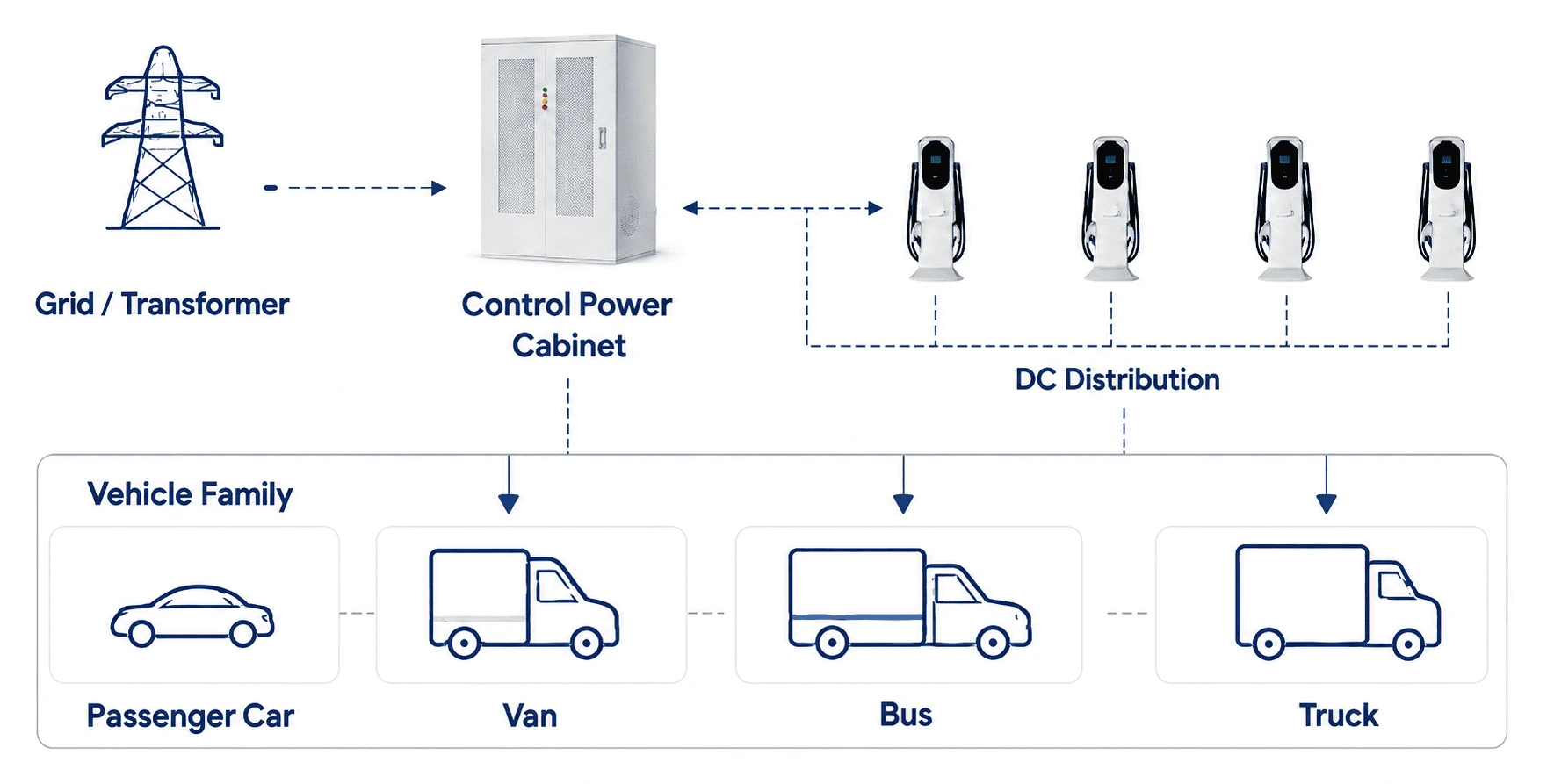

One Central Power Cabinet. Multiple Flexible Charging Points

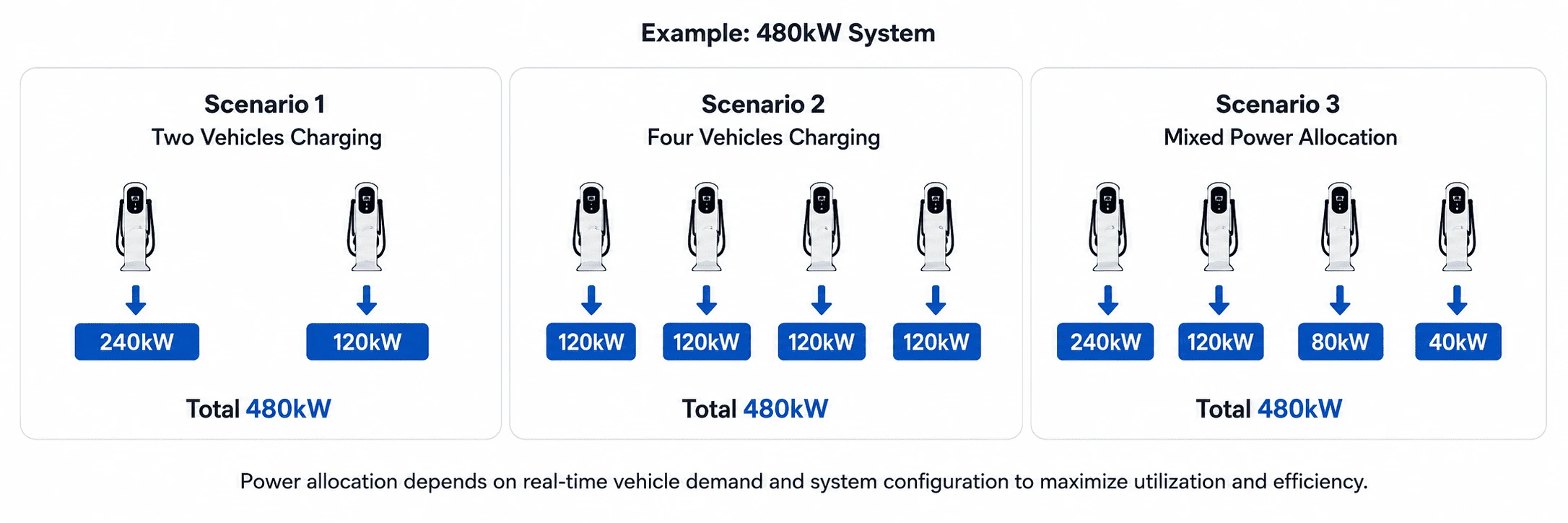

Flexible Power Routing According to Real-Time Vehicle Demand
Technical Specifications
| Parameter | Main Cabinet | Standard Terminal |
|---|---|---|
| Rated Power | 240kW | 250A |
| Equipment Dimension | 1000*800*2000 mm | 400*240*1500mm |
| Input Voltage | AC380V±15% | DC 50-750V/50-1000V |
| Input Current | 0-480A | 5-250A |
| Output Voltage Range | DC 200- (750) 1000 VDC | DC 200- (750) 1000 VDC |
| Output Current | DC 750V(5-600A) DC 1000V(5-800A) | 5-250A |

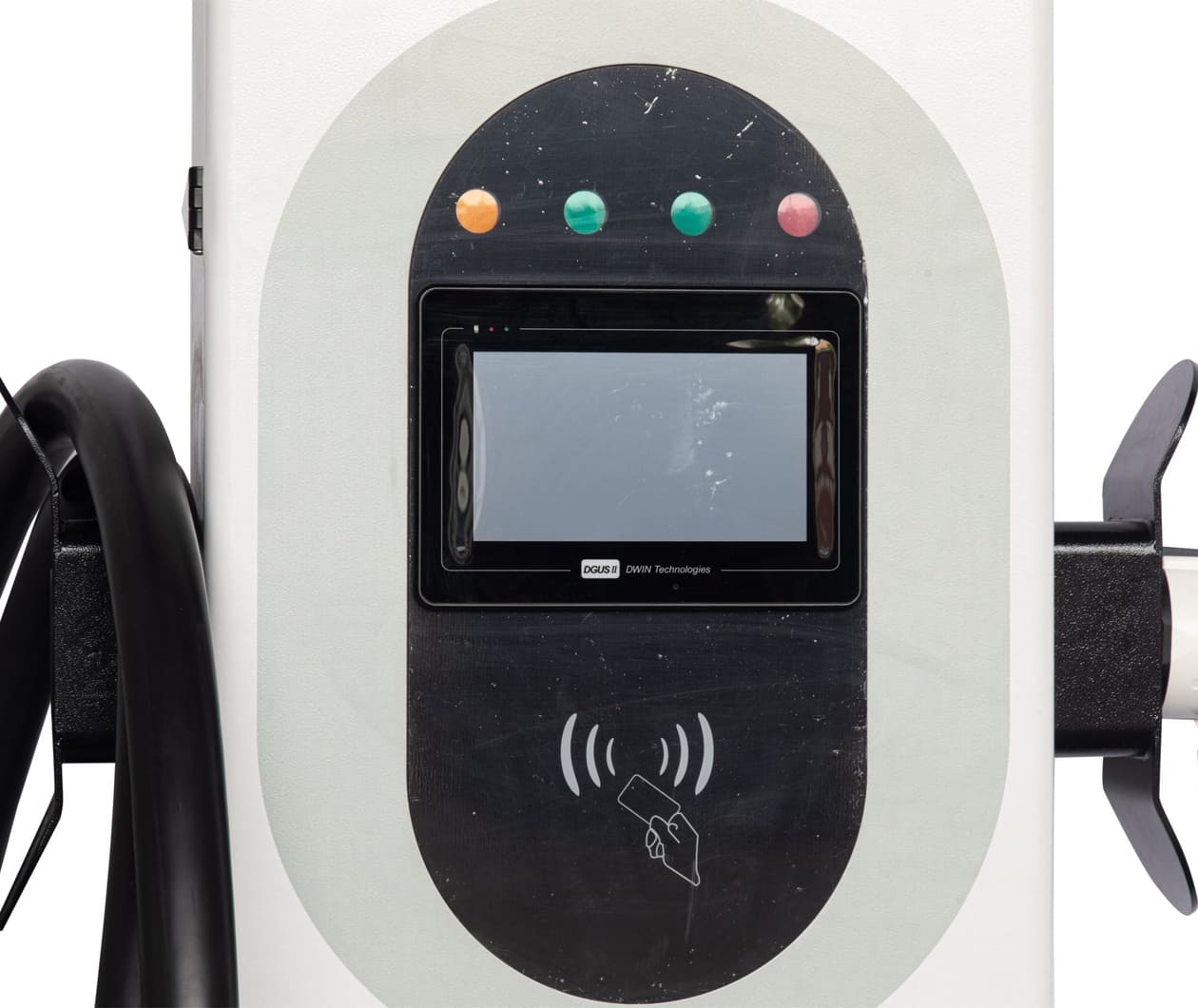

| HMI | LED Indicator | 7-inch bright color touch screen |
| Network Way | / | Ethernet / 4G |
| Parameter | Main Cabinet | Standard Terminal |
|---|---|---|
| Rated Power | 360kW | 250A |
| Equipment Dimension | 1000*800*2000 mm | 400*240*1500mm |
| Input Voltage | AC380V±15% | DC 50-750V/50-1000V |
| Input Current | 0-720A | 5-250A |
| Output Voltage Range | DC 200- (750) 1000 VDC | DC 200- (750) 1000 VDC |
| Output Current | DC 750V(5-900A) DC 1000V(5-1200A) |
5-250A |
| HMI | LED Indicator | 7-inch bright color touch screen |
| Network Way | / | Ethernet / 4G |
| Parameter | Main Cabinet | Standard Terminal |
|---|---|---|
| Rated Power | 480kW | 250A |
| Equipment Dimension | 1000*800*2000 mm | 400*240*1500mm |
| Input Voltage | AC380V±15% | DC 50-750V/50-1000V |
| Input Current | 0-960A | 5-250A |
| Output Voltage Range | DC 200- (750) 1000 VDC | DC 200- (750) 1000 VDC |
| Output Current | DC 750V(5-1200A) DC 1000V(5-1600A) |
5-250A |
| HMI | LED Indicator | 7-inch bright color touch screen |
| Network Way | / | Ethernet / 4G |
| Parameter | Main Cabinet | Standard Terminal |
|---|---|---|
| Rated Power | 600kW | 250A |
| Equipment Dimension | 1300*1000*2200 mm | 400*240*1500mm |
| Input Voltage | AC380V±15% | DC 50-750V/50-1000V |
| Input Current | 0-1200A | 5-250A |
| Output Voltage Range | DC 200- (750) 1000 VDC | DC 200- (750) 1000 VDC |
| Output Current | DC 750V(5-1500A) DC 1000V(5-2000A) |
5-250A |
| HMI | LED Indicator | 7-inch bright color touch screen |
| Network Way | / | Ethernet / 4G |
| Parameter | Main Cabinet | Standard Terminal |
|---|---|---|
| Rated Power | 720kW | 250A |
| Equipment Dimension | 1300*1000*2200 mm | 400*240*1500mm |
| Input Voltage | AC380V±15% | DC 50-750V/50-1000V |
| Input Current | 0-1440A | 5-250A |
| Output Voltage Range | DC 200- (750) 1000 VDC | DC 200- (750) 1000 VDC |
| Output Current | DC 750V(5-1800A) DC 1000V(5-2400A) |
5-250A |
| HMI | LED Indicator | 7-inch bright color touch screen |
| Network Way | / | Ethernet / 4G |
| Metering Accuracy | 0.5 level |
| Current Limit Protection Value | ≥110% |
| Voltage Stabilization Accuracy | ≤±0.5% |
| Current Stabilization Accuracy | ≤±1% |
| Ripple Ratio | ≤±0.5% |
| Overall Efficiency | Peak Efficiency ≥95% |
| Power Factor | ≥0.99 (above 50% load) |
| Harmonic Content THD | ≤5% (above 50% load) |
| Charging Mode | Automatic charging full / Fixed power / Fixed Amount / Fixed time (Interfacing platform to realize) |
| Charging Method | Swipe card (limited)/ Password(for maintenance) / Scan code / VIN code |
| Mode Of Payment | Credit card / Scan code / Password |
| Operation Mode | Offline no billing, Offline billing, Online billing |
| Communication Protocol | OCPP 1.6J |
| Operative Norm | IEC 61851-1:2017,ICE 62196-2:2016 |
| Working Temperature | -20℃~+50℃, Derating output above 50℃ |
| Working Humidity | ≤95% non-condensing frost |
| Working Altitude | ≤2000m |
| Ingress Protection | IP54 |
| Cooling Method | Forced air cooling |
| Noisy Control | ≤60dB |
| MTBF | 100,000 hours |

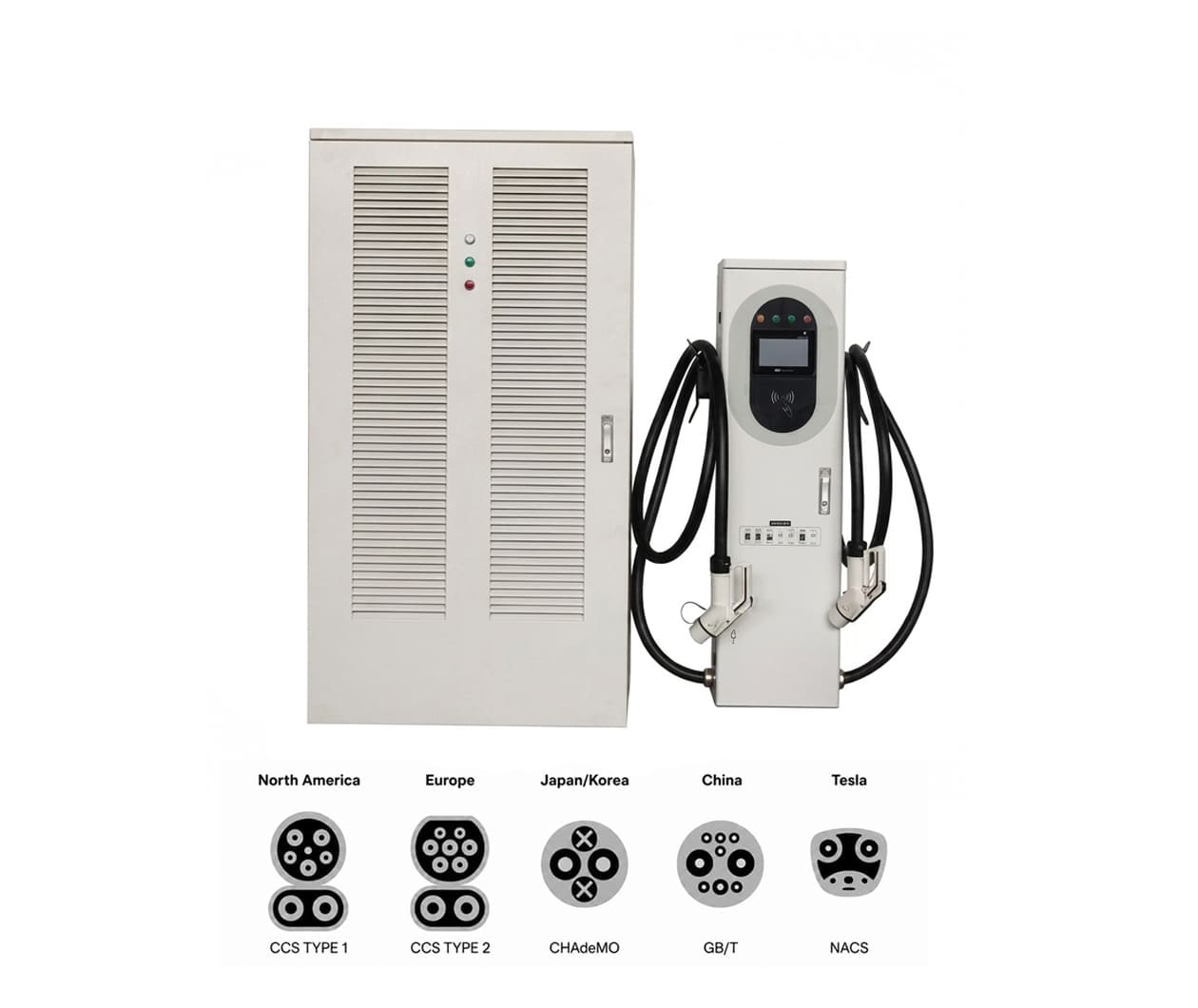

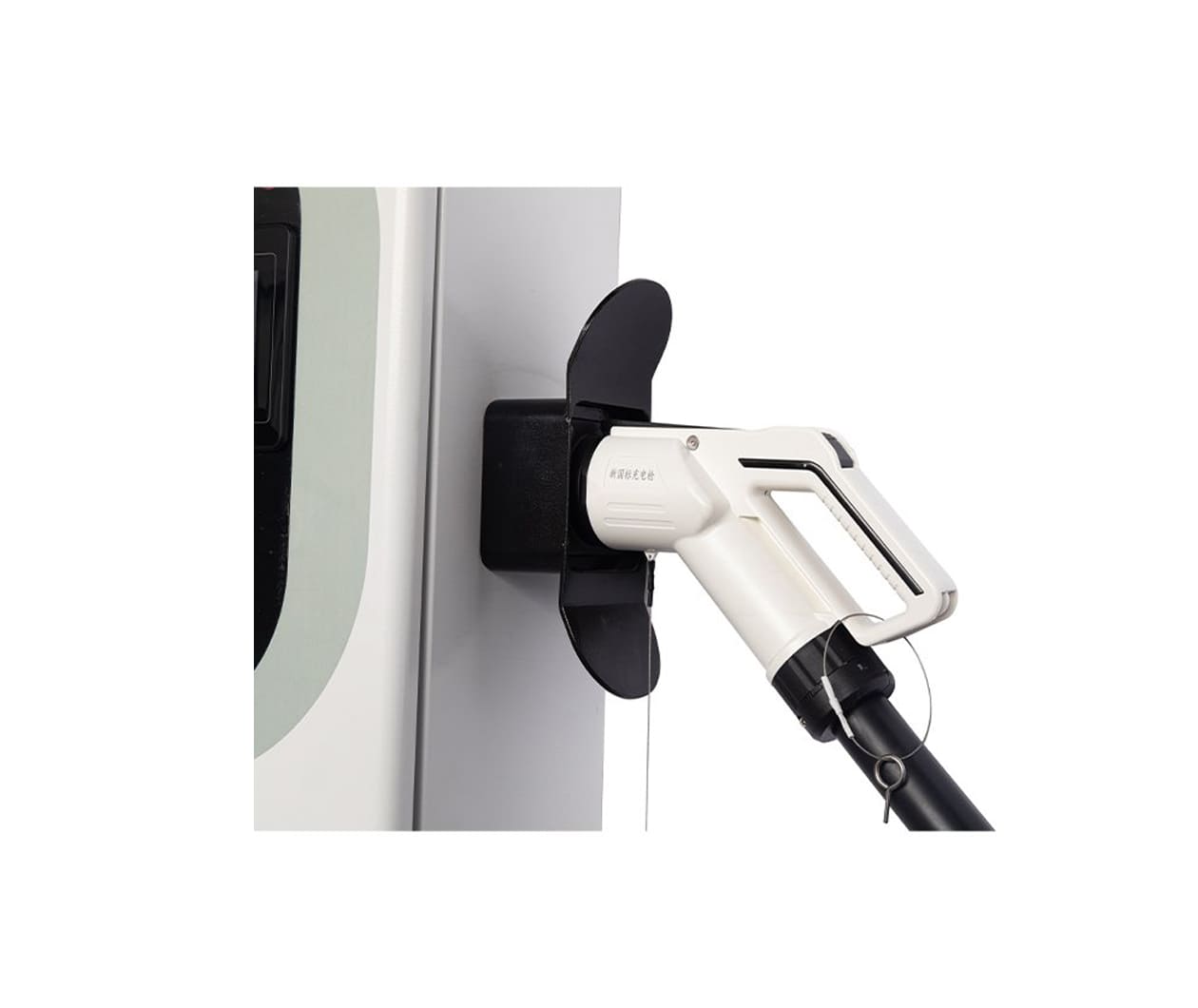

Configurable for Global DC Charging Standards
Select the connector combination and communication configuration according to your target market, local vehicles and project requirements.
Modular Architecture for Faster Service
The charging system is built around independently serviceable power and control components, helping reduce troubleshooting time and unnecessary replacement costs.
Replace Individual Modules
A faulty power module can be diagnosed and replaced separately instead of returning the complete charging station to the factory.
Reduced Downtime
Modular servicing helps maintenance teams restore the charger more quickly and reduces the operational impact of extended station downtime.
Scalable Power Platform
Depending on the product configuration, the charger may use multiple power modules to achieve the required total output, simplifying production, maintenance and future platform expansion.

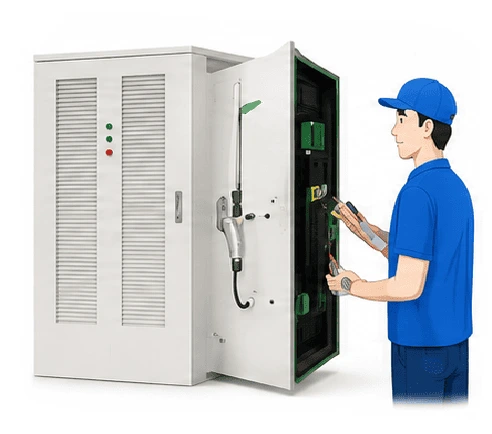

Service-Friendly Cabinet
Front or side maintenance access allows technicians to inspect major components without dismantling the complete enclosure.
Comprehensive Safety Protection
OEM / ODM Customization Services
Logo Printing
Custom silk-screen logo on the charger housing.
Housing Color Customization
Custom housing color options to match brand identity or project design.
RFID Card Design
Dedicated RFID card artwork and branding.
Custom Packaging
Branded carton, internal packaging, and presentation materials.
App Branding
Custom startup page or branded app interface for business operation projects.
Commercial Feature Customization
Project-specific software or access-control configuration depending on technical scope.
Shipment Display
Professional Packaging * Safe Protection * Secure Delivery * Global Shipping
Contact our team for 240kW-720kW split-type DC fast charging system pricing, availability, shipping details and commercial project support.
FAQs
Are you a direct manufacturer or a trading company?
We are a certified, direct industrial manufacturer based in Wuxi, China. We own and operate our state-of-the-art production lines, allowing us to supply high-quality equipment directly to international buyers with factory-direct pricing, strict quality control, and full OEM/ODM customization capabilities.
Can we customize the logos, colors, and technical specifications for our brand?
Absolutely. We provide comprehensive OEM and ODM services for global distributors and EPC contractors. You can customize the exterior enclosure branding (logo, colors, paint finishes), connector configurations, voltage profiles, and firmware communication protocols to strictly match your local market compliance.
What is the typical lead time and shipping method for bulk industrial orders?
The standard production lead time ranges from 15 to 35 days, depending on the order volume and technical customization depth. Due to the heavy-duty industrial nature and weight, we primarily ship via sea freight (FOB/CIF) to global destination ports.
What is the difference between your 30kW/40kW, 60kW-160kW, and 180kW-360kW DC chargers?
We offer multi-tier power configurations engineered for different commercial scenarios:
- 30kW/40kW: Perfect for premium urban retail or small parking lots. It delivers DC fast power (4-6x faster than AC slow charging) without requiring expensive grid transformer upgrades.
- 60kW-160kW: The commercial mainstream with dual-port dynamic power sharing. Ideal for public stations, shopping centers, and urban fleets.
- 180kW-360kW & 480kW-960kW (Liquid-Cooled): Our flagship megawatt supercharging infrastructure. Engineered for highway charging hubs, electric heavy-duty buses, and mining truck networks, enabling next-generation 800V/1000V EVs to top up to 80% in just 5-20 minutes.
Do your DC chargers support standard international cloud billing systems?
Yes. All our DC fast stations natively comply with OCPP 1.6J and OCPP 2.0.1 protocols. They can seamlessly connect to any global third-party charging management backend via Wi-Fi, 4G, or Ethernet to facilitate real-time billing, App QR payments, RFID tracking, and remote OTA software updates.
How do your dual-port systems handle charging two vehicles simultaneously?
Our multi-port stations feature Smart Dynamic Matrix Power Allocation. When two vehicles are plugged in concurrently, the internal control module dynamically balances and dynamically routes the maximum safe current based on each vehicle's real-time BMS request, ensuring high charging efficiency without dropping speeds abruptly.
