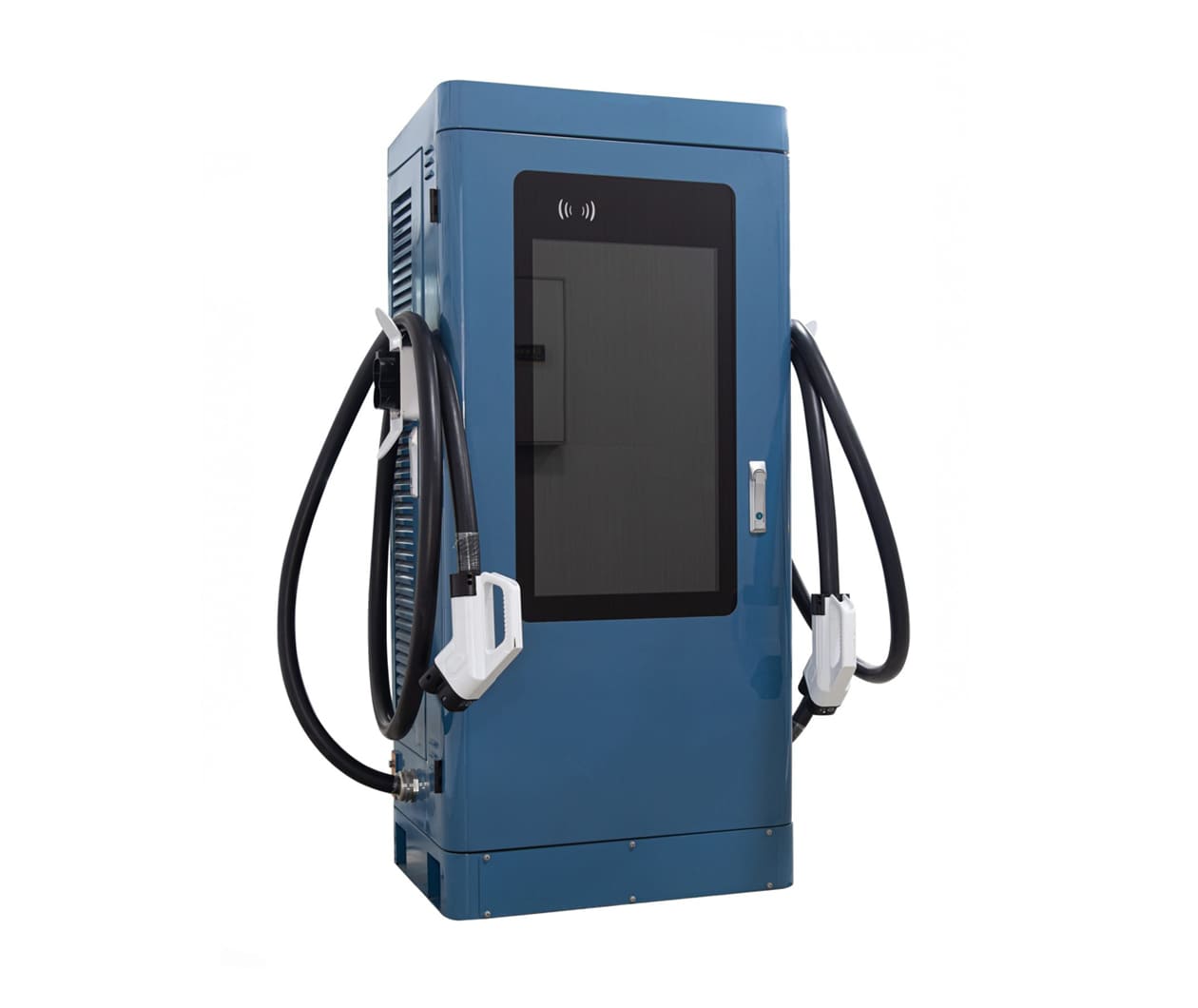

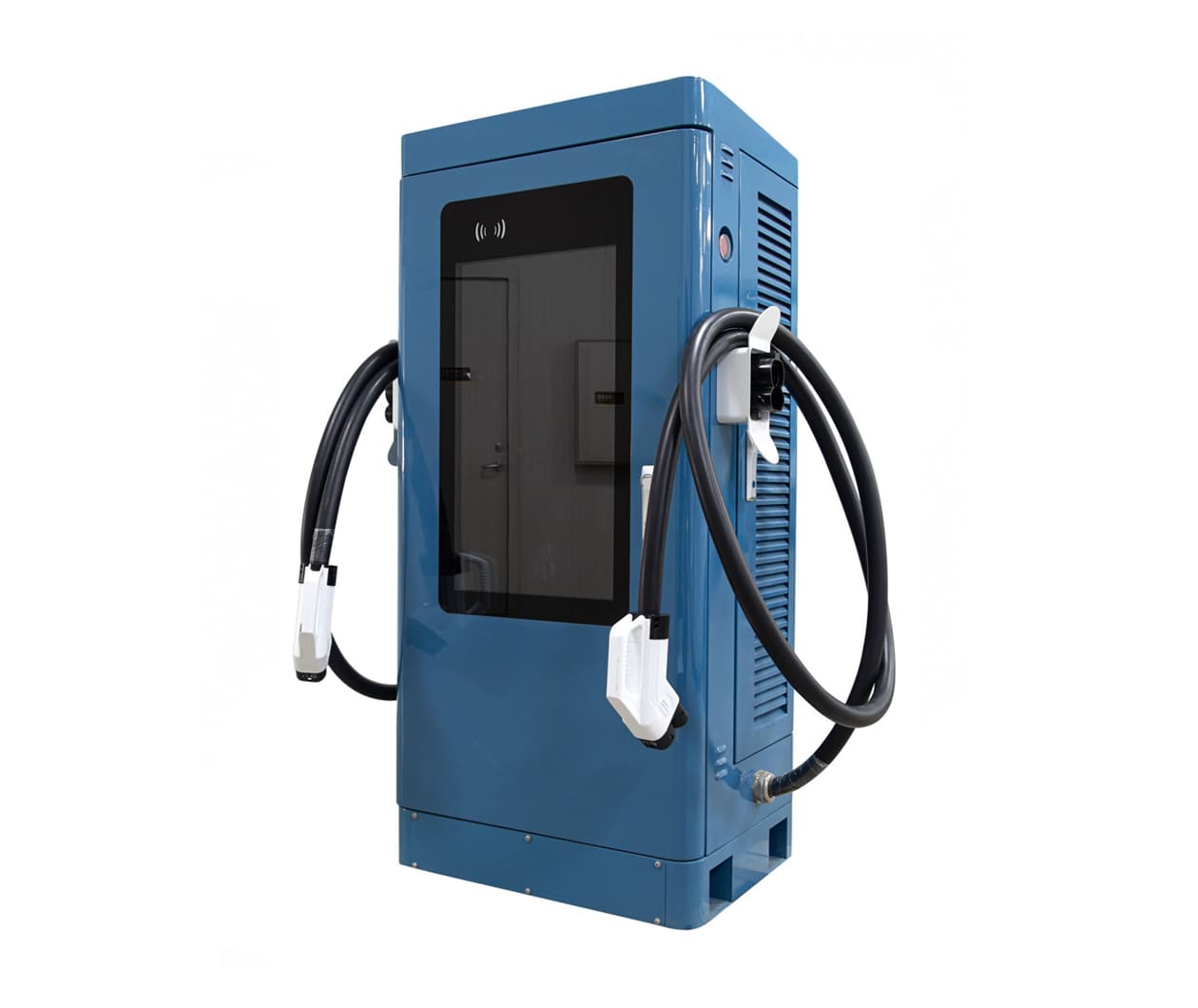

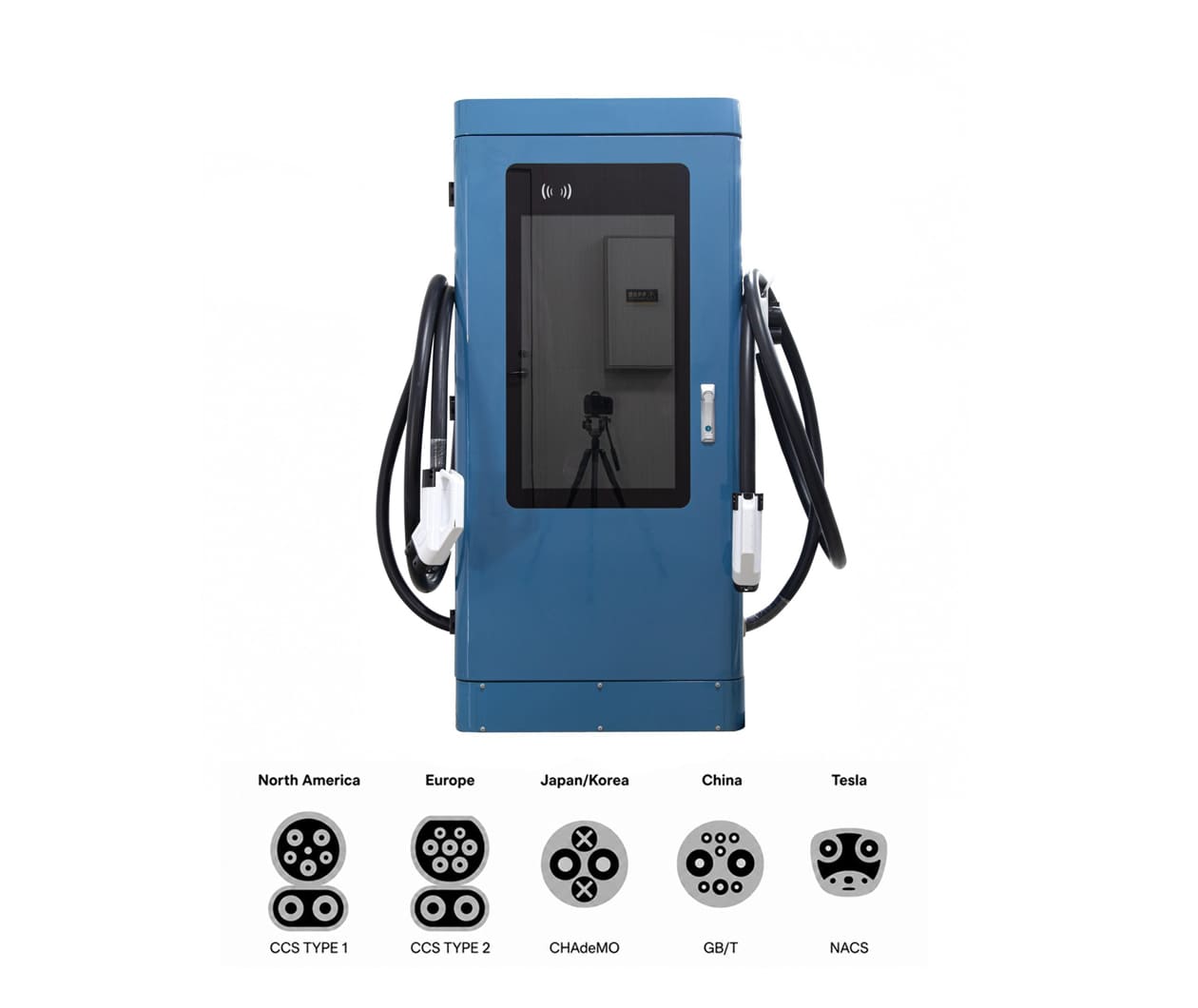

120kW All-in-One DC EV Charger Pillar | Commercial Level 3 Fast Charging
Description
This 120kW DC fast charger is designed for commercial parking facilities, fleet depots, transport hubs and public charging networks. Its all-in-one floor-standing design combines high-power DC charging, user access and remote management in one compact cabinet.
The charger supports a 200–1000V DC output range, dynamic power sharing and OCPP-based backend connectivity. Operators can monitor charging sessions, equipment status, energy consumption, billing records and system alarms through a compatible charging management platform.
Built for High-Demand Commercial Charging Projects
Designed for locations where charging speed, equipment availability and centralized management directly affect fleet efficiency and station revenue.
Hotels & Premium Properties
Offer convenient fast charging without compromising the visual quality of the property.
Airports & Transport Hubs
Support high vehicle turnover and centralized station management in busy transport environments.
Retail & Business Districts
Improve customer experience and create additional charging and advertising revenue opportunities.
Public Charging Networks
Deploy a consistent, branded charging experience across multiple commercial locations.

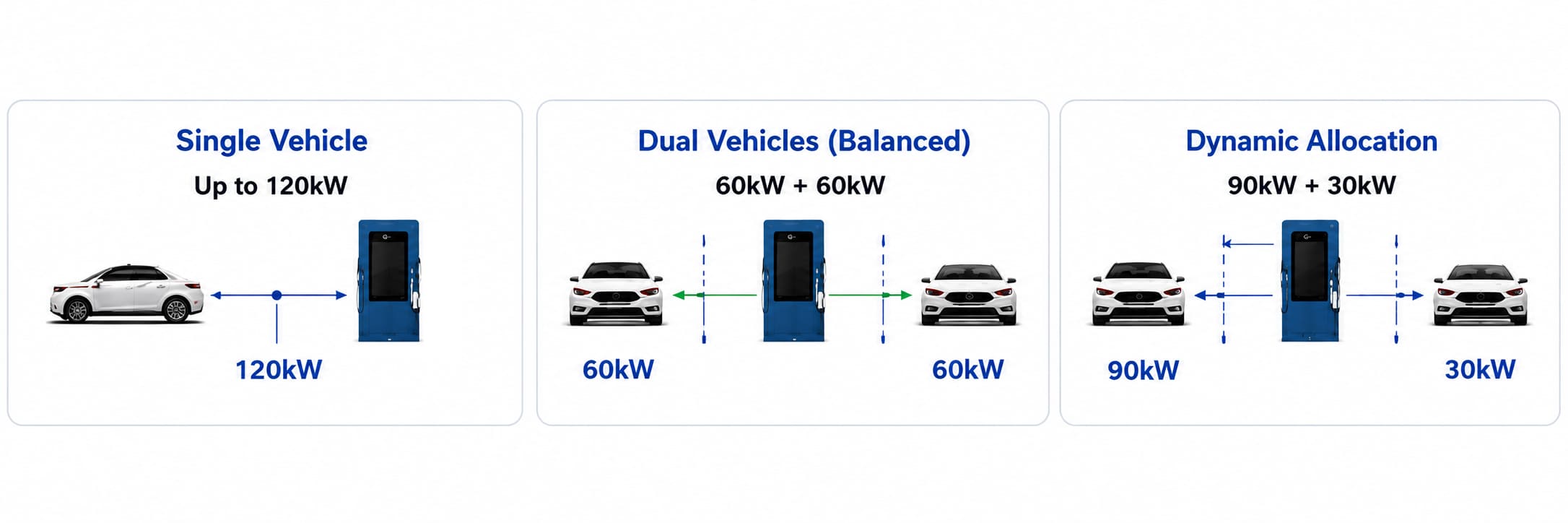

Intelligent Power Sharing for Higher Station Utilization

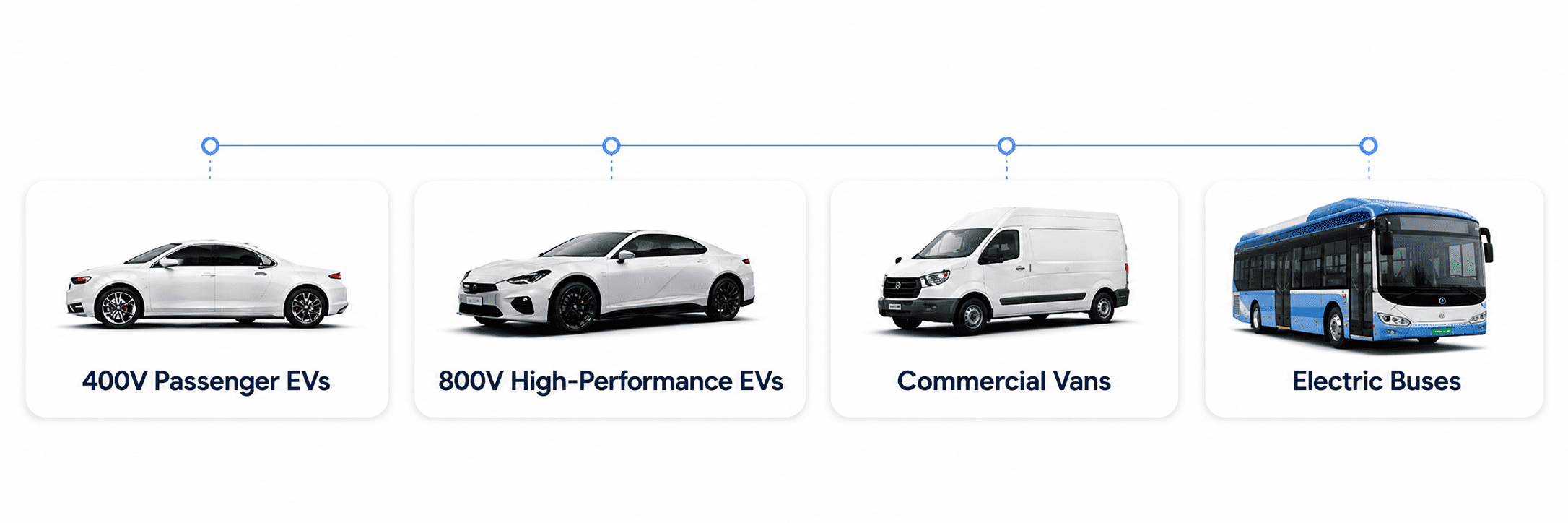

200V–1000V Wide-Voltage Charging Platform
The 200–1000V DC output range supports a wide variety of passenger EV and commercial vehicle platforms, subject to connector and vehicle compatibility.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Power | 120kW |
| Input Voltage | AC380V±15% |
| Output Voltage | 200-（750 ）1000VDC |
| Single Gun Output Current Range | 0-200A |
| Input Frequency | 50 Hz ±10% |
| Current Limit Protection Value | ≥110% |
| Voltage Stabilization Accuracy | ≤±0.5% |
| Current Stabilization Accuracy | ≤±1% |
| Ripple Ratio | ≤±0.5% |
| Efficiency | ≥95% |
| Power Factor | ≥0.99 (above 50% load） |
| Harmonic Content THD | ≤5% (above 50% load） |
| Metering Accuracy | 1.0 Level |
| HMI | 32- inch highlight color touch screen |
| Charging Mode | Automatic charging full / Fixed power / Fixed Amount / Fixed time |
| Charging Method | Swipe Card / Scan code |
| Mode Of Payment | Credit card / Scan code |
| Operation Mode | Offline no billing, offline billing, online billing |
| Networking Method | Ethernet, 4G, WIFI |
| Communication Protocol | OCPP 1.6J |
| Dynamic Load Balancing | Supported |
| Operative Norm | IEC61851-1-2017；IEC62196-2: 2016 |
| Working Temperature | -20℃~+50℃ |
| Working Humidity | 5%–95% RH, non-condensing |
| Ingress Protection | IP54 |
| Cooling Method | Air-cooled |
| Noisy Level | ≤60dB |
| MTBF | 30,000 hours |
| Installation Method | Floor-standing installation |
| Feeding Method | Bottom in and bottom out |
| Equipment Dimension | 1620*750*560 mm |
| Cable Length | 5m ( Optional ) |

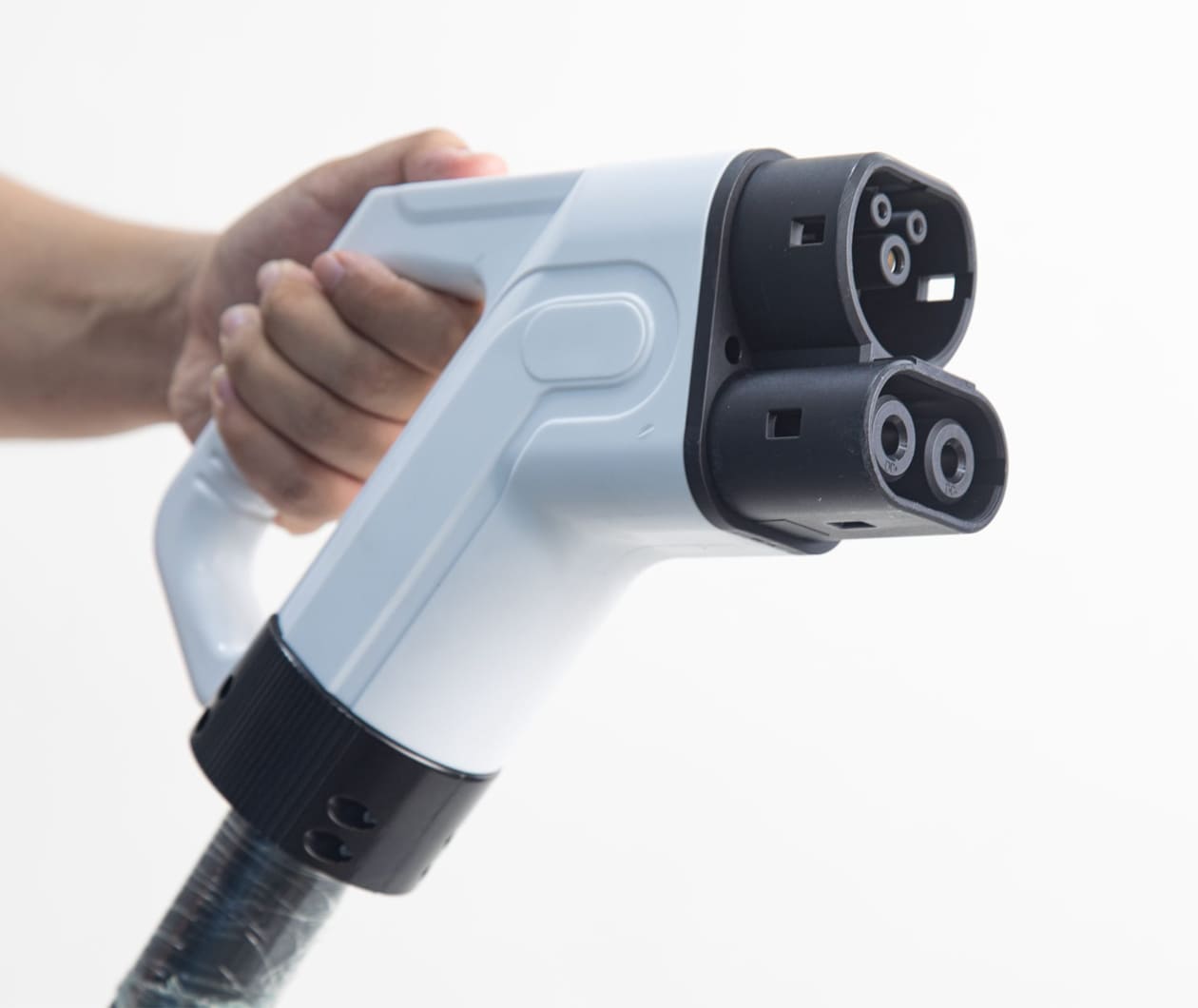

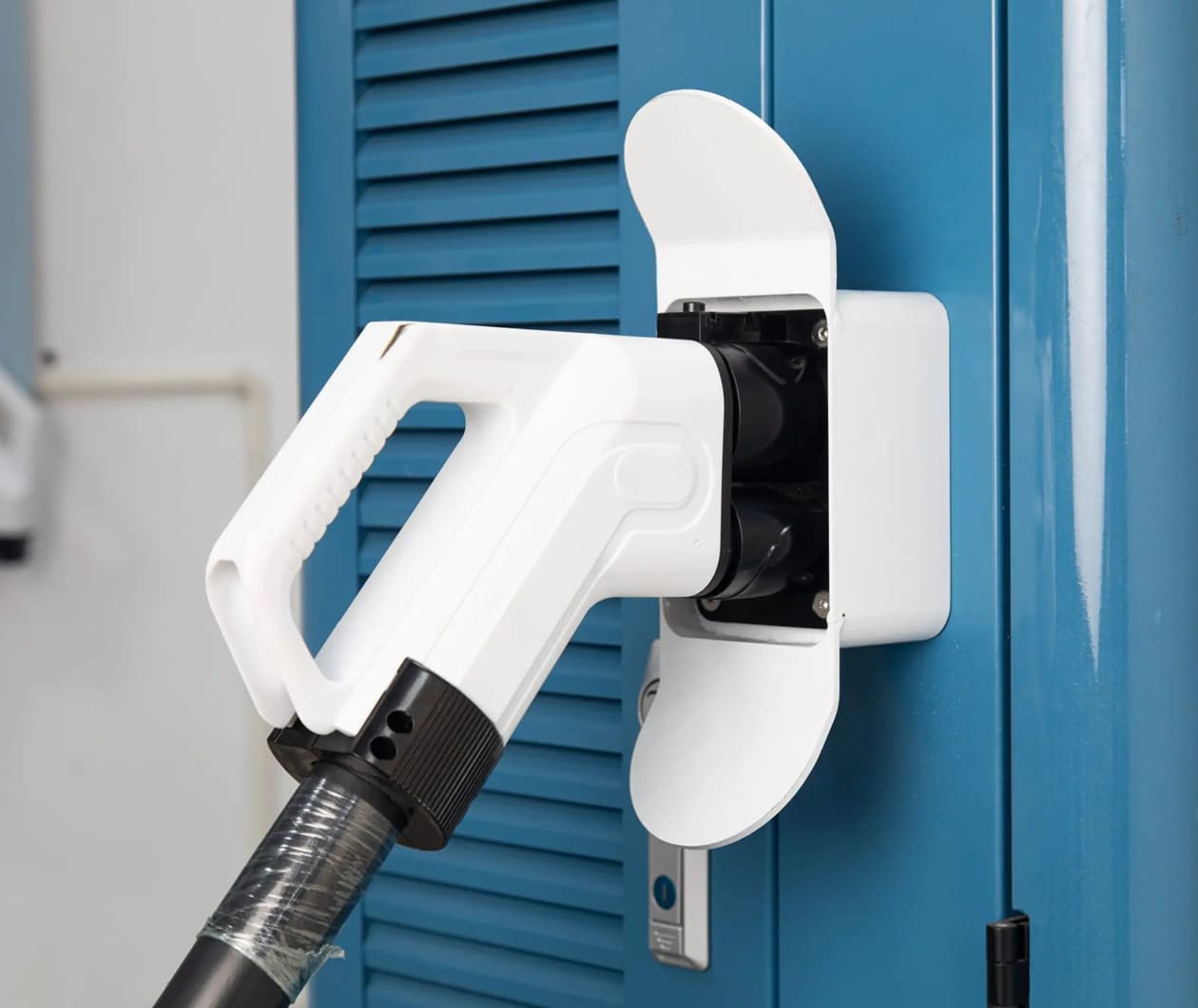

Configurable for Global DC Charging Standards
Select the connector combination and communication configuration for 120kW DC fast charger according to your target market, local vehicles and project requirements.
Modular Architecture for Faster Service
The 120kW DC fast charger charging system is built around independently serviceable power and control components, helping reduce troubleshooting time and unnecessary replacement costs.
Replace Individual Modules
A faulty power module can be diagnosed and replaced separately instead of returning the complete charging station to the factory.
Reduced Downtime
Modular servicing helps maintenance teams restore the charger more quickly and reduces the operational impact of extended station downtime.
Scalable Power Platform
Depending on the product configuration, the charger may use multiple power modules to achieve the required total output, simplifying production, maintenance and future platform expansion.
Service-Friendly Cabinet
Front or side maintenance access allows technicians to inspect major components without dismantling the complete enclosure.
Comprehensive Safety Protection
OEM / ODM Customization Services
Logo Printing
Custom silk-screen logo on the charger housing.
Housing Color Customization
Custom housing color options to match brand identity or project design.
RFID Card Design
Dedicated RFID card artwork and branding.
Custom Packaging
Branded carton, internal packaging, and presentation materials.
App Branding
Custom startup page or branded app interface for business operation projects.
Commercial Feature Customization
Project-specific software or access-control configuration depending on technical scope.
Shipment Display
Professional Packaging * Safe Protection * Secure Delivery * Global Shipping

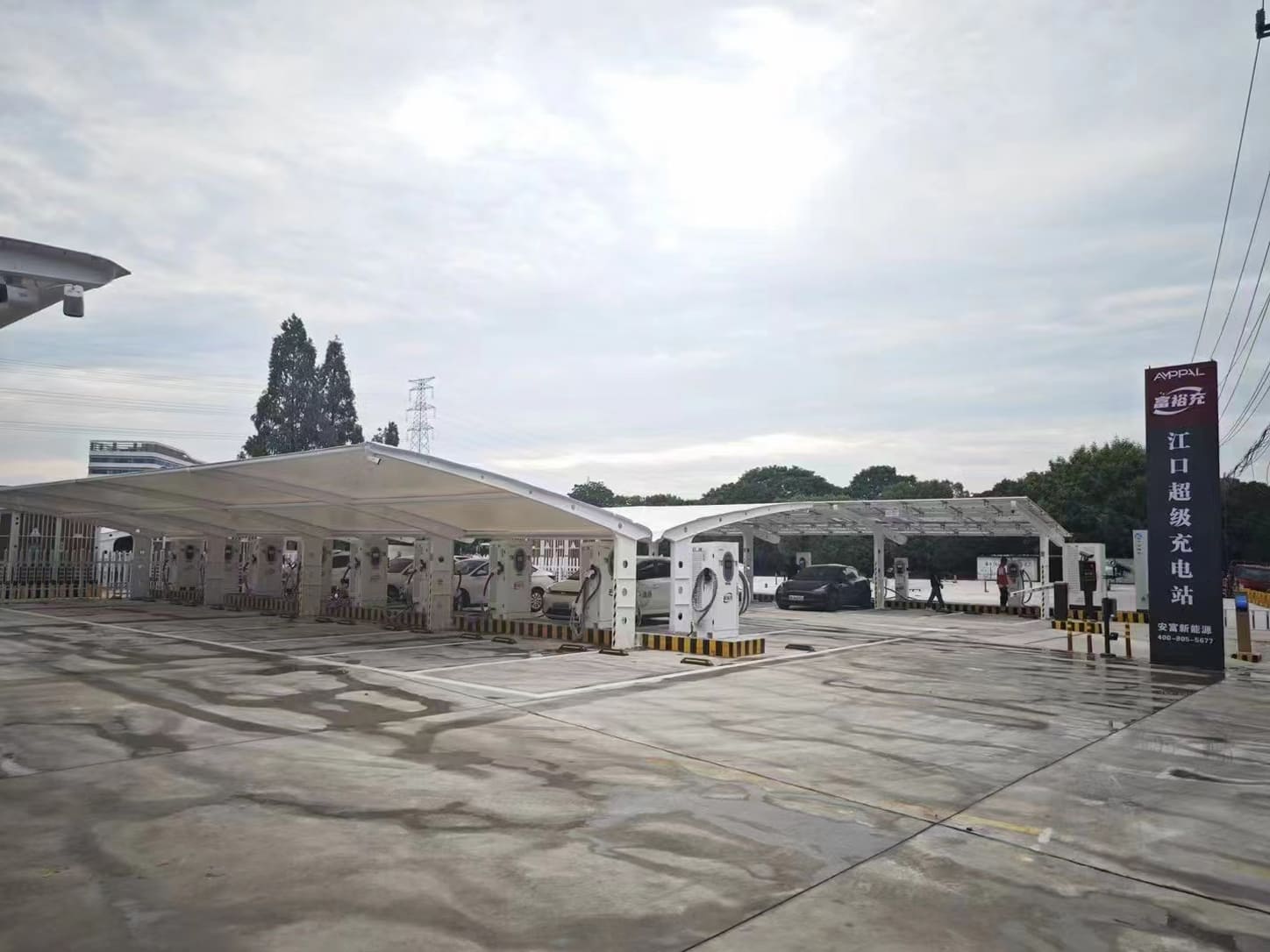

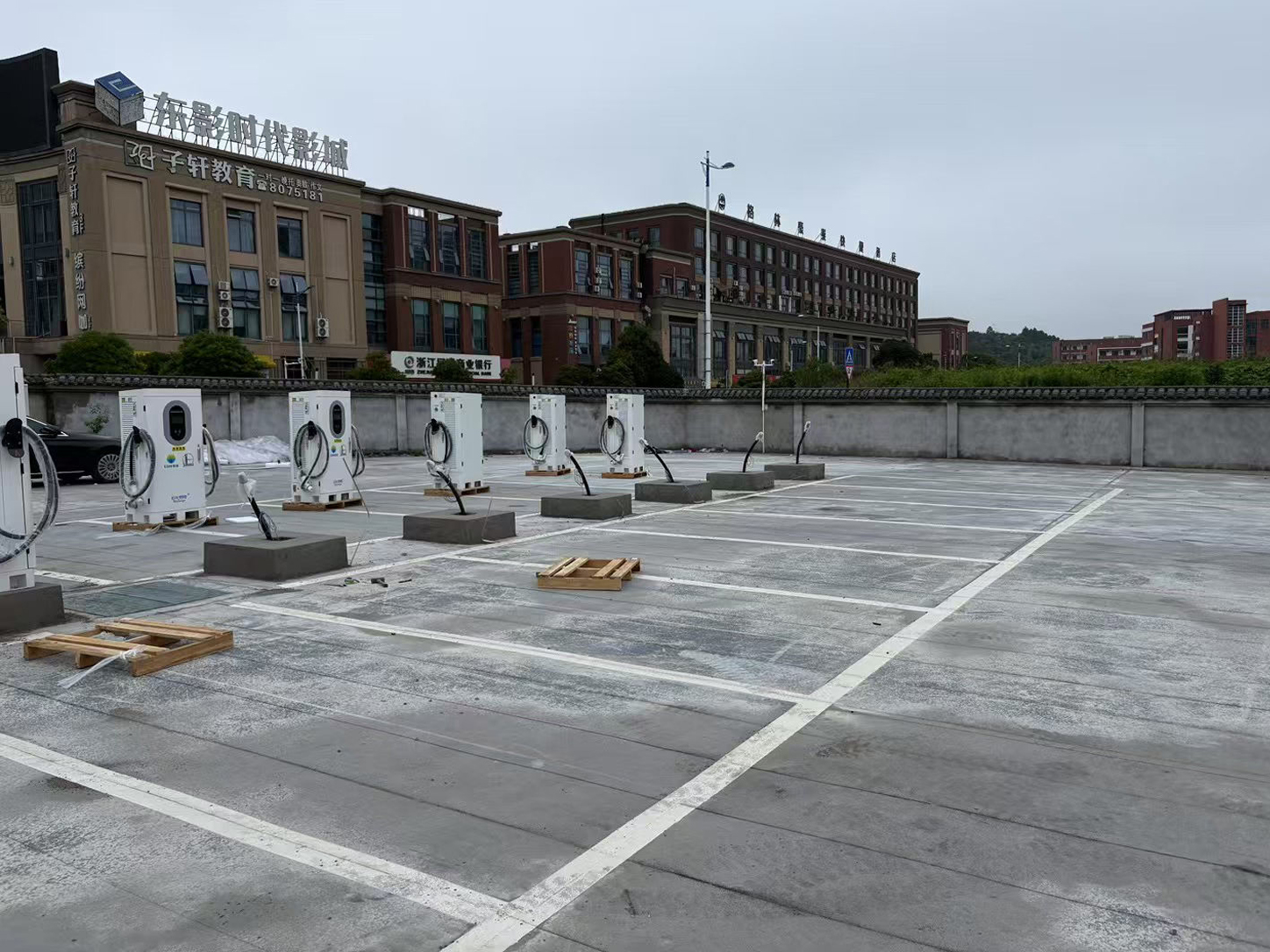

Project Cases
Contact HB Charger for 120kW DC fast charger specifications, connector options and project pricing.
FAQs
Are you a direct manufacturer or a trading company?
We are a certified, direct industrial manufacturer based in Wuxi, China. We own and operate our state-of-the-art production lines, allowing us to supply high-quality equipment directly to international buyers with factory-direct pricing, strict quality control, and full OEM/ODM customization capabilities.
Can we customize the logos, colors, and technical specifications for our brand?
Absolutely. We provide comprehensive OEM and ODM services for global distributors and EPC contractors. You can customize the exterior enclosure branding (logo, colors, paint finishes), connector configurations, voltage profiles, and firmware communication protocols to strictly match your local market compliance.
What is the typical lead time and shipping method for bulk industrial orders?
The standard production lead time ranges from 15 to 35 days, depending on the order volume and technical customization depth. Due to the heavy-duty industrial nature and weight, we primarily ship via sea freight (FOB/CIF) to global destination ports.

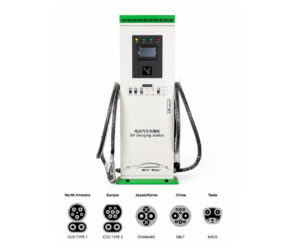

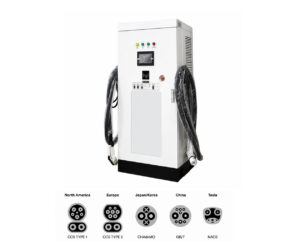

What is the difference between your 30kW/40kW, 60kW-160kW, and 180kW-360kW DC chargers?
We offer multi-tier power configurations engineered for different commercial scenarios:
- 30kW/40kW: Perfect for premium urban retail or small parking lots. It delivers DC fast power (4-6x faster than AC slow charging) without requiring expensive grid transformer upgrades.
- 60kW-160kW: The commercial mainstream with dual-port dynamic power sharing. Ideal for public stations, shopping centers, and urban fleets.
- 180kW-360kW & 480kW-960kW (Liquid-Cooled): Our flagship megawatt supercharging infrastructure. Engineered for highway charging hubs, electric heavy-duty buses, and mining truck networks, enabling next-generation 800V/1000V EVs to top up to 80% in just 5-20 minutes.
Do your DC chargers support standard international cloud billing systems?
Yes. All our DC fast stations natively comply with OCPP 1.6J and OCPP 2.0.1 protocols. They can seamlessly connect to any global third-party charging management backend via Wi-Fi, 4G, or Ethernet to facilitate real-time billing, App QR payments, RFID tracking, and remote OTA software updates.
How do your dual-port systems handle charging two vehicles simultaneously?
Our multi-port stations feature Smart Dynamic Matrix Power Allocation. When two vehicles are plugged in concurrently, the internal control module dynamically balances and dynamically routes the maximum safe current based on each vehicle's real-time BMS request, ensuring high charging efficiency without dropping speeds abruptly.
