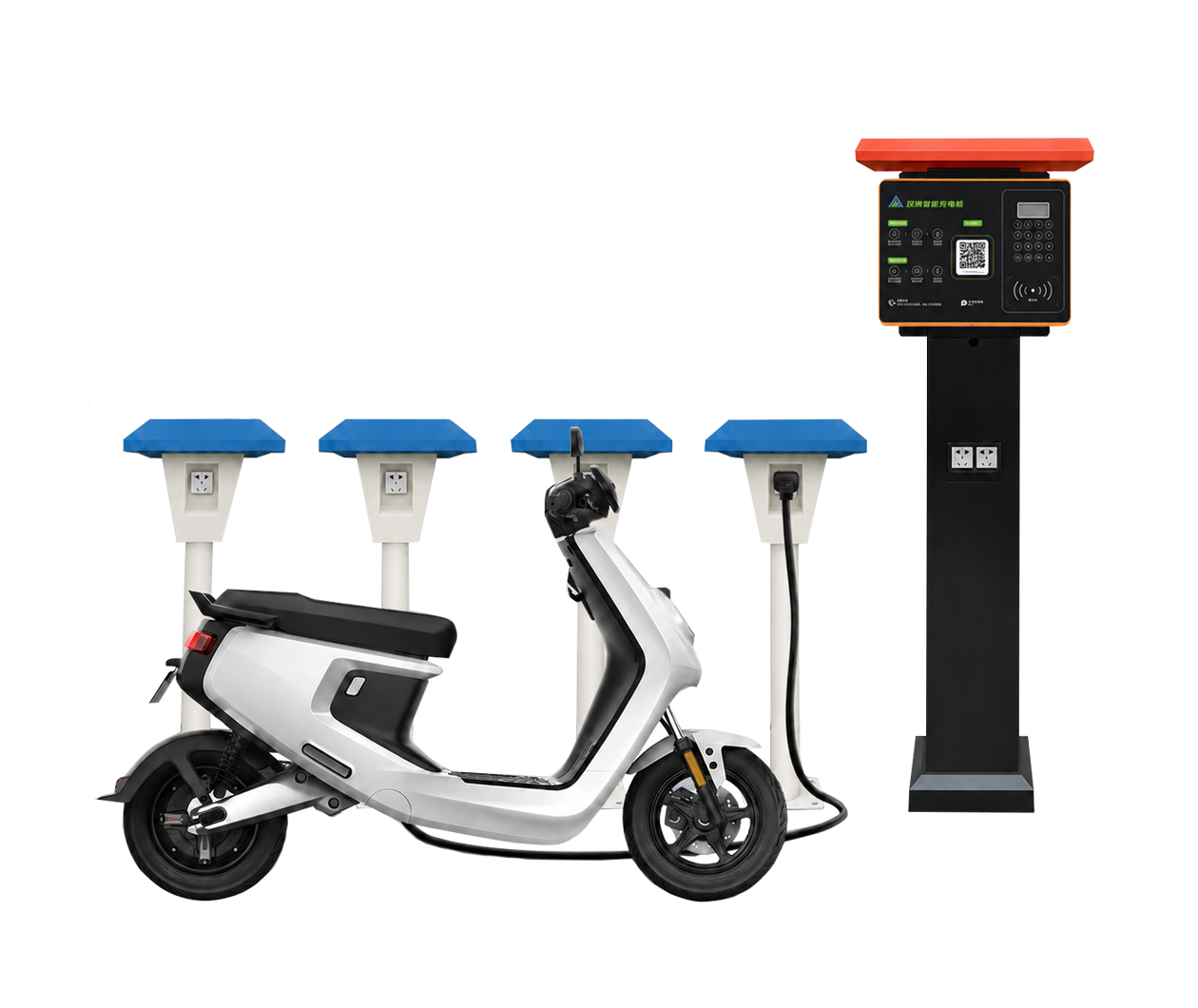

IP65 Waterproof 10-Port Electric Bike Charger Station for Outdoors
Description

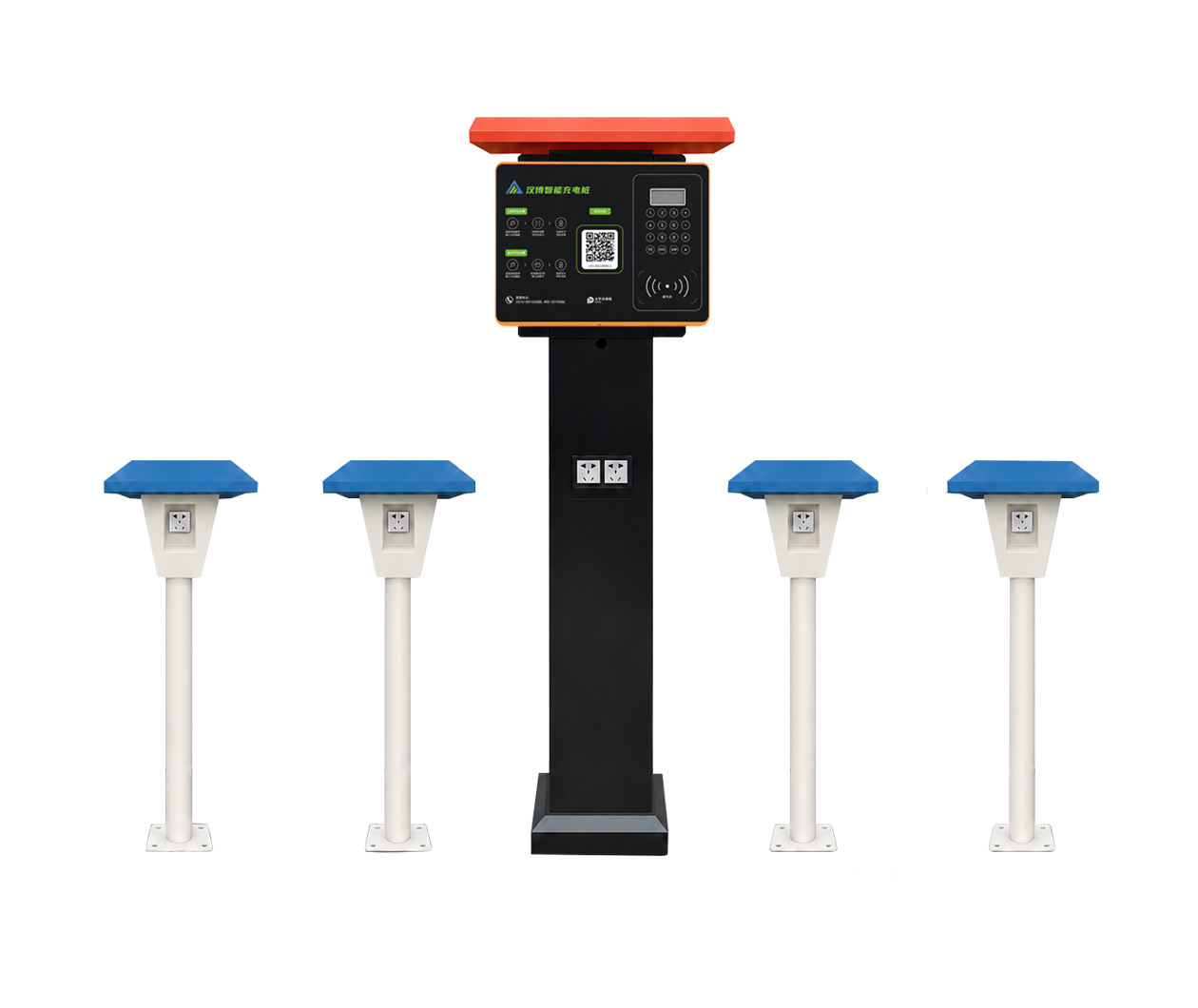

This IP65 10-port e-bike charging station is designed for outdoor public bike parking, delivery fleets, residential communities and commercial charging locations. Its multi-port configuration allows multiple e-bike users to access charging from one compact pedestal unit.
The outdoor enclosure is designed to protect the internal charging and control components from dust and water exposure under the specified IP65 test conditions. Depending on the selected configuration, the station can also support independent outlet control, user authentication, energy metering and remote management.

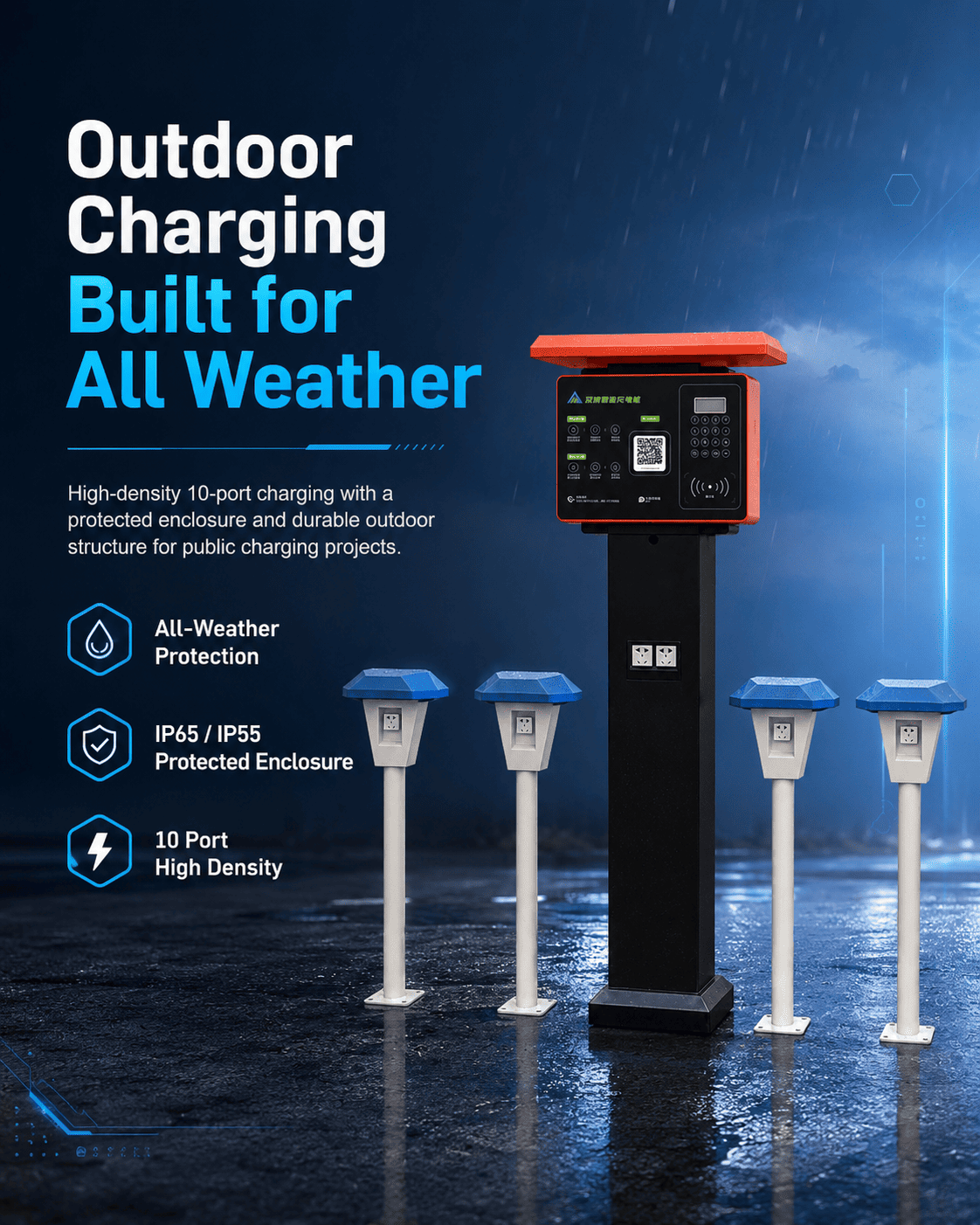

Built for Outdoor Public Charging
Weather-Resistant Structure
Designed with a protective canopy, corrosion-resistant finish, and enclosed electrical compartment for outdoor deployment.
Space-Efficient Layout
Provide charging for up to ten vehicles from one centralized unit while reducing installation footprint.
Centralized User Control
A unified control area supports access, payment, and charging interaction for multiple users.
Project-Ready Engineering
Suitable for property developers, charging operators, municipalities, and public charging tenders.
Electrical and Technical Specifications
| Parameter | Specification |
|---|---|
| Configuration | Floor-stand Pedestal with Heavy-Duty Rain Canopy |
| Rain Canopy / Pedestal Material | Galvanized Steel |
| Protection Rating | IP54 / IP55 / IP65 options |
| Number of Charging Ports | 10 Independent Output Ports |
| Input Voltage | AC 220V |
| Rated Output Power | 5000 |
| Installation Type | Floor-mounted with anchor-bolt fixation |
| Cable Entry | Bottom / Underground Cable Entry |
| Connectivity | 4G LTE / Ethernet / Wi-Fi |
| Number of Charging Ports | 10 |
| Working Temperature | -20℃～+50℃ |
| Dimensions | 330mm×230mm×55mm |

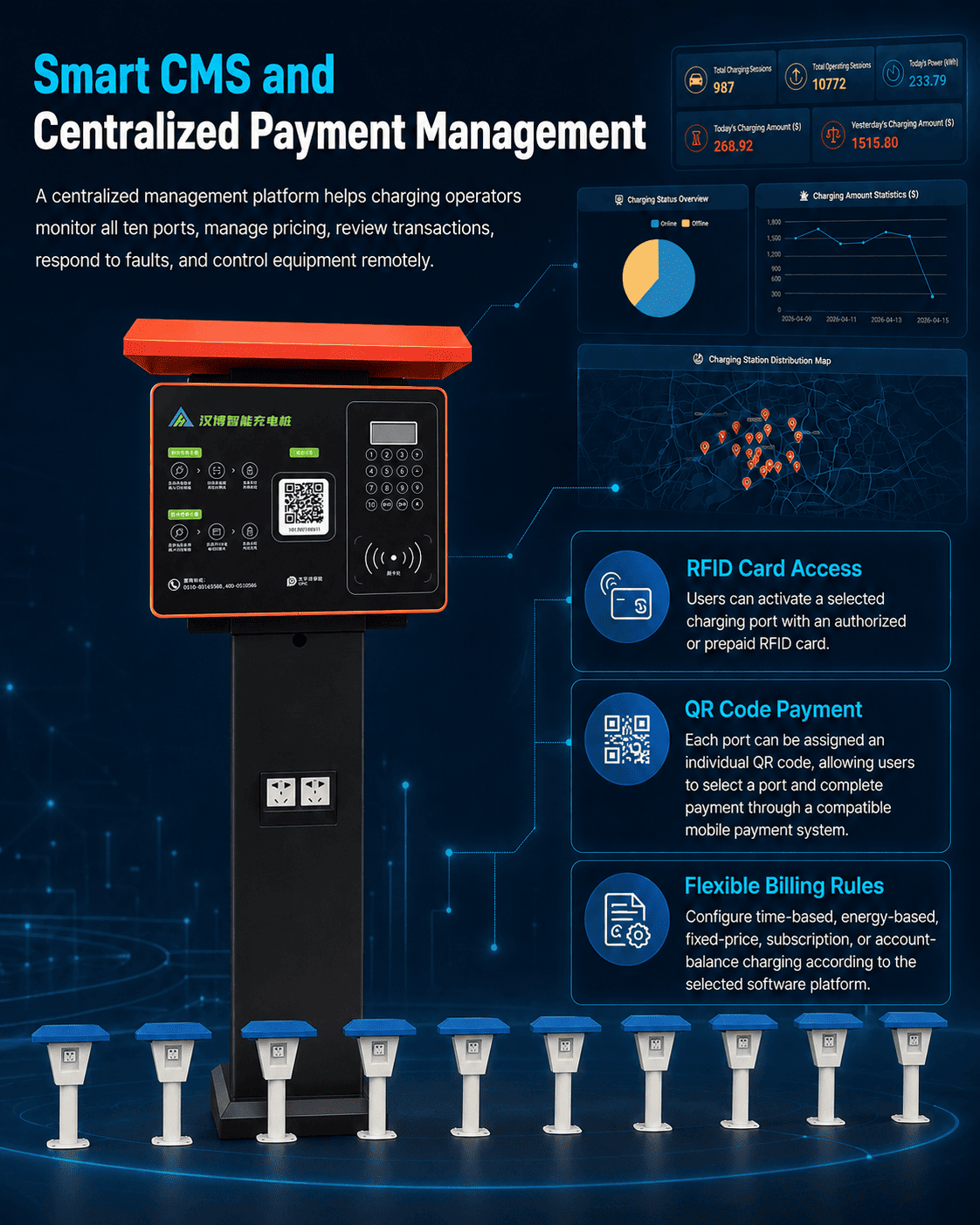

Smart CMS and Centralized Payment Management
A centralized management platform helps charging operators monitor all ten ports, manage pricing, review transactions, respond to faults, and control equipment remotely.
Multi-Layer Protection for High-Concurrency Charging
When multiple vehicles charge simultaneously, the system must control total power, isolate individual channel faults, manage heat, and respond quickly to abnormal electrical conditions.
Intelligent Full-Charge Shut-Off
When the configured full-charge or completion condition is reached, the corresponding channel stops supplying power to help reduce overcharging risk.
No-Load and Unplug Protection
The selected port can remain de-energized when no valid load is detected or after the charger is disconnected, depending on the configured detection system.
Individual Channel Protection
Each output channel uses an independent protection device, helping isolate a fault without shutting down all remaining ports.
Dynamic Overload Protection
The controller monitors the total system load and limits or redistributes output when the configured maximum power is approached.
Over-Current and Short-Circuit Protection
The system responds to abnormal current or short-circuit conditions at the affected channel.
Smoke and Temperature Warning — Optional
Optional smoke detection or internal temperature monitoring can provide early warning and platform alarm linkage.
OEM, ODM and System Integration
Flexible hardware, software, branding, and payment integration services are available for charging operators, distributors, contractors, and large project customers.
Custom Branding
Logo, label, color, and enclosure appearance customization.
Electrical Configuration
Input power, per-port power, breaker arrangement, and wiring configuration according to project requirements.
Payment Integration
QR code, RFID or local payment-system integration.
Software Integration
CMS customization, API integration, protocol adaptation, account management, and reporting functions.
Language Customization
User-interface and instruction-language customization for target markets.
Installation Customization
Outlet arrangement, cable routing, pedestal, canopy, and mounting options.

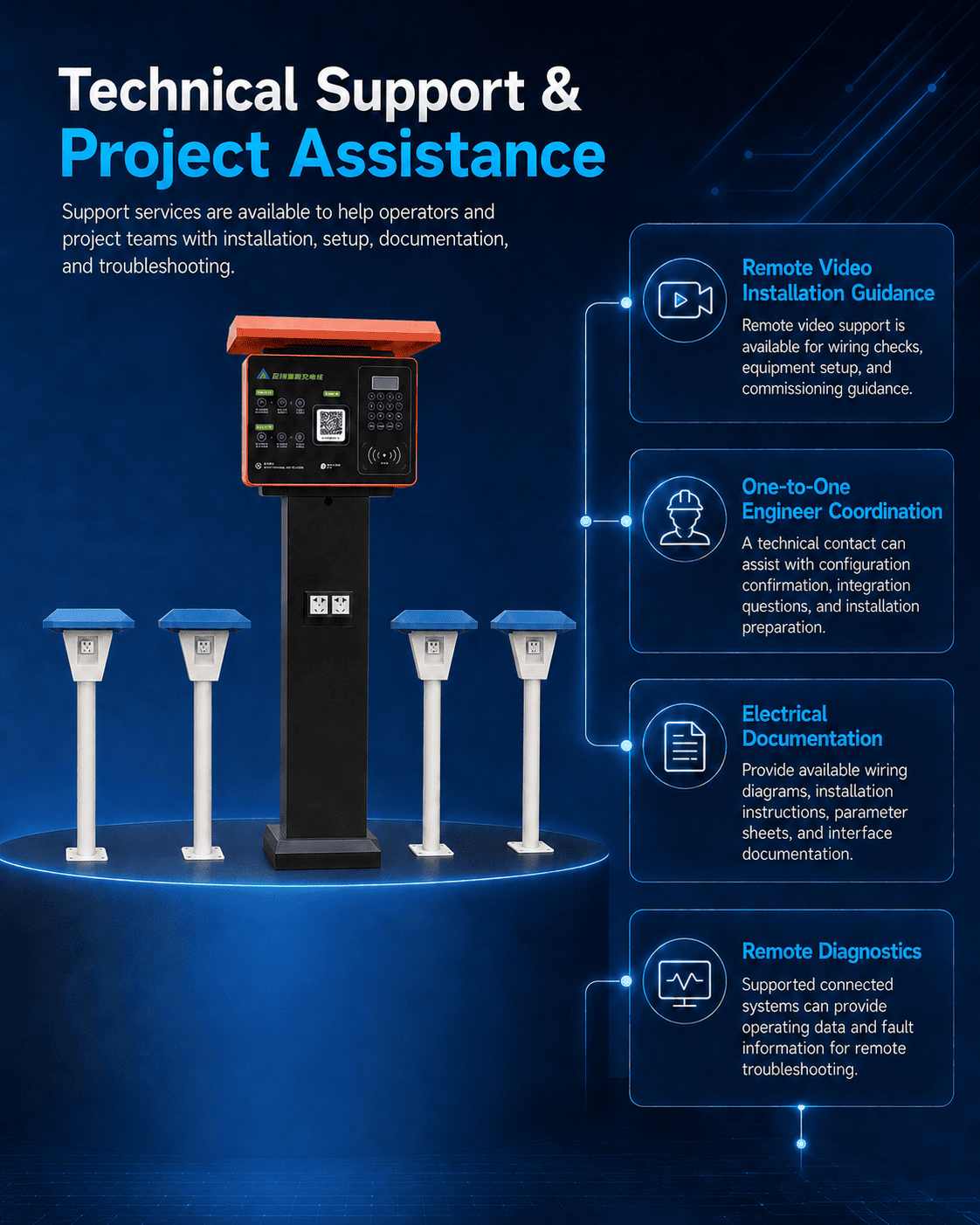

Project Installation and After-Sales Support
From electrical configuration to commissioning and maintenance, project customers can receive structured technical support throughout deployment.
Contact HB Charger for IP65 10-port e-bike charging station specifications and project pricing.
FAQs
Are you a direct manufacturer or a trading company?
We are a certified, direct industrial manufacturer based in Wuxi, China. We own and operate our state-of-the-art production lines, allowing us to supply high-quality equipment directly to international buyers with factory-direct pricing, strict quality control, and full OEM/ODM customization capabilities.
Can we customize the logos, colors, and technical specifications for our brand?
Absolutely. We provide comprehensive OEM and ODM services for global distributors and EPC contractors. You can customize the exterior enclosure branding (logo, colors, paint finishes), connector configurations, voltage profiles, and firmware communication protocols to strictly match your local market compliance.
What is the typical lead time and shipping method for bulk industrial orders?
The standard production lead time ranges from 15 to 35 days, depending on the order volume and technical customization depth. Due to the heavy-duty industrial nature and weight, we primary ship via sea freight (FOB/CIF) to global destination ports.
