10-Port E-Bike Charging Station | Commercial Multi-Channel Charger
Description
This commercial 10-port e-bike charging station provides centralized charging for multiple electric bikes from one compact unit. It is designed for delivery fleets, residential communities, workplaces, campuses and public bike parking areas with high daily charging demand.
The multi-port design helps operators reduce equipment duplication and organize charging points more efficiently. Depending on the selected configuration, the system can support load balancing, independent charging control, user authentication, energy metering and remote management.mand.
Why Choose This Commercial 10-Port E-bike Charging Station?
Lower Deployment Cost
Reduce repeated power wiring, communication modules, installation labor, and mounting requirements compared with multiple standalone charging units.
Higher Space Efficiency
10 charging channels are integrated into one cabinet or control system, making the solution suitable for high-density parking and fleet charging areas.
Unified Operation
Charging status, user access, billing records, alarms, and port control can be managed through one operating platform.
Scalable Commercial Use
Suitable for operators that need to expand charging capacity across multiple sites while maintaining centralized reporting and management.

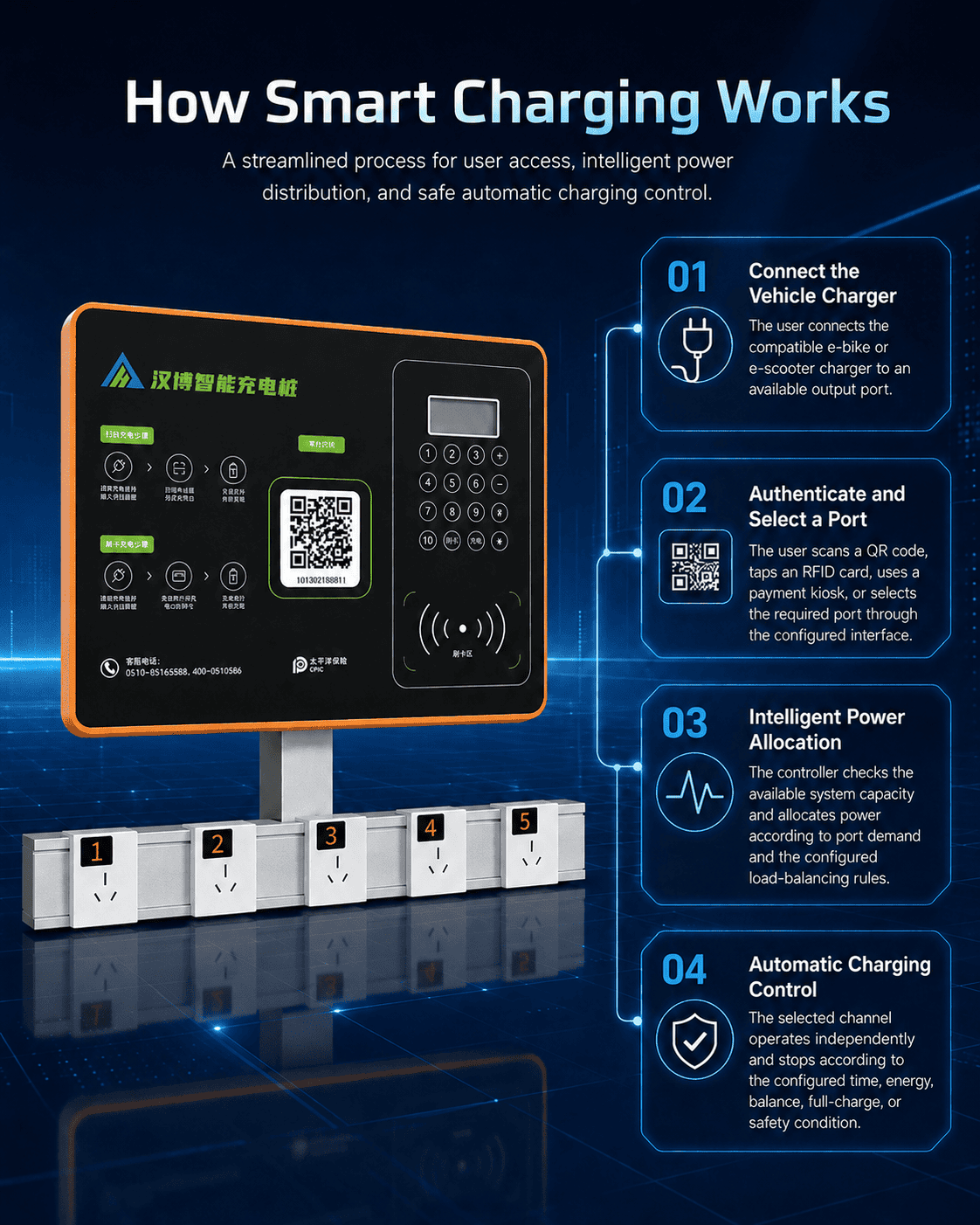

How the 10-Port Charging System Works
The station combines centralized power input, independent port control, user authentication, payment processing, and remote management in one commercial charging system.
Electrical and Technical Specifications
The final electrical configuration should be selected according to the site power supply, number of simultaneously active ports, per-port output requirement, and local installation regulations.
| Parameter | Specification |
|---|---|
| Product Size | 330mm*230mm*55mm |
| Number of Channels | 10 Independent Output Ports |
| Total Input Voltage | AC 220V single-phase |
| Input Frequency | 50Hz / 60Hz |
| Maximum Output per Port | 2.27A |
| Load Management | Intelligent Dynamic Load Balancing |
| Channel Control | Independent Control for Each Port |
| Circuit Protection | Individual Circuit Breaker or Fuse for Each Port |
| Communication | 4G LTE |
| User Access | QR Code / RFID |
| Installation Method | Wall-mounted / Floor-mounted |
| Protection Rating | IP54 / IP55 / IP65 options |
| Operating Temperature | -20℃~50℃ |
| Billing Mode | By power/amount/free (for personal use) |

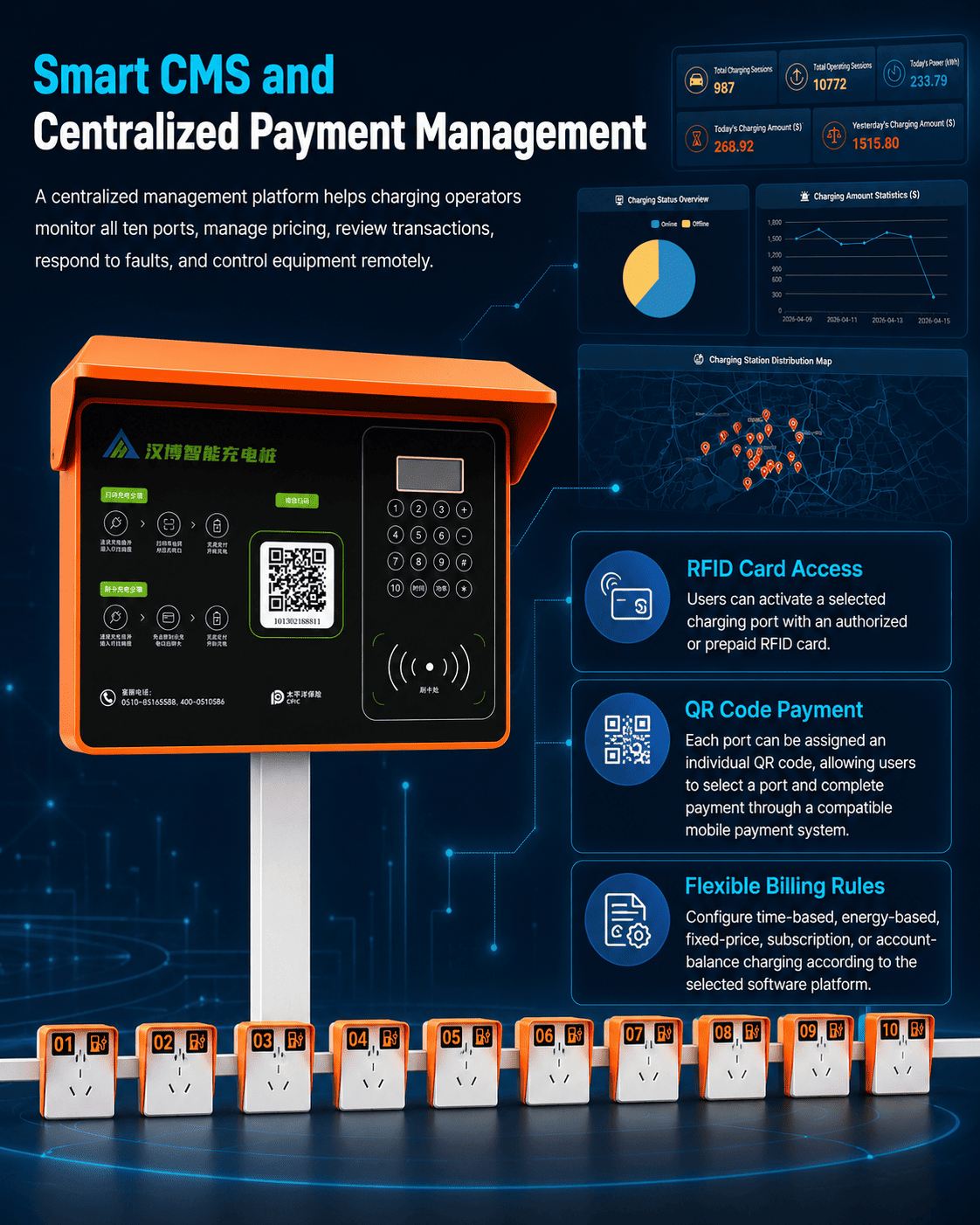

Smart CMS and Centralized Payment Management
A centralized management platform helps charging operators monitor all ten ports, manage pricing, review transactions, respond to faults, and control equipment remotely.
Multi-Layer Protection for High-Concurrency Charging
When multiple vehicles charge simultaneously, the system must control total power, isolate individual channel faults, manage heat, and respond quickly to abnormal electrical conditions.
Intelligent Full-Charge Shut-Off
When the configured full-charge or completion condition is reached, the corresponding channel stops supplying power to help reduce overcharging risk.
No-Load and Unplug Protection
The selected port can remain de-energized when no valid load is detected or after the charger is disconnected, depending on the configured detection system.
Individual Channel Protection
Each output channel uses an independent protection device, helping isolate a fault without shutting down all remaining ports.
Dynamic Overload Protection
The controller monitors the total system load and limits or redistributes output when the configured maximum power is approached.
Over-Current and Short-Circuit Protection
The system responds to abnormal current or short-circuit conditions at the affected channel.
Smoke and Temperature Warning — Optional
Optional smoke detection or internal temperature monitoring can provide early warning and platform alarm linkage.
OEM, ODM and System Integration
Flexible hardware, software, branding, and payment integration services are available for charging operators, distributors, contractors, and large project customers.
Custom Branding
Logo, label, color, and enclosure appearance customization.
Electrical Configuration
Input power, per-port power, breaker arrangement, and wiring configuration according to project requirements.
Payment Integration
QR code, RFID or local payment-system integration.
Software Integration
CMS customization, API integration, protocol adaptation, account management, and reporting functions.
Language Customization
User-interface and instruction-language customization for target markets.
Installation Customization
Outlet arrangement, cable routing, pedestal, canopy, and mounting options.

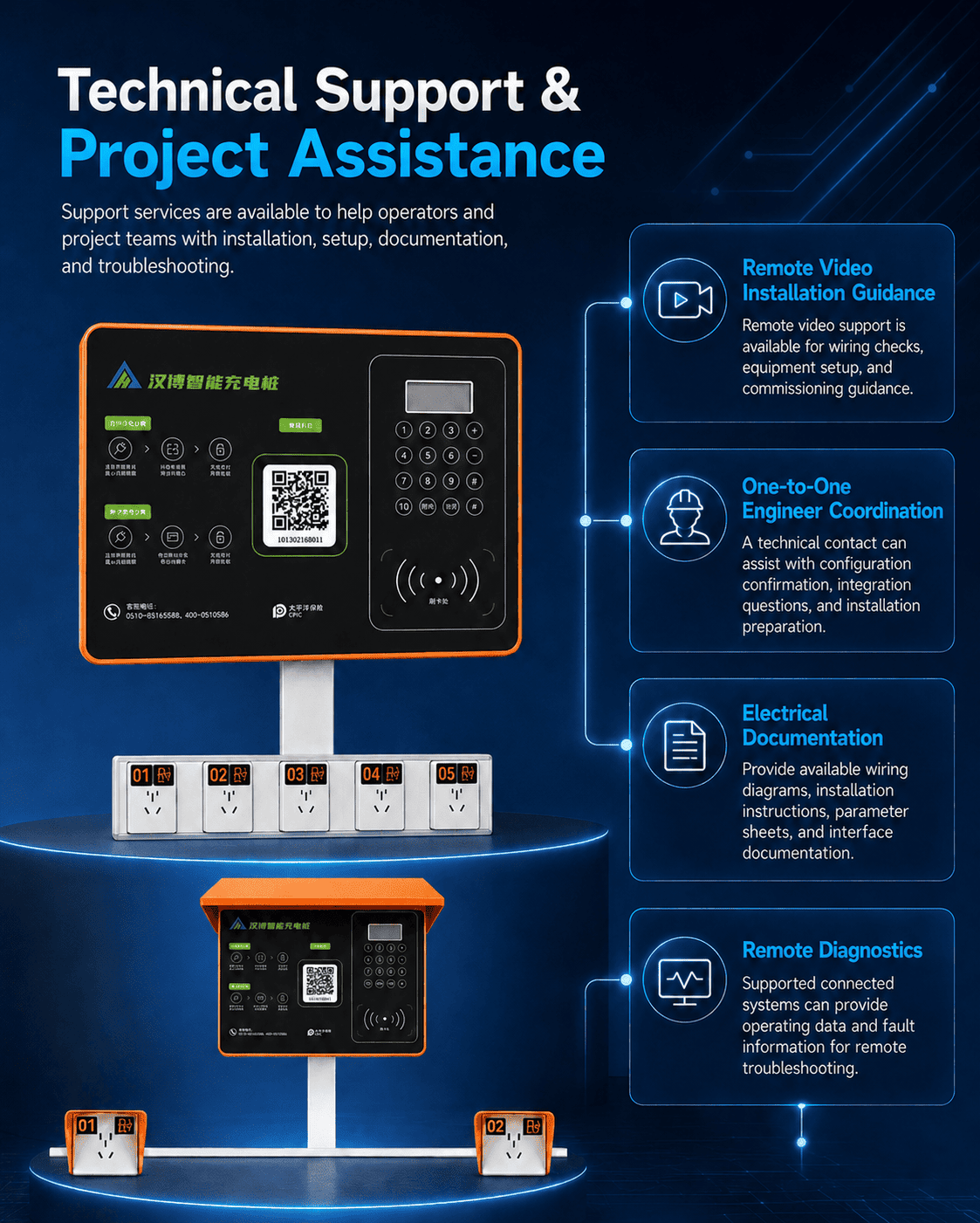

Project Installation and After-Sales Support
From electrical configuration to commissioning and maintenance, project customers can receive structured technical support throughout deployment.
Contact HB Charger fo commercial 10-port e-bike charging station specifications and project pricing.
FAQs
Are you a direct manufacturer or a trading company?
We are a certified, direct industrial manufacturer based in Wuxi, China. We own and operate our state-of-the-art production lines, allowing us to supply high-quality equipment directly to international buyers with factory-direct pricing, strict quality control, and full OEM/ODM customization capabilities.
Can we customize the logos, colors, and technical specifications for our brand?
Absolutely. We provide comprehensive OEM and ODM services for global distributors and EPC contractors. You can customize the exterior enclosure branding (logo, colors, paint finishes), connector configurations, voltage profiles, and firmware communication protocols to strictly match your local market compliance.
What is the typical lead time and shipping method for bulk industrial orders?
The standard production lead time ranges from 15 to 35 days, depending on the order volume and technical customization depth. Due to the heavy-duty industrial nature and weight, we primary ship via sea freight (FOB/CIF) to global destination ports.
