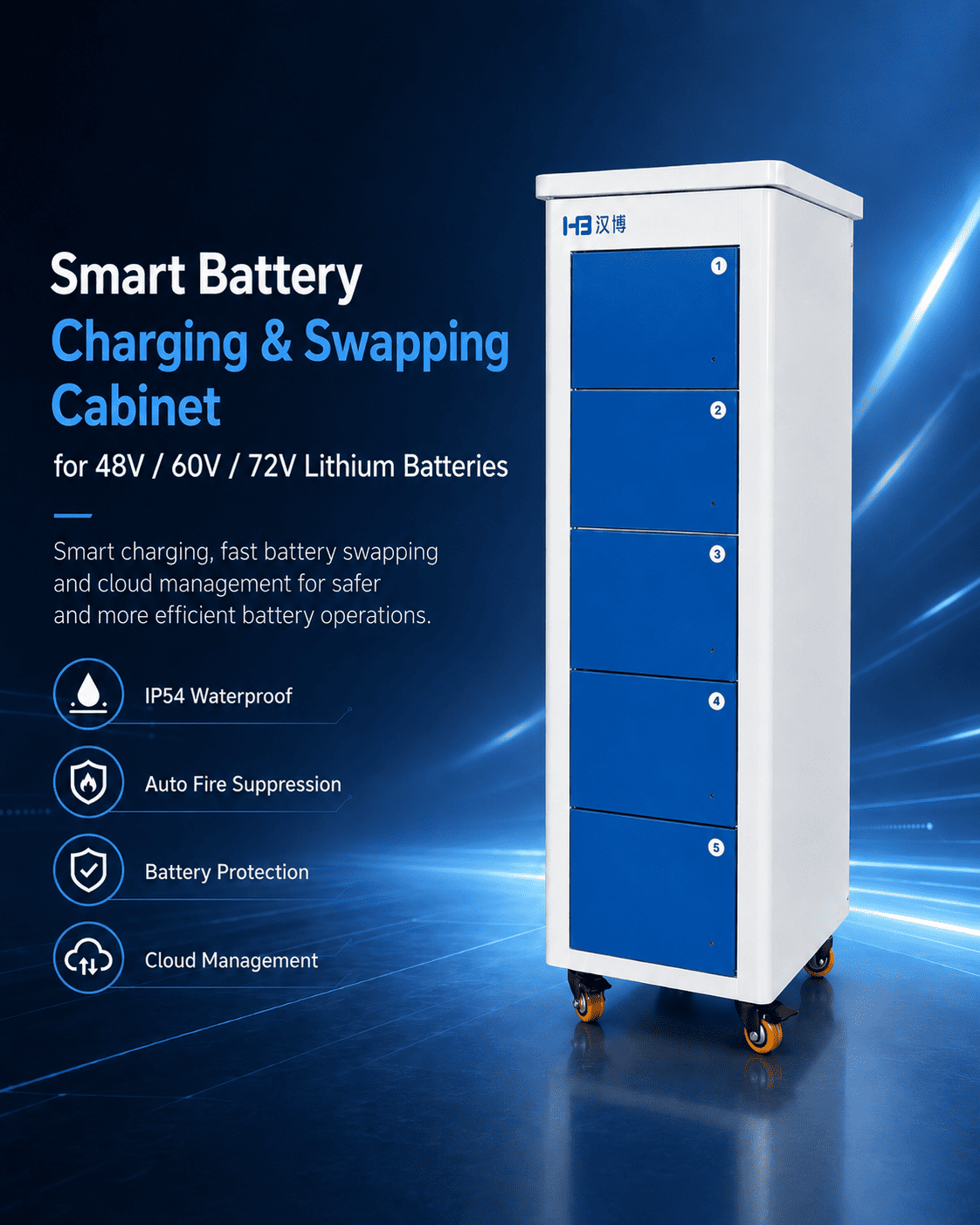

Commercial 5-Bay Smart Battery Swapping Station for Delivery Fleets
Description
This 5-bay smart battery swapping station is designed for delivery fleets, battery service providers and compact commercial swapping networks. Its small footprint makes it suitable for convenience stores, logistics points, street-side locations and micro-mobility startup projects.
The station supports 48V, 60V and 72V lithium batteries, with QR code swapping, automatic battery recognition, IP54 protection and cloud-based remote management. Configurations are available with 800W or 1200W charging power per compartment and RS485 or CAN communication.
12 Core Functions
Automatic Battery Recognition
Automatically identifies supported battery types and improves charging and swapping efficiency.
QR Code Battery Swapping
Users can scan a QR code for fast and convenient battery exchange.
Multiple Safety Protection
Built-in protection logic helps improve operational safety during charging and battery storage.
Real-Time Monitoring
Monitor cabinet status, charging condition, and battery information in real time.
Automatic Fire Suppression
Supports automatic fire suppression functions to reduce fire risk.
Remote Management
Operators can manage equipment and monitor data remotely.
Abnormal Warning
The system can send alerts for abnormal operating conditions.
Battery Positioning
Supports battery tracking and positioning management.
Low-Temperature Heating
Optional or configured low-temperature heating function for cold environments.
Remote Meter Reading
Supports remote power consumption and system data collection.
Battery Swapping During Power Outage
Supports battery exchange function even under specified power interruption scenarios.
Water Ingress Power Cut-Off
The system can cut off power when water ingress is detected, improving safety.
Multi-layer Safety Protection

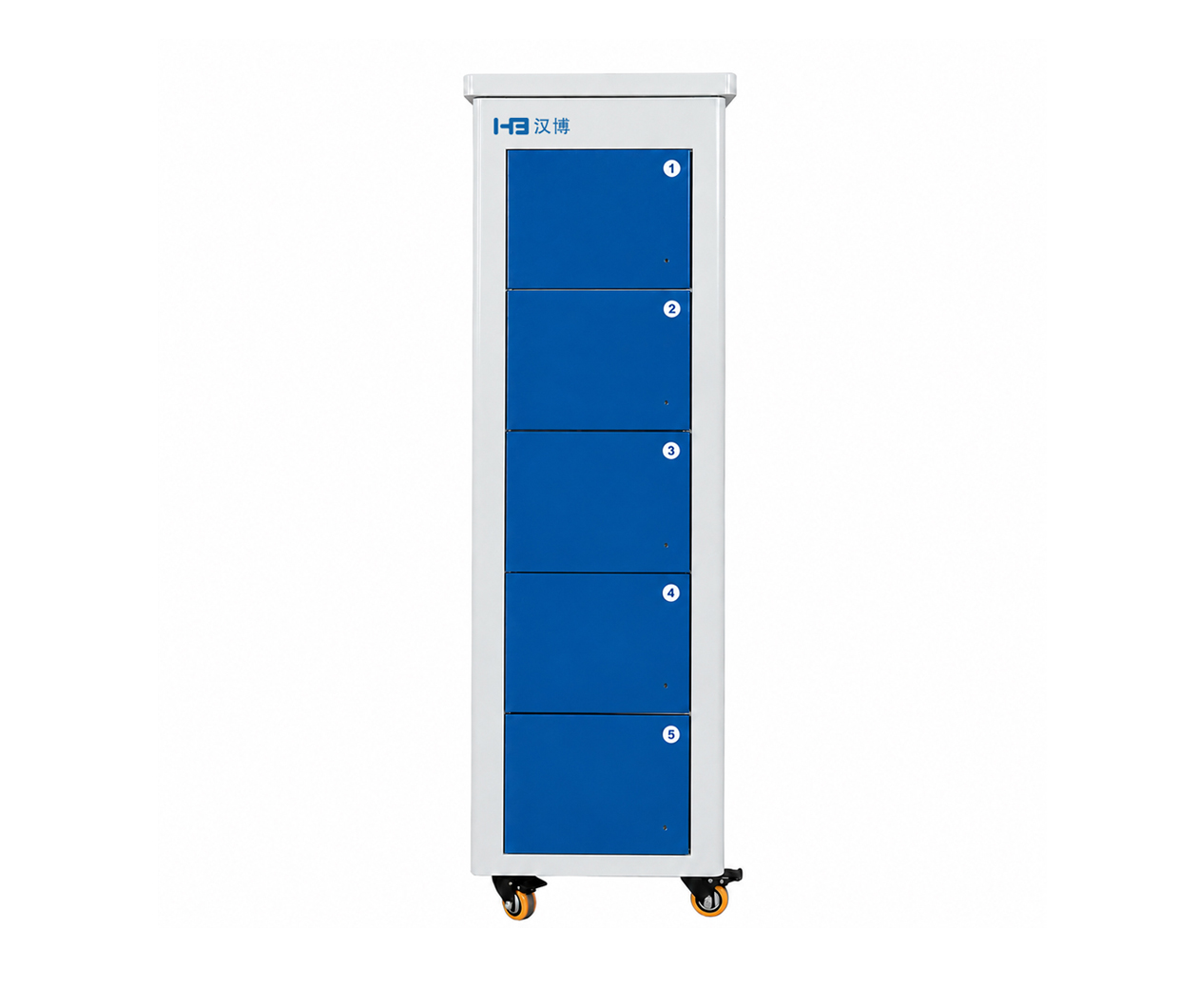

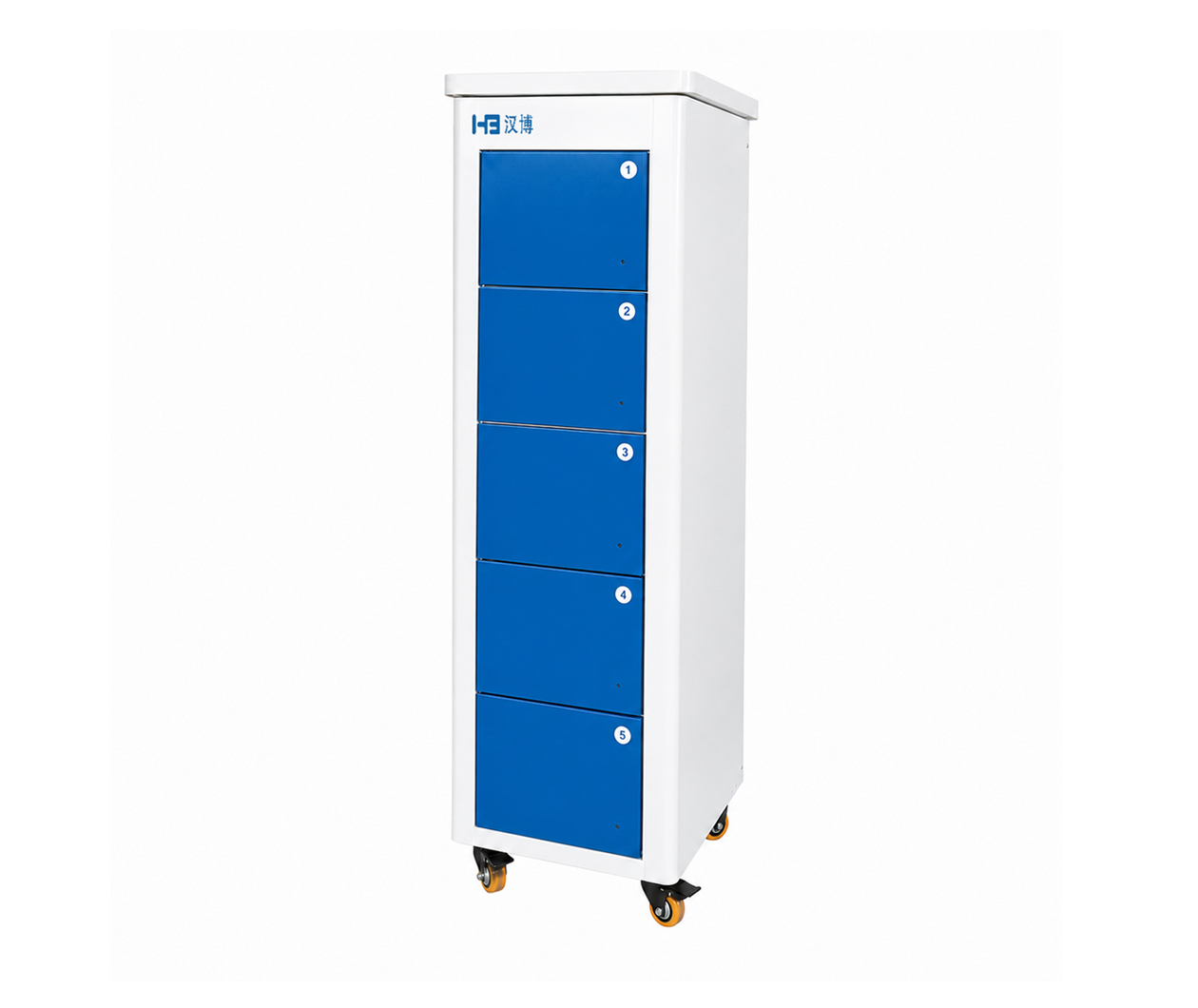

5-Bay Smart Battery Swapping Station Overview
Technical Specifications
The final electrical configuration should be selected according to the site power supply, number of simultaneously active ports, per-port output requirement, and local installation regulations.
| Parameter | Specification |
|---|---|
| Product Size | 495*540*1665mm |
| Max Power | 800W / 1200W per compartment |
| Charging Current | 10A / 15A fast charging |
| Input Voltage | 220Vac |
| Output Voltage | 40–88 Vdc |
| Operating Temperature | -20°C to 60°C |
| Waterproof Rating | IP54 |
| Standby Power | Less than 10W |
| Communication Protocol | RS485 or CAN |
| Charging Cable | 2+4 or 2+6 |
| Power Distribution | 220V, 4 mm² single-core wire |
| Material | Galvanized steel plate, fireproof and explosion-resistant |
| Application Environment | Indoor or outdoor (rainproof) |
| Supported Battery Types | Ternary lithium / Lithium iron phosphate |
| Supported Battery Voltage | 48V / 60V / 72V |
Independent Backend Management and User App
The system supports independent backend deployment and customizable software functions for battery cabinet operators, battery service providers, and platform projects.
Battery Swap Process
ODM/OEM Customization
The cabinet supports different appearance designs, compartment layouts, system functions, and deployment solutions according to customer requirements.
Custom Design
Cabinet structure and layout can be developed according to project requirements.
OEM / ODM Manufacturing
Supports manufacturing based on customer drawings and design concepts.
Light Customization
Branding, panel color, logo printing, and software interface customization are available.
Deep Customization
Supports more advanced hardware and software customization for large projects.
Contact our team for 5-Bay Smart Battery Swapping Station pricing, availability, shipping details and commercial project support.
FAQs
Are you a direct manufacturer or a trading company?
We are a certified, direct industrial manufacturer based in Wuxi, China. We own and operate our state-of-the-art production lines, allowing us to supply high-quality equipment directly to international buyers with factory-direct pricing, strict quality control, and full OEM/ODM customization capabilities.
Can we customize the logos, colors, and technical specifications for our brand?
Absolutely. We provide comprehensive OEM and ODM services for global distributors and EPC contractors. You can customize the exterior enclosure branding (logo, colors, paint finishes), connector configurations, voltage profiles, and firmware communication protocols to strictly match your local market compliance.
What is the typical lead time and shipping method for bulk industrial orders?
The standard production lead time ranges from 15 to 35 days, depending on the order volume and technical customization depth. Due to the heavy-duty industrial nature and weight, we primary ship via sea freight (FOB/CIF) to global destination ports.
How do I choose between the 5-Bay, 8-Bay, 10-Bay, and 12-Bay swapping cabinet?
Choice depends on your location's traffic density and budget:
- 5-Bay / 8-Bay: Compact, light-asset options with small grid footprints. Perfect for convenience stores, street corners, or personal micro-mobility startup projects.
- 10-Bay / 12-Bay: Flagship commercial scale hubs optimized with "N+1" or "N+2" charging redundancy. Built for heavy-traffic last-mile delivery hubs (e.g., UberEats, Grab riders) to sustain high-frequency 5-second swaps during rush hours.

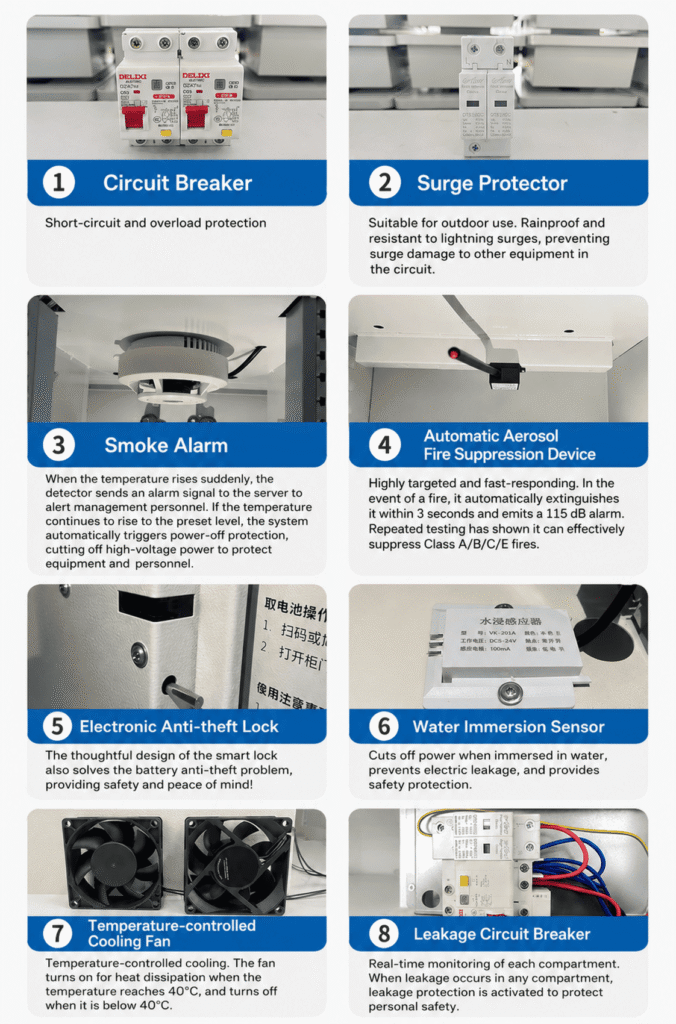

Battery safety is a huge concern. How does your swapping cabinet prevent fire hazards?
Safety is our top priority. Our cabinets feature a Multi-Tier Safety Shield:
- Isolated Thermal Defense: Each slot runs with individual temperature sensors and automated extraction fans to stop heat localization.
- Built-in Active Fire Suppression: Every bay is physically isolated and equipped with its own dedicated automatic aerosol or liquid fire extinguishing device to instantly neutralize thermal runaway at the root.
- 8-12 Layer Electrical Defenses: Hardware safeguards against overcharging, short-circuits, voltage surges, and grounding leakage.
Can your cabinets adapt to our local e-scooter battery sizes and voltage protocols?
Yes, our hardware is universally scalable. We offer flexible customization for battery dimensions, physical dock connectors, localized communication protocols, and voltage platforms running from 48V to 72V.
